Feature

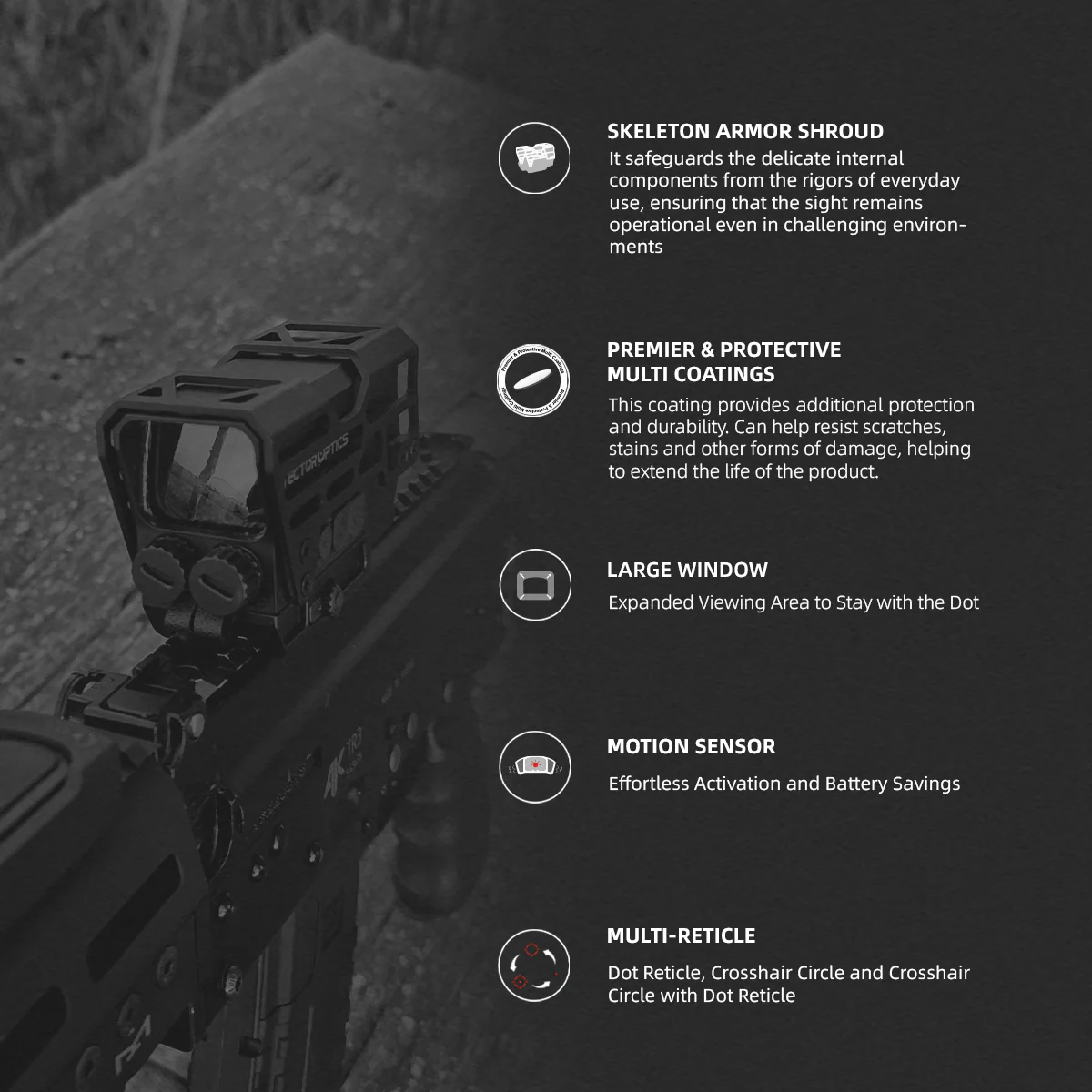

· Multi Reticle Options: 3 MOA Dot w/ Circle for Diverse Shooting Scenarios and Improved Target Engagement Across Different Ranges

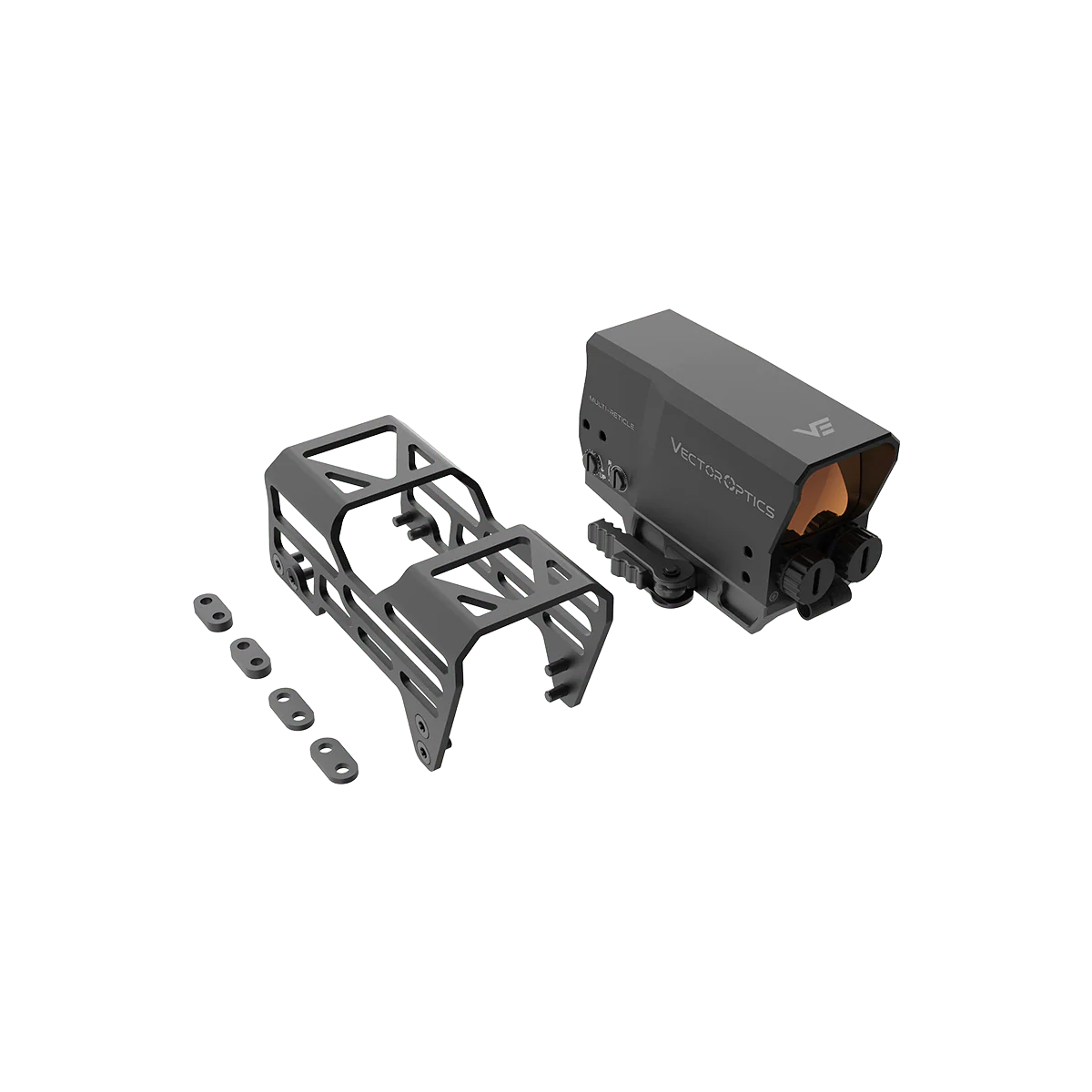

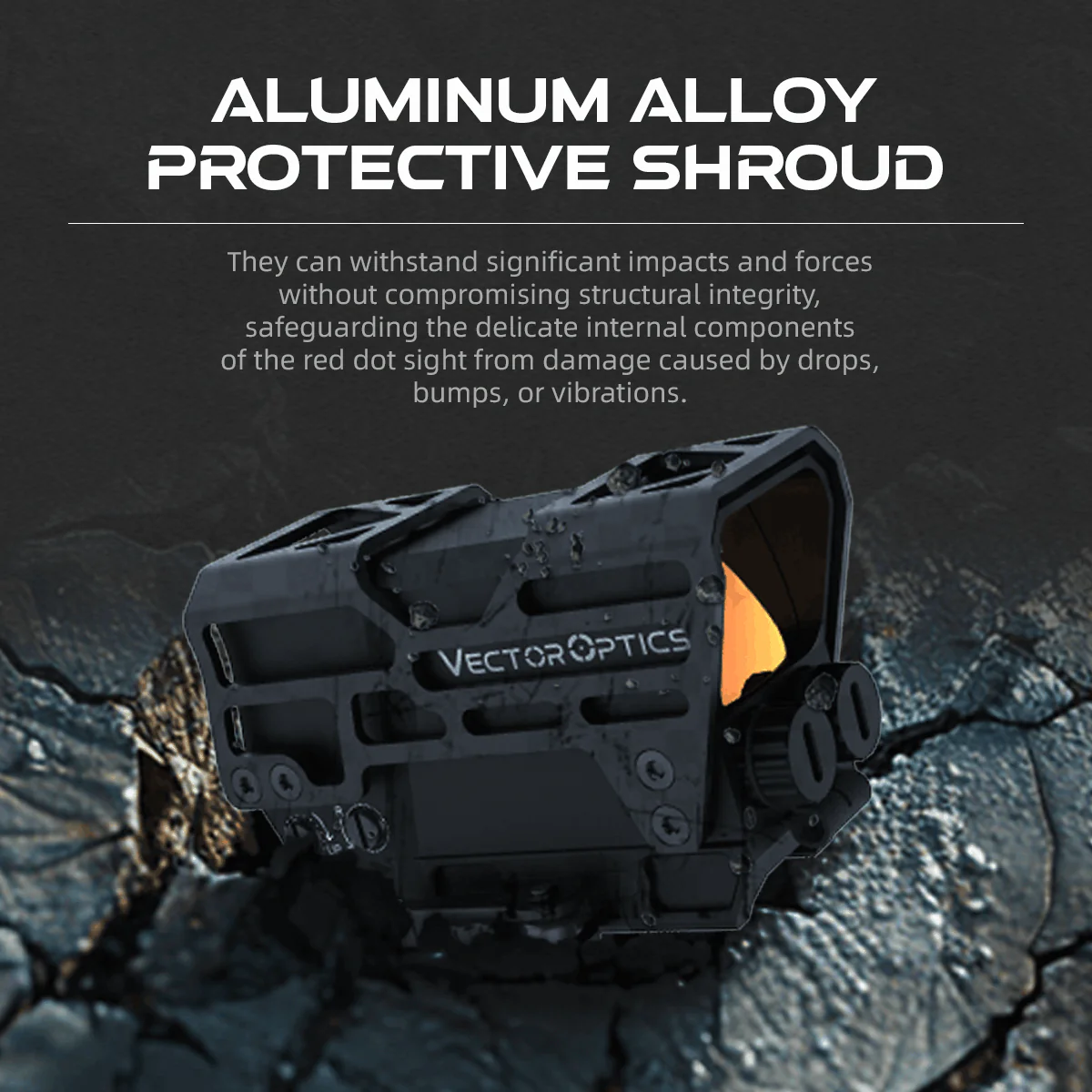

· Protective Shroud Design: Removable Design Provides Added Protection Against Scratches, Drops, and Everyday Handling Wear

· All Light Versatility: 9 Red Illumination Levels w/ 2 Night Vision Modes for Reliable Day and Night Use in Changing Lighting Conditions

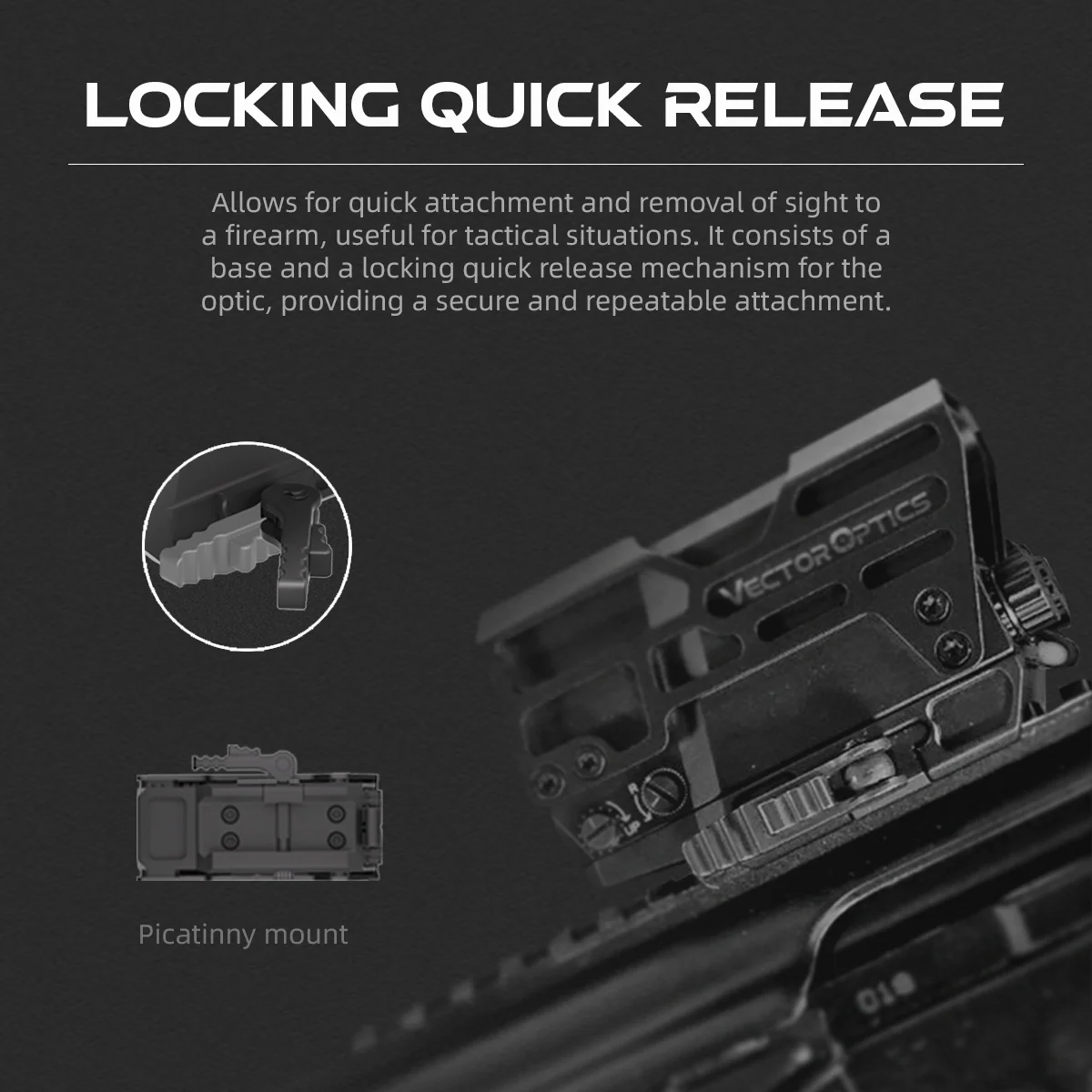

· Quick Mount System: Quick Detach Picatinny Mount Enables Fast Installation and Easy Removal for Flexible Use in Field Conditions

· All Weather Durability: IP67 Waterproof Rating, 1 Meter for 30 Minutes, Backed by T-VIP Lifetime Warranty for Long Term Reliability

Specification

See our Terminology Guide for detailed explanations of each specification.

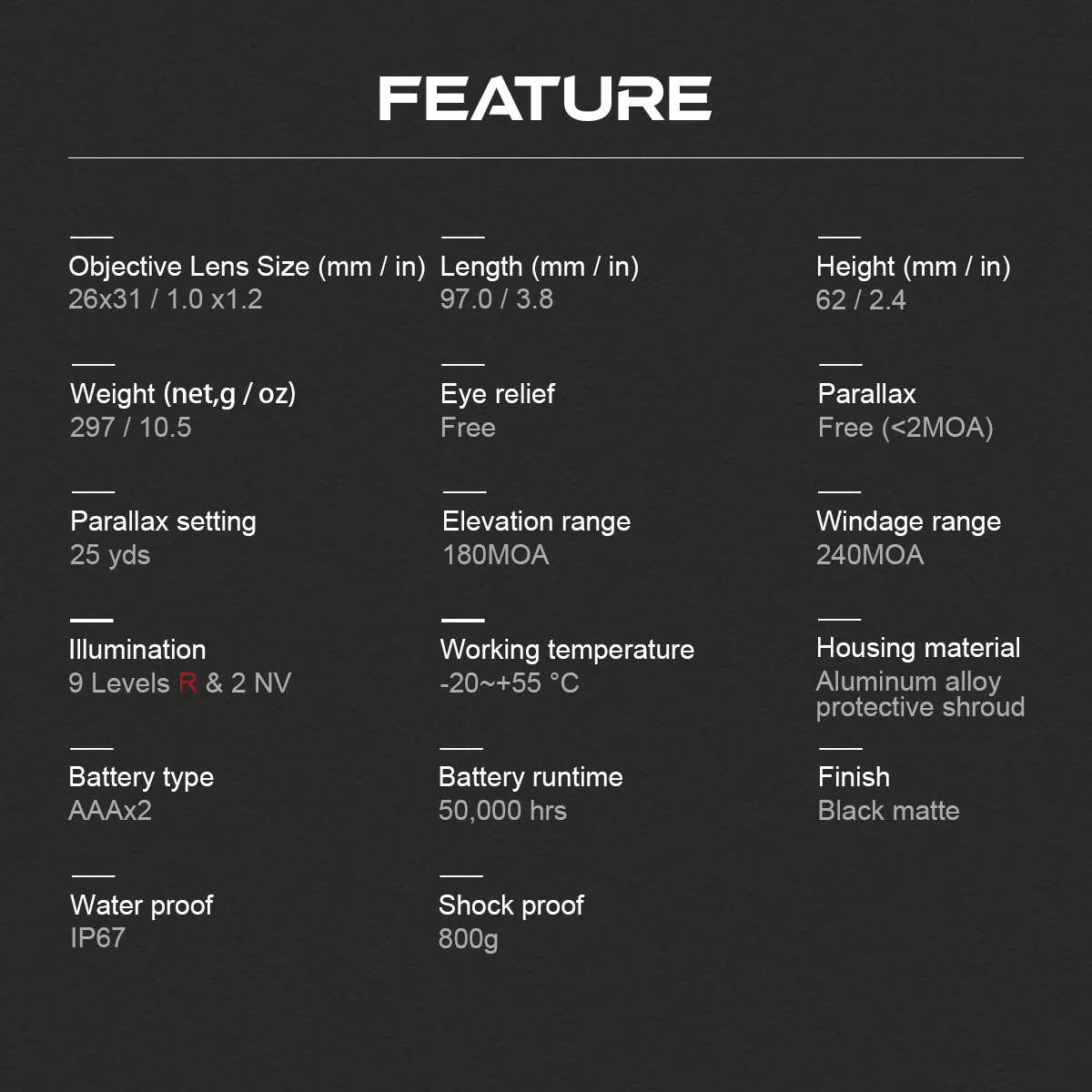

Specification	Details
Magnification:	N/A

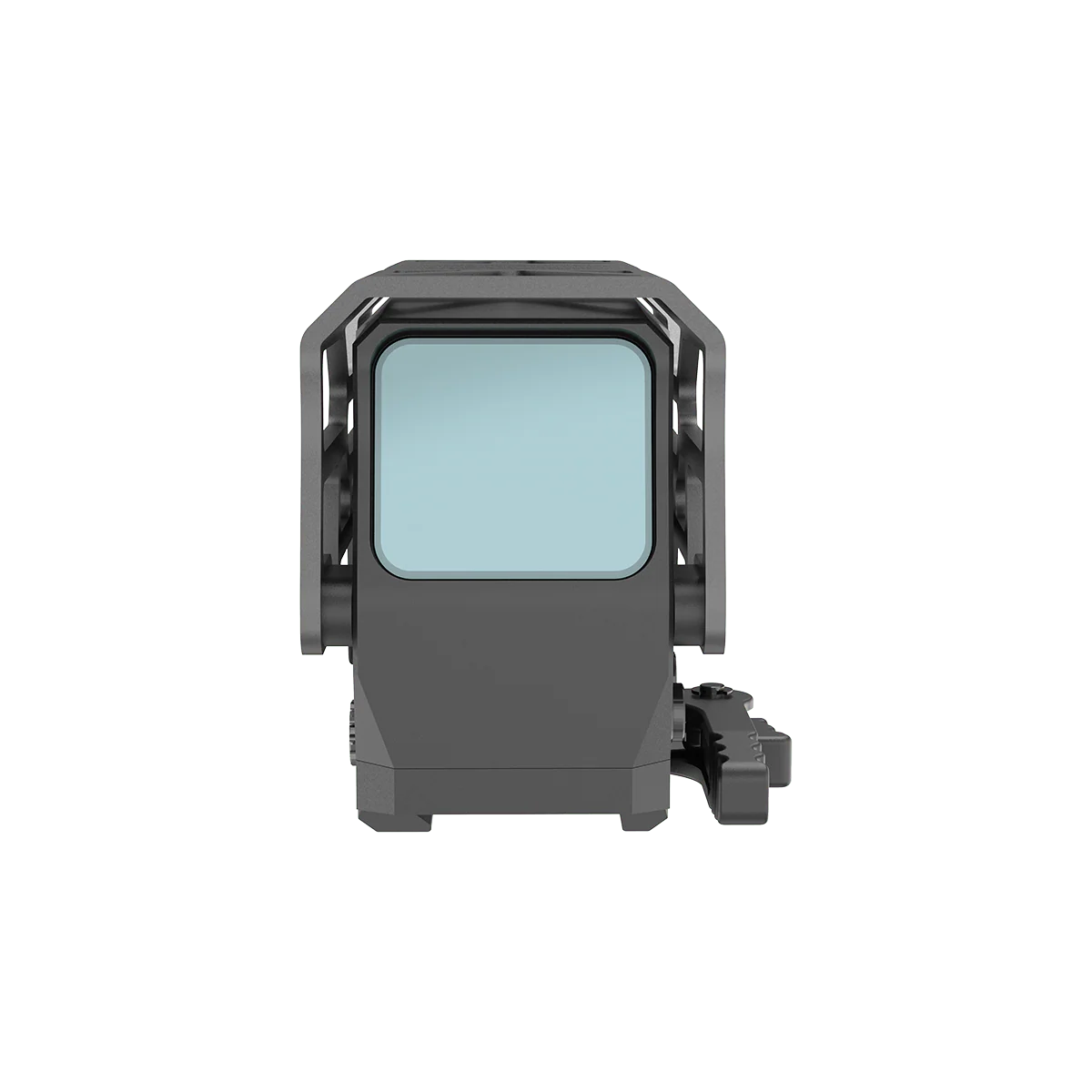

Window Lens Size:	26x31 mm / 1.02 x1.22 in
Parallax:	Free (<2 MOA)
Dot Size:	2 MOA Dot with Circle, Crosshair
Sensor:	Motion Sensor
Click Value:	1 MOA
Elevation Adjustment Range:	180 MOA
Windage Adjustment Range:	240 MOA
Footprint:	N/A
Mounting Rail:	Picatinny
Illumination Setting:	9 Daylight & 2 Night Vision
Battery Type (Not Include):	AAAx2
Battery Life:	50,000 Hours
Battery Placement:	Front
Waterproof:	IP67
Shockproof:	800 G
Working Temperature:	-20~+55 °C
Finish:	Black Matte
Weight(net):	297 g / 10.5 oz (with mount)
Items in the Package:	Aluminum Alloy Protective Shroud

Night Vision Mode Instructions

1. Press the night vision button to enter NV mode and switch between illumination intensities.

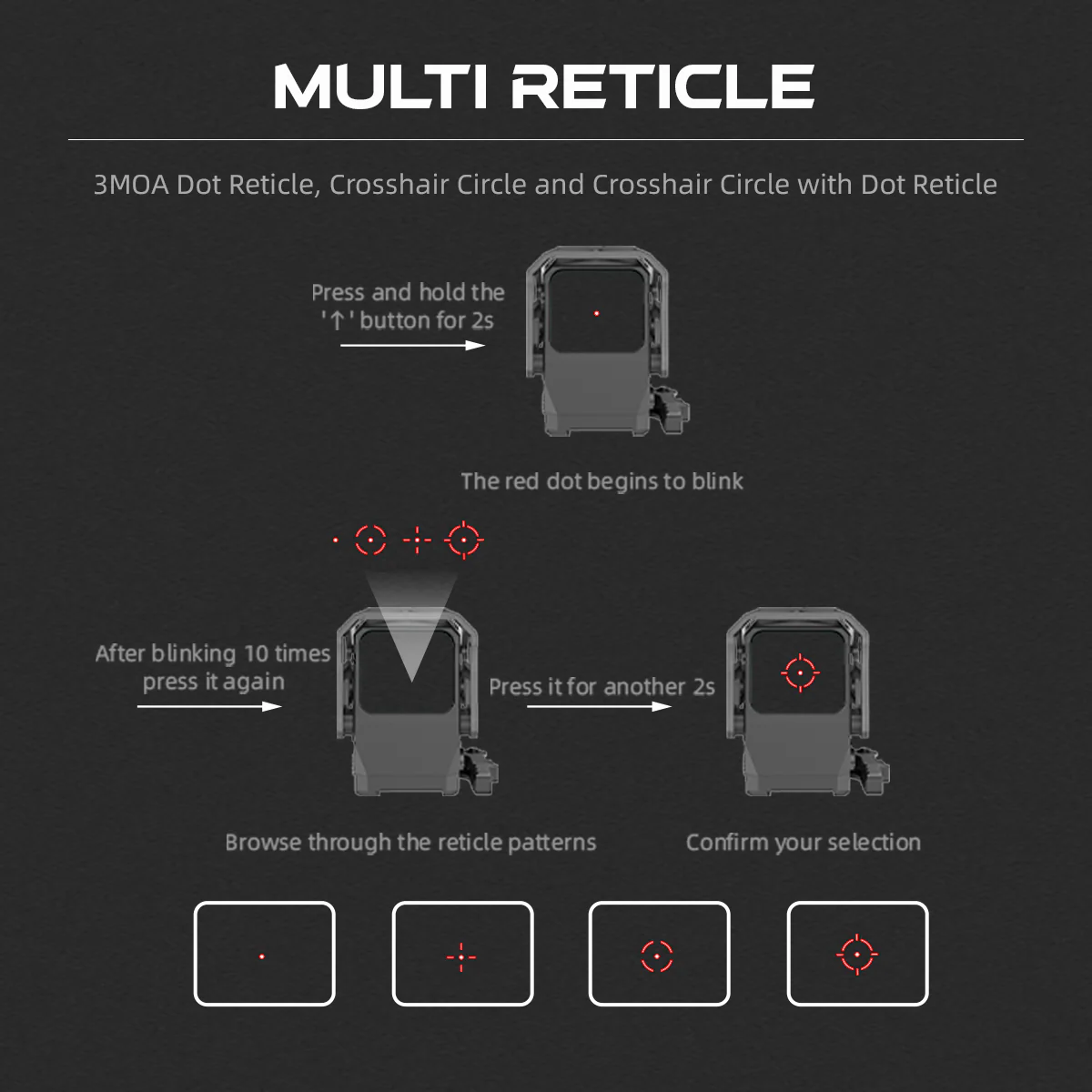

2. Press and hold the “+” button for 2 seconds to change the reticle. Press and hold the “+” button again for 2 seconds to fix the selected reticle.

3. To exit NV mode, press and hold the NV button for two seconds.
