Extra Large Window | Frenzy Plus 1x31x26 SOL Solar Power Red Dot Sight (SCRD-S67) | for AR15/M4 & PCC
Extra Large Window | Frenzy Plus 1x31x26 SOL Solar Power Red Dot Sight (SCRD-S67) | for AR15/M4 & PCC
Feature
· Precision Aiming Balance: 3 MOA Dot Size Balances Fast Acquisition and Precise Accuracy for Close to Medium Distances Engagements

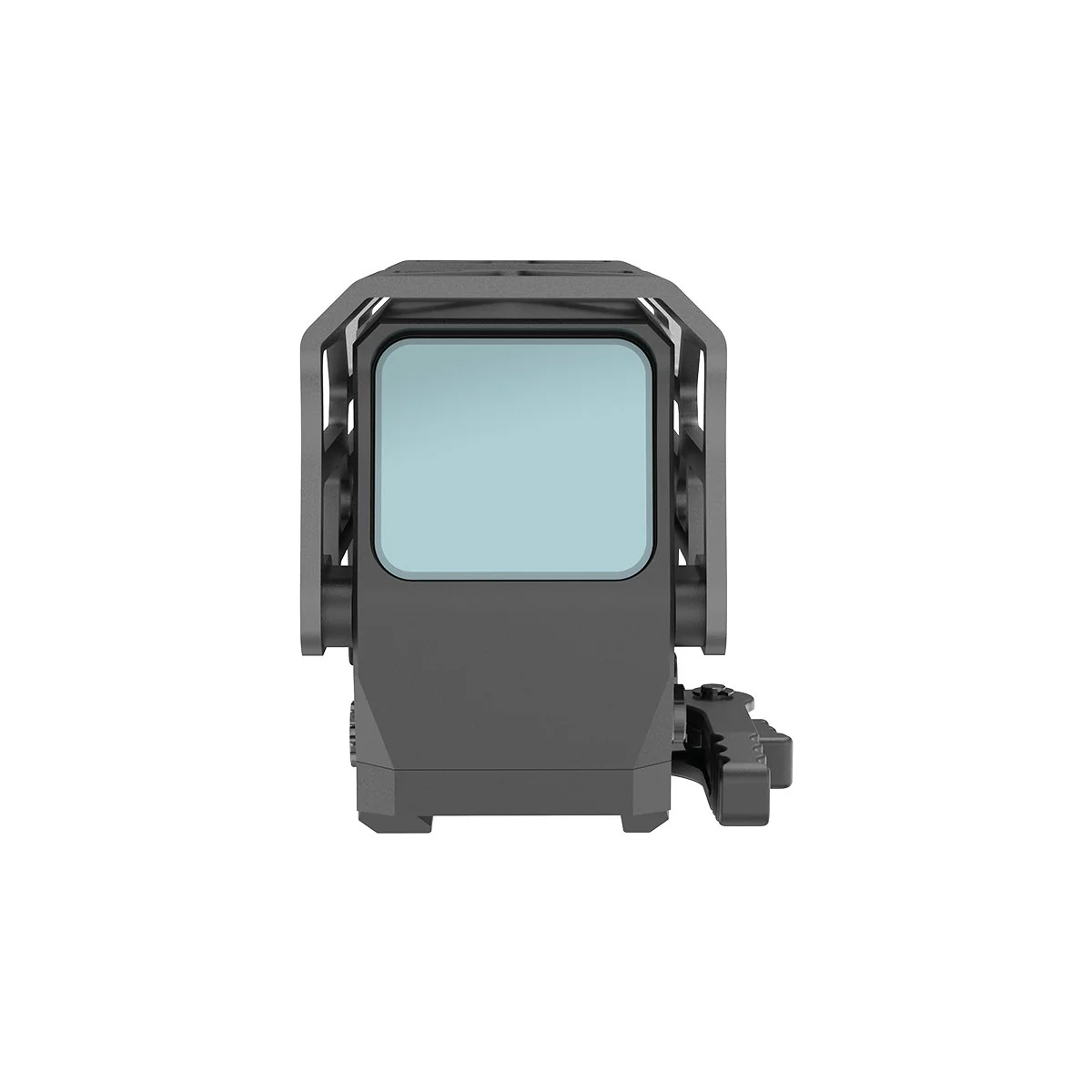

· Wide Field Visibility: 26 × 31 mm (1.02 × 1.22 in) Large Window Maintains Bright and Clear Field of View for Continuous Target Tracking
· All Light Power: 9 Red Illumination Levels with 2 NV Modes and Solar Backup Ensures Continuous Operation in Competition Use

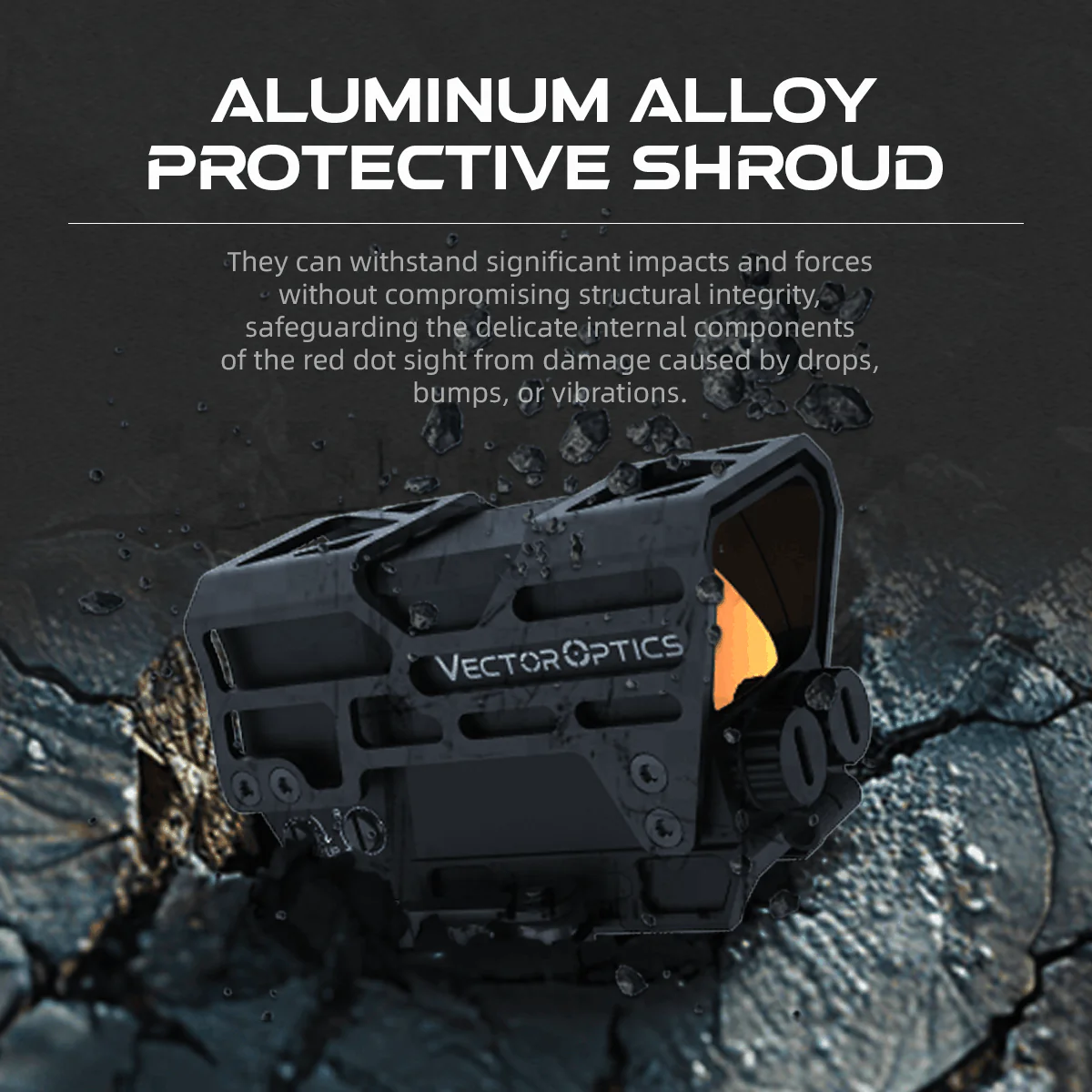

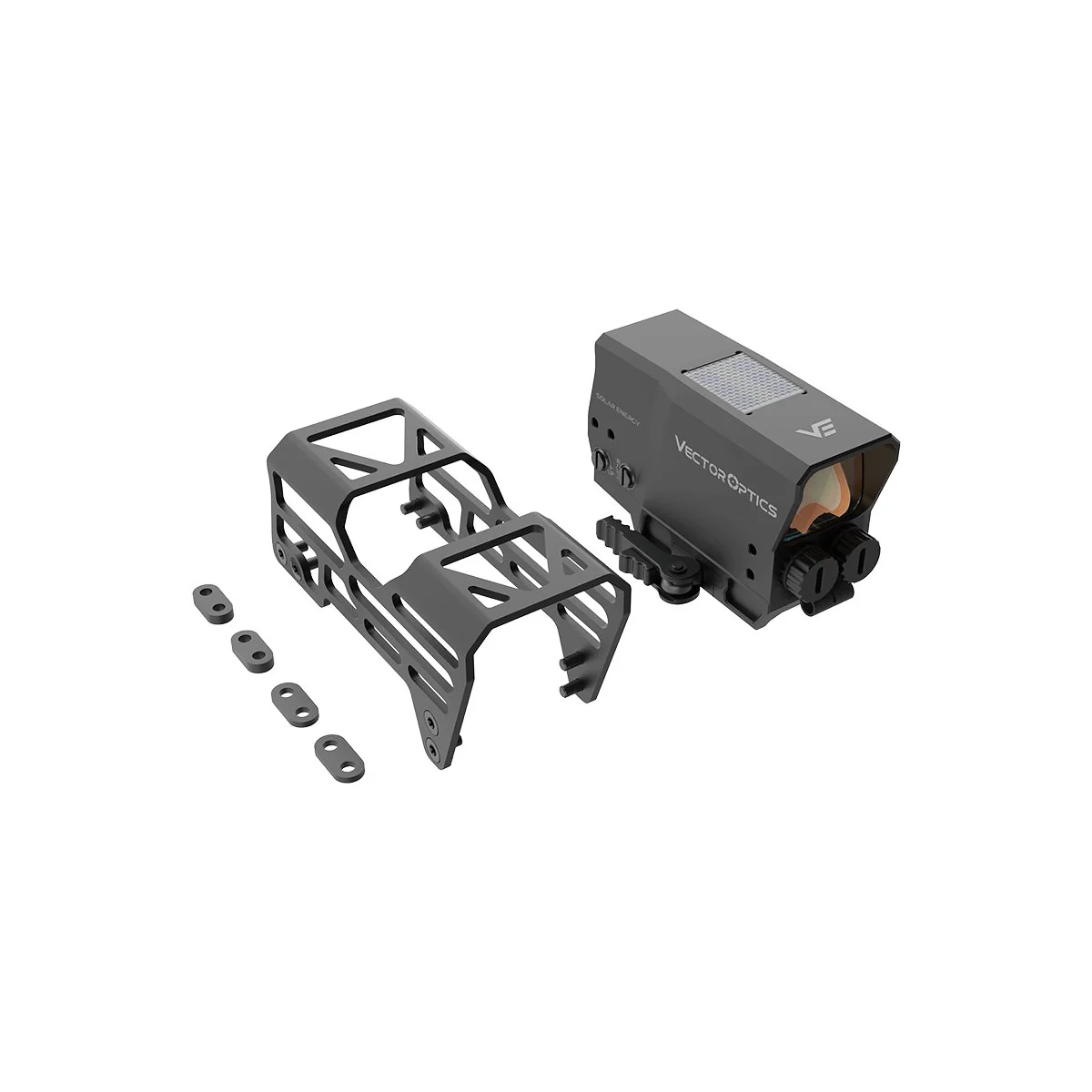

· Rugged Protection Design: IP67 Waterproof Rating w/ Removable Protective Shroud Shields Against Impact Damage and Surface Scratches

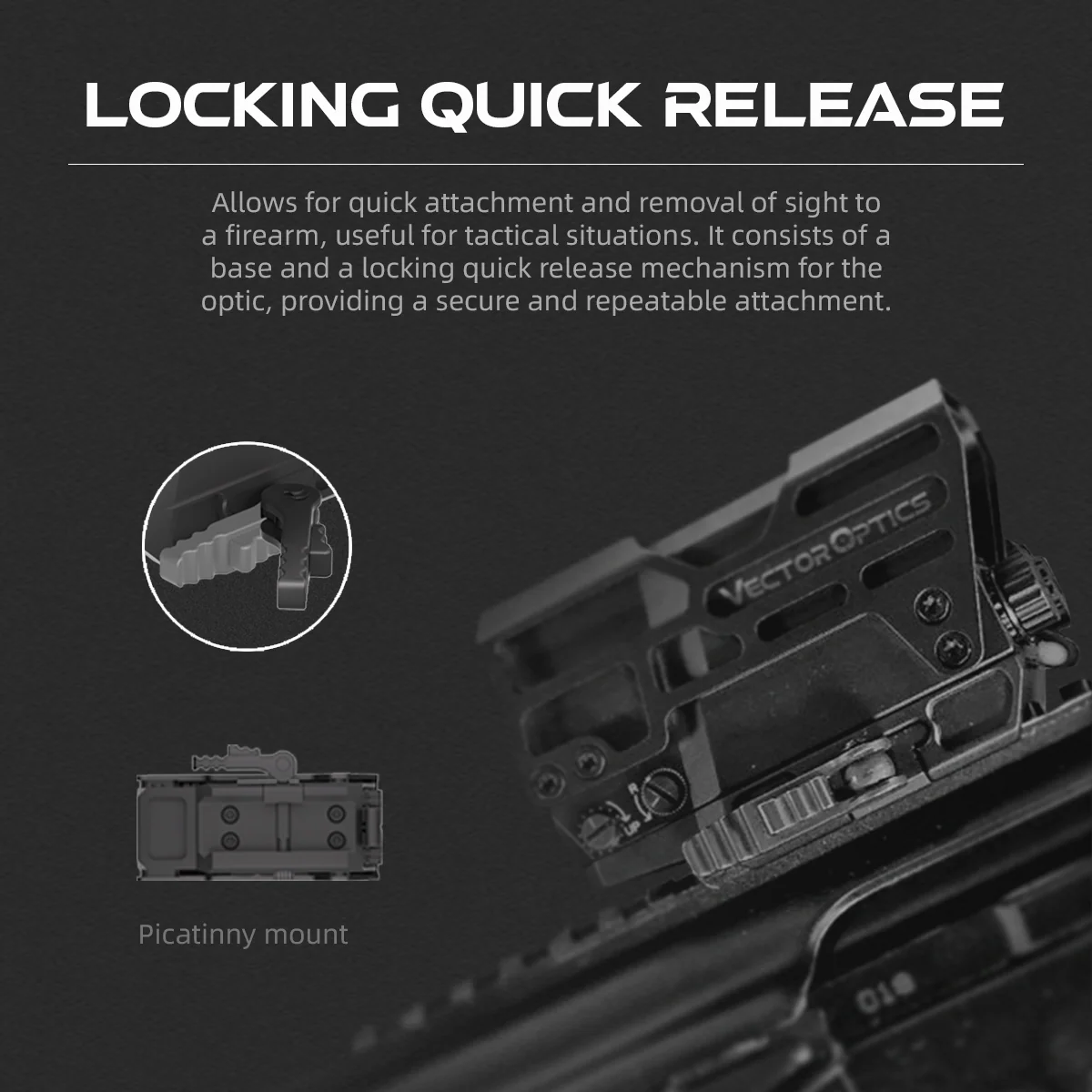

· Quick Mount System: Tool-Free Picatinny Mount Allows Fast Installation and Seamless Removal in Field Conditions with Various Setup
Specification
See our Terminology Guide for detailed explanations of each specification.
| Specification | Details |
|---|---|
| Magnification: | N/A |
| Window Lens Size: | 26x31 mm / 1.02x1.22 in |
| Parallax: | Free (<2MOA) |
| Parallax Setting: | N/A |
| Dot Size/ Reticle: | 3 MOA Dot |
| Dot/ Reticle Color: | Red |
| Sensor: | Motion Sensor |
| Click Value: | 1/2 MOA |
| Elevation Adjustment Range: | 190 MOA |
| Windage Adjustment Range: | 200 MOA |
| Footprint: | N/A |
| Mounting Rail: | Weaver |
| Illumination Setting: | 9 Daylight & 2 Night Vision |
| Battery Type (Not Include): | AAAx2 |
| Battery Life: | Up to 50,000 Hours |
| Battery Placement: | Front |
| Waterproof: | IP67 |
| Shockproof: | 800 G |
| Working Temperature: | -20~+55° C |
| Housing Material: | 7075-T6 Aluminum Alloy |
| Mount Material: | 7075-T6 Aluminum Alloy |
| Finish: | Matte Black |
| Weight (Net): | 297 g / 10.5 oz |
| Items in the Package: | Aluminum Alloy Protective Shroud, Vekey, User Manual, Cleaning Cloth, etc. |
How to Use

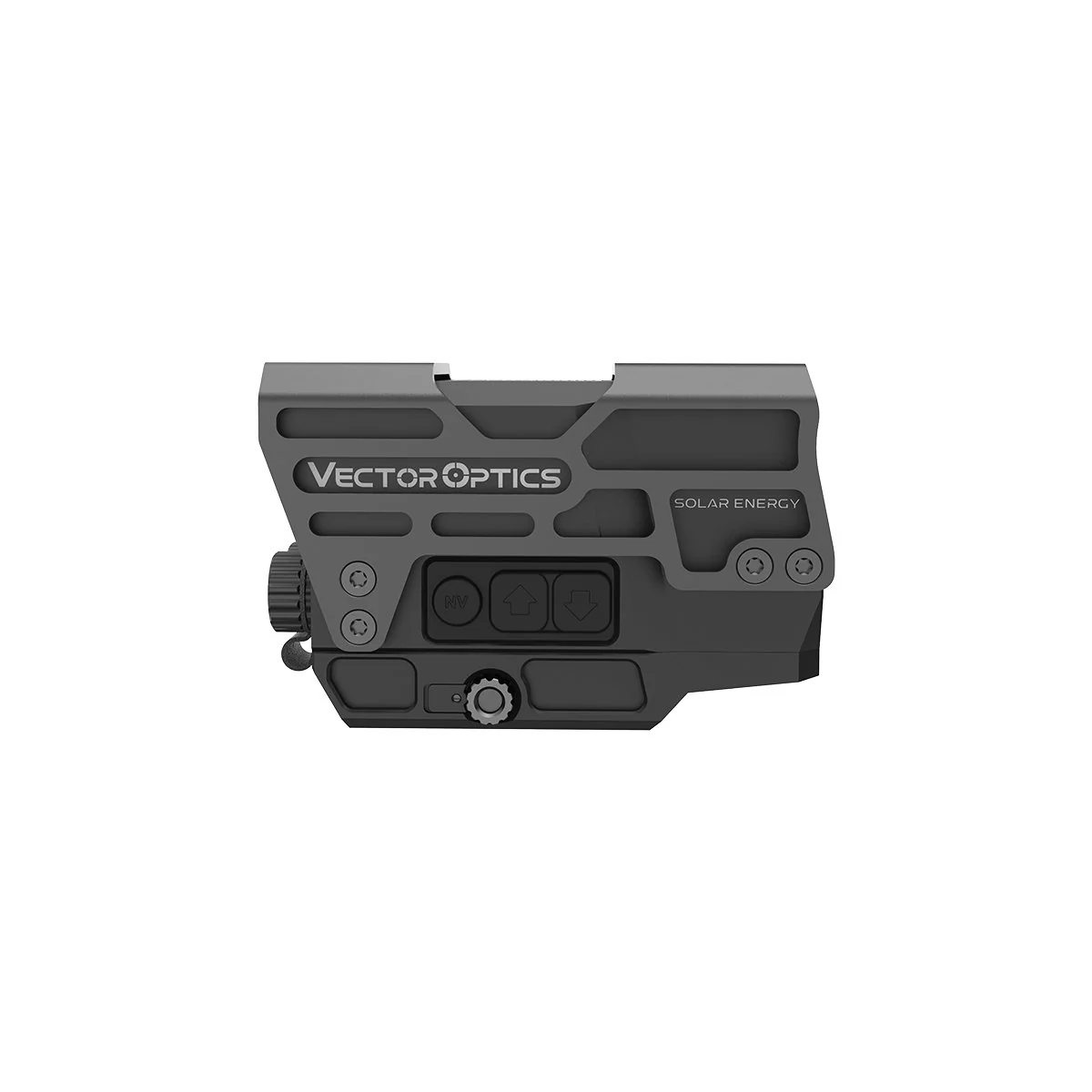

1. Press any Arrow button to turn on red dot sight.
2. Use Arrow button to adjust illumination intensities. The red dot will flicker three times if pressing the Up-Arrow button at the highest illumination setting.
3. Press NV button to enter night visiom mode. Switch between two gears by pressing the Arrow button. Press and hold NV button for 2 seconds to exit NV mode.

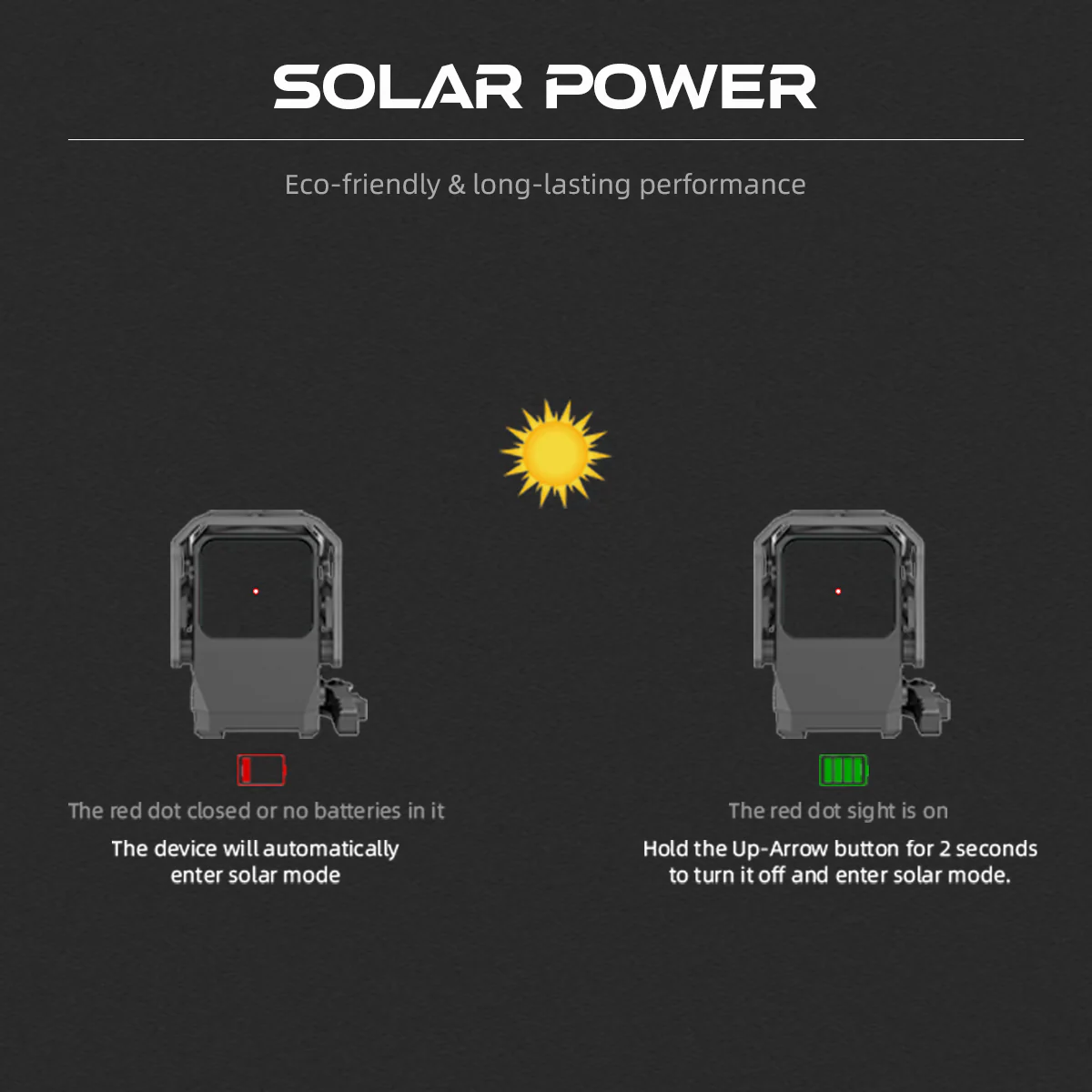

4. To enter solar mode: The device will automatically enter solar mode when closed or no batteries in it. When the red dot sight is on: Press and hold the Up-Arrow button for 2 seconds to turn it off and enter solar mode.
5. Press and hold Down-Arrow for 2 seconds to turn off red dot sight.
