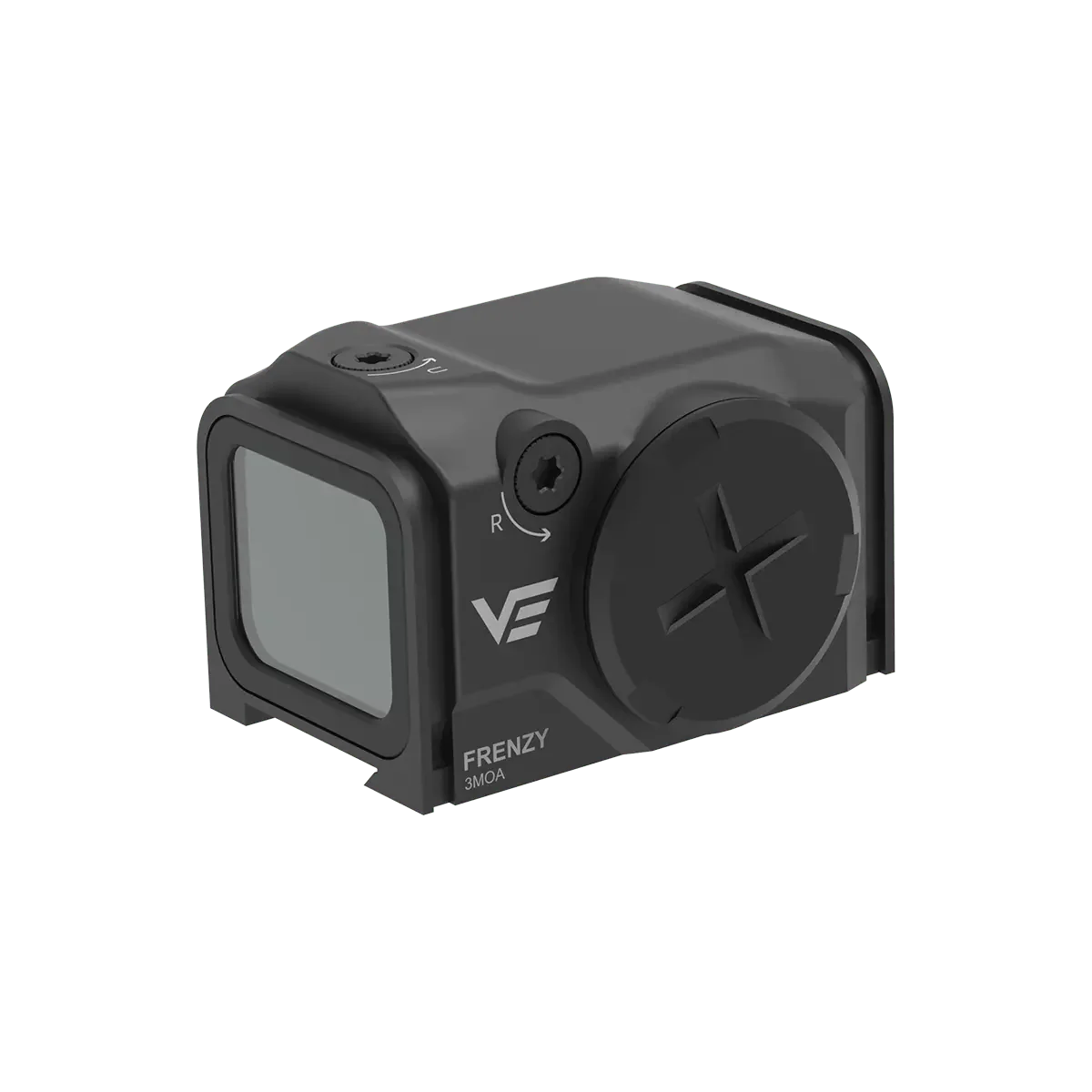

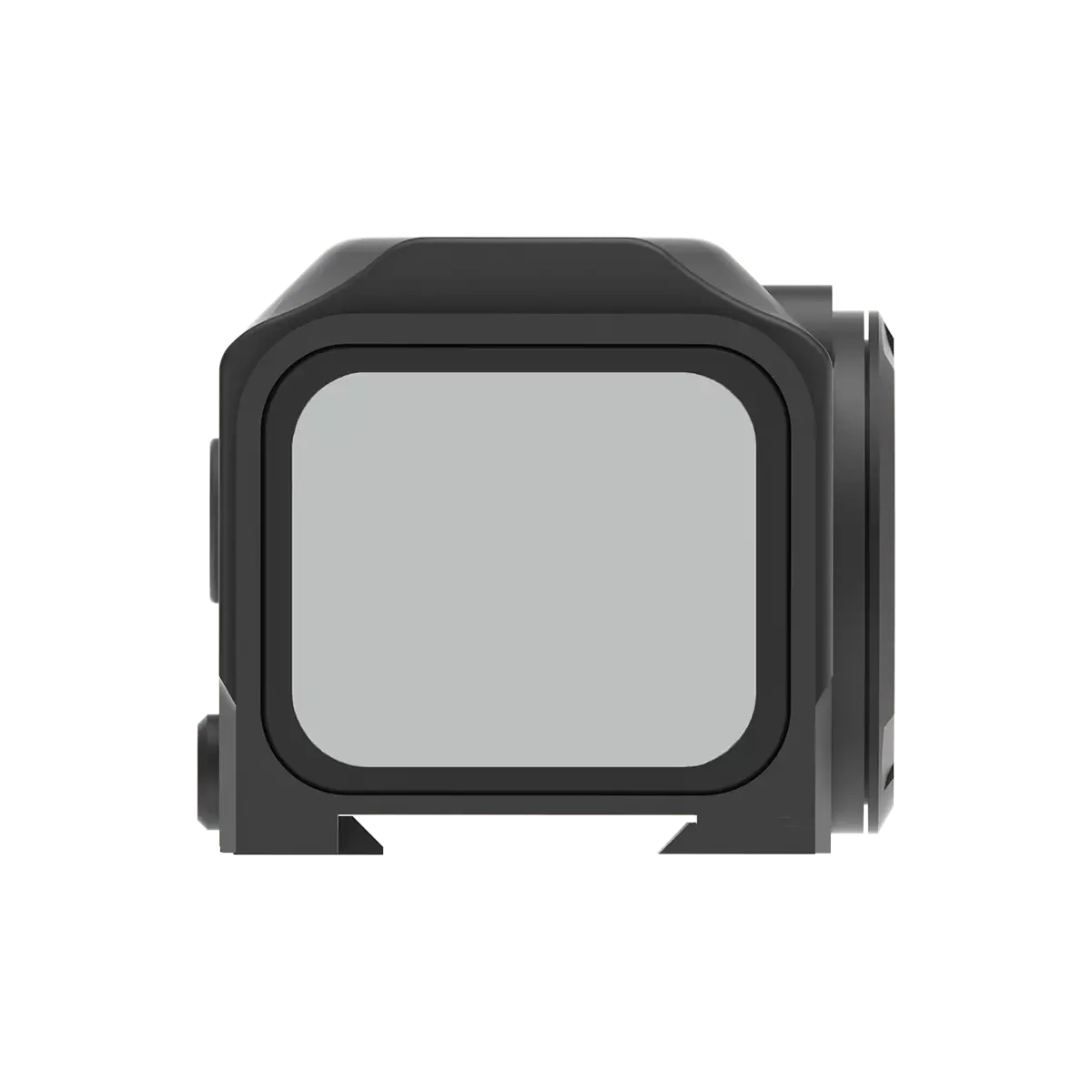

For AR Platform PCC | Frenzy FA 1x18x22 Enclosed Red Dot Sight (SCRD-75)
Feature
· There are two combinations that can be compatible with AR15: SCRA-77 + SCRA-VOD1 + SCRD-75 / SCFRM-15 + SCRD-75
· Wide Narrow Frame for Faster Aim: Maximized Field of View Delivers Unobstructed Sight Picture and Supports Intuitive Target Acquisition
· Rugged All-Weather Reliability: IP67 Waterproof and Dustproof Structure Maintains Stable Performance in Harsh Outdoor Conditions
· Ultra-Light Precision Control: 64g (2.26 oz) 7075-T6 Aluminum Build Reduces Carry Weight while 3MOA Dot Keeps Targets Clear Past 50m
· Recoil-Ready Firearm Compatibility: 1500G Shockproof Design Handles Recoil from 9mm Pistols while Maintaining Zero Stability
· Adaptive All-Light Smart Targeting: 9-Levels w/ 2 NV Modes and Motion Sensor Auto On/Off Adjusts to Changing Light and Saves Battery
· Modular Platform Compatibility: VOD Footprint Compatible with the ACRO® Standard, Fits Ruger PCC and AR-15 w/ Additional Adapters
Specification
See our Terminology Guide for detailed explanations of each specification.
| Specification | Details |
|---|---|
| Magnification: | N/A |
| Objective Lens Dia: | 18x22 mm / 0.71x0.87 in |
| Parallax: | Free (<2MOA) |
| Parallax Setting: | 50 yards |
| Reticle: | N/A |
| Dot Size: | 3 MOA |
| Dot/ Reticle Color: | Red |
| Sensor: | Motion Sensor |
| Click Value: | 1 MOA |
| Elevation Adjustment Range: | >100 MOA |
| Windage Adjustment Range: | >100 MOA |
| Footprint: | VOD |
| Mounting Rail: | N/A |
| Illumination Setting: | 9 Daylight + 2 Night Vision |
| Battery Type (Not Include): | CR2032 (NOT INCLUDE) |
| Battery Life: | Up to 50,000 hours |
| Housing Material: | 7075-T6 Aluminum Alloy |
| Mount Material: | N/A |

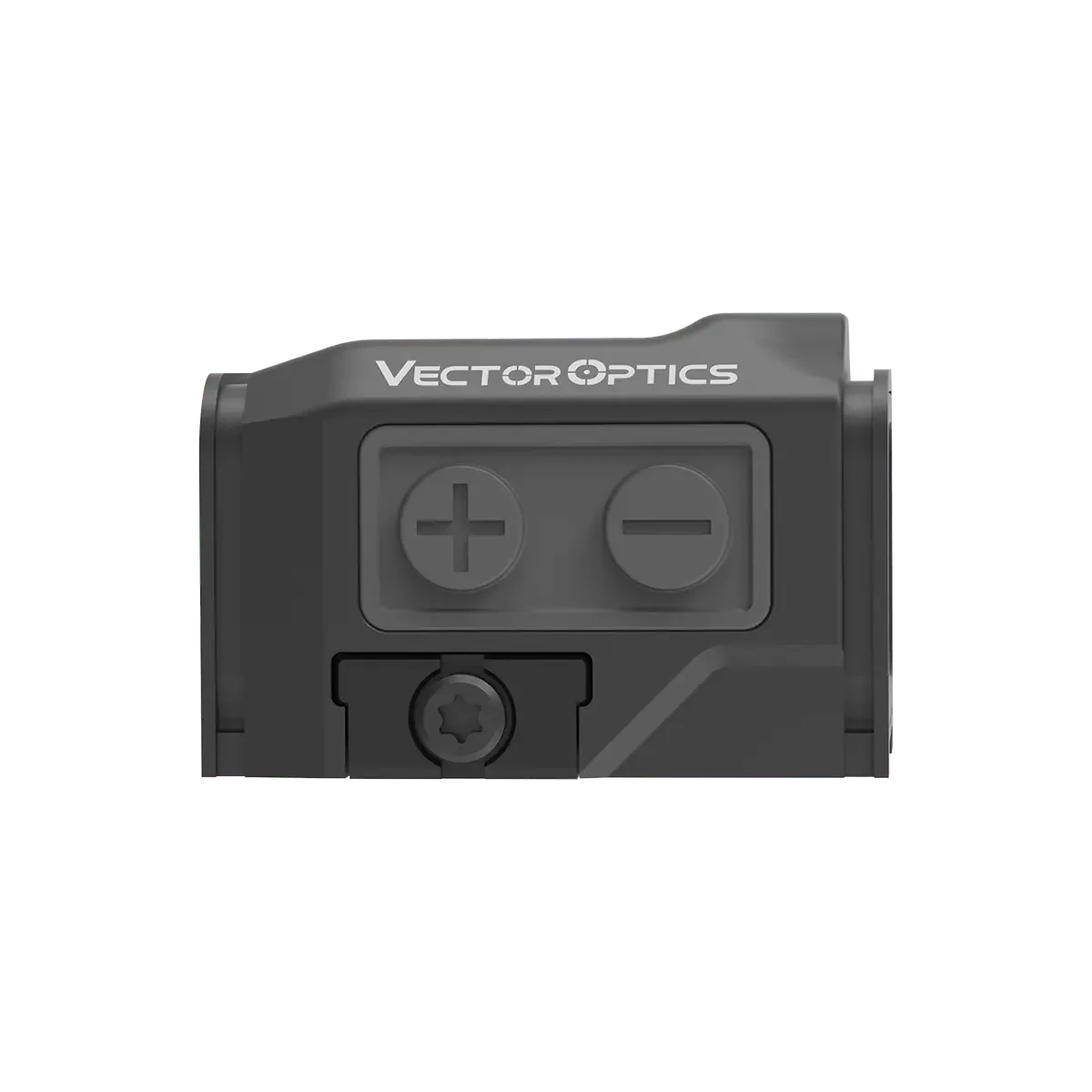

| Battery Placement: | Right |
| Waterproof: | IP67 |
| Shockproof: | 1500 G |
| Working Temperature: | -20~+60° C |
| Finish: | Matte Black |
| Weight (Net): | 64 g / 2.26 oz |

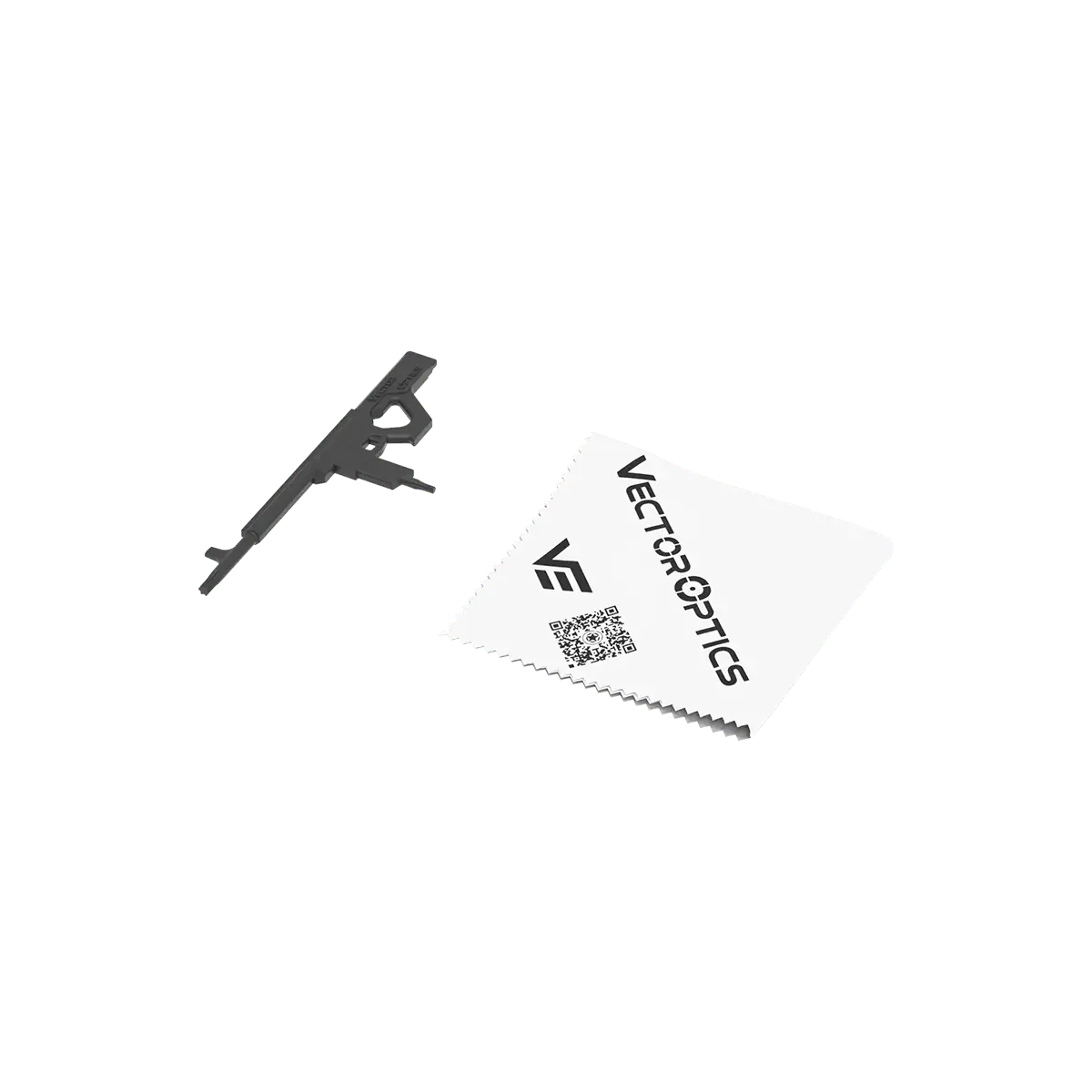

| Items in the Package: | User Manual, Retail Package, Cleaning Cloth, and Vekey etc |
Size
Footprint
VOD Footprint
· Compatible Industry Standard: ACRO®
· The following additional adapters are currently required for compatible gun models:
SCFRM-12 MOS to VOD Adapter,
SCFRM-13 MOJ/RMR to VOD Adapter,
SCFRM-14 VOD Red Dot Low Weaver Mount,
SCFRM-15 VOD Red Dot Riser Weaver Mount,
SCFRM-17 VOD Red Dot Low Dovetail Mount,
SCFRM-18 CZ SP-75 / Shadow 2 VOD Adapter.
For more information about FOOTPRINT, please refer to the blog.

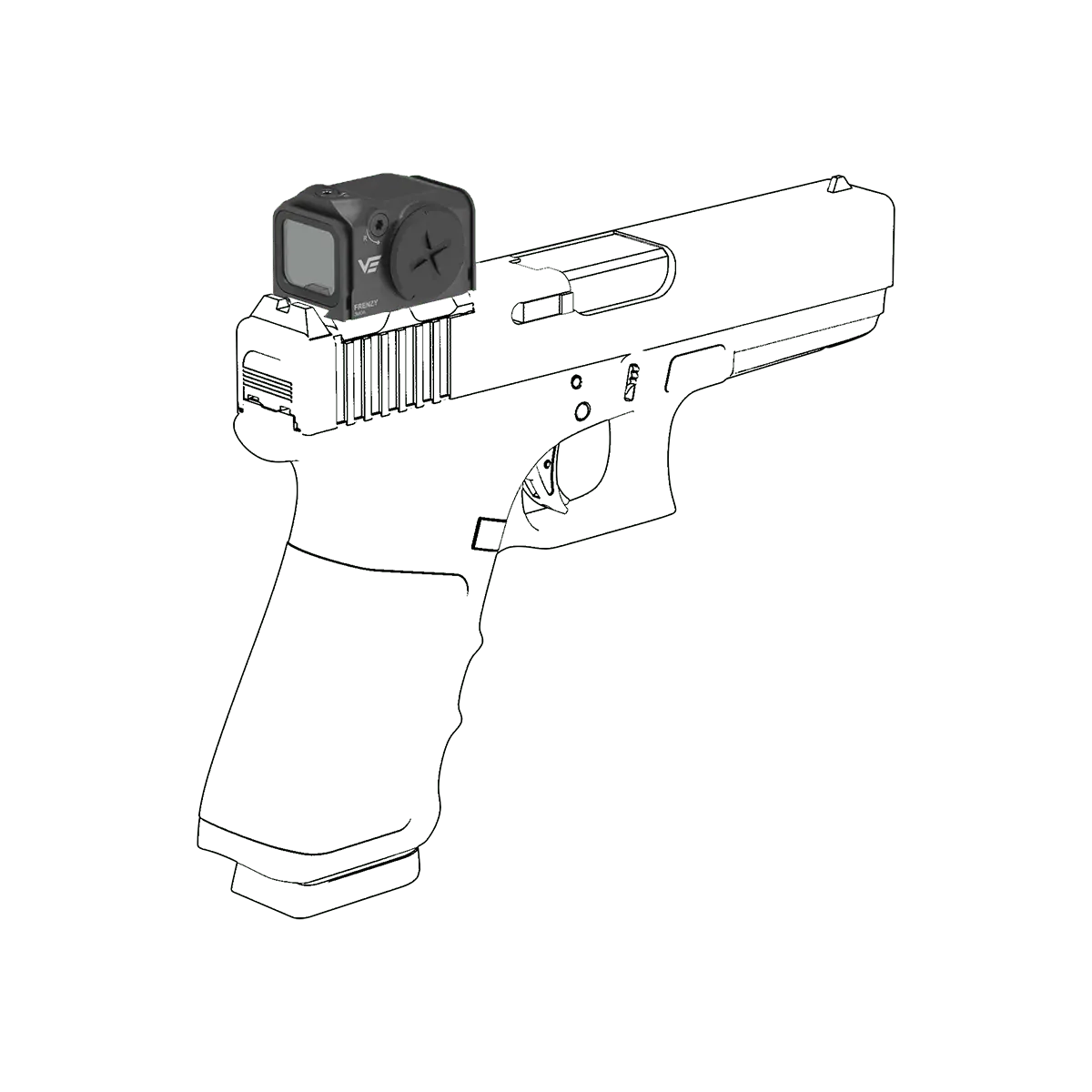

Adaptable Gun Type
Ruger PCC / Taurus S9
AR-15 / AR-10
Tikka T3x CTR
CZ P-10 F
SIG P320
