Feature

· Accurate Holdover and Windage: Second Focal Plane VOW-10BDC Reticle Compensates for Bullet Drop and Drift

· Versatile for Hunting and Competition: 3-12x Magnification Perfect for HFT Matches and Small Game Hunting

· Lightweight and Portable: 1" / 25.4mm Tube with Compact Build for Easy Carrying in the Field

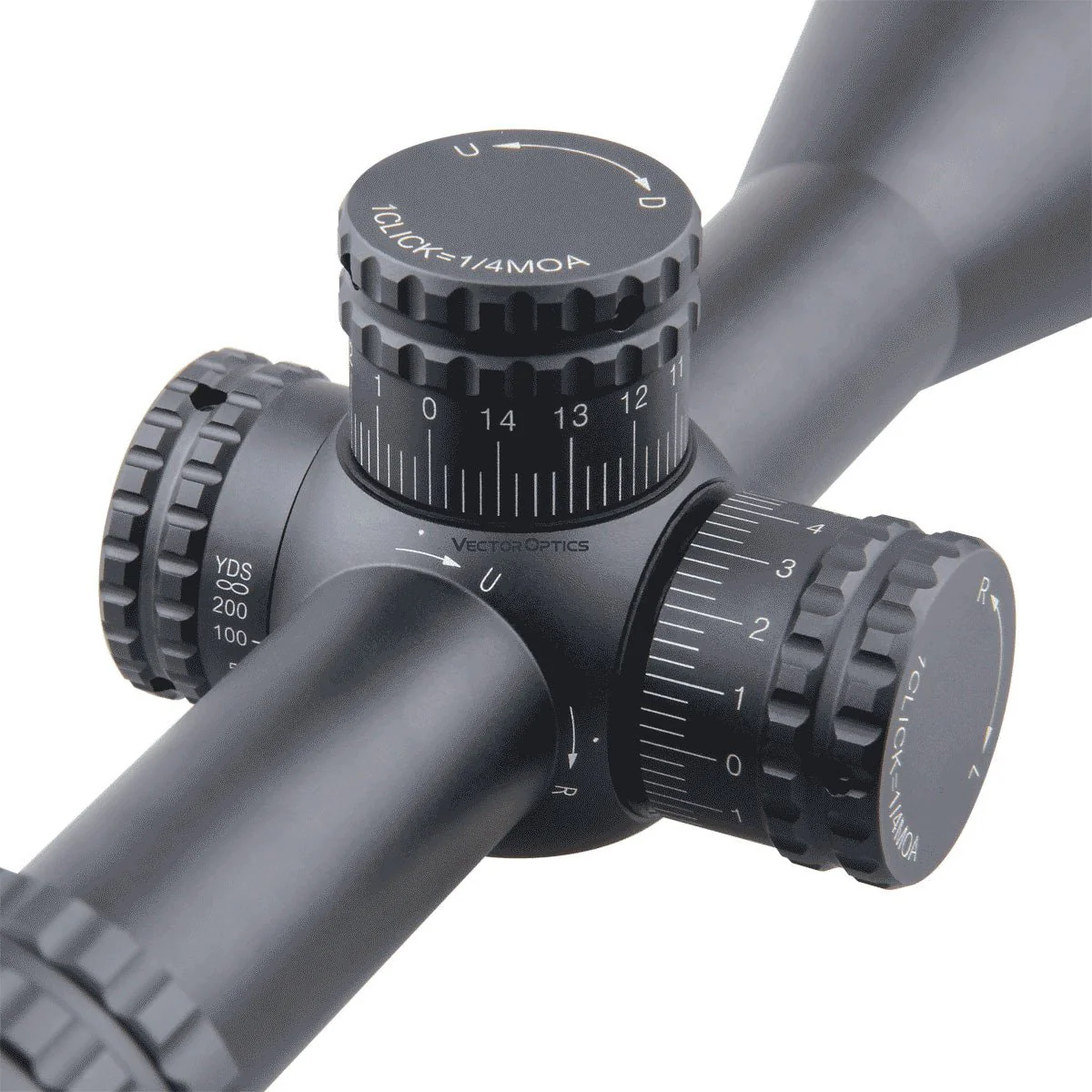

· Secure and Precise Adjustments: 1/4 MOA Turrets with Lock Function Prevent Losing Zero by Accident

Reticle





Specification

· Magnification: 3-12x

· Objective Lens Dia.: 44mm

· Ocular Lens Dia.: 38mm / 1.5 inch

· Ocular Lens Length: 60mm / 2.4 inch

· Exit Pupil: 14.6-4.0mm

· Optics Coating: Fully-multi coat

· Field of View: 31.5-7.9 feet@100 yds

· Eye Relief: 105--100mm / 4.1-3.9 inch

· Length: 325mm / 12.8 inch

· Weight: 595g / 21.2 ounce

· Tube Dia.: 25.4mm 1“ Monotube

· Click Value: 1/4 MOA

· Elevation Range: 60MOA

· Windage Range: 60MOA

· Parallax Setting: 10 yards to infinite

· Reticle: VOW-10BDC

· Illumination: None

· BDC & ranging reticle usage set at 10x power, big game, 22LR Rimfire and varmint rifles max to 600 yards range

· Distance between objective lens part and middle turret: 48mm (1.9 inch)

· Length of middle turret part: 37mm (1.5 inch)

· Distance between middle turret part to power ring: 57mm (2.2 inch)

· Side focus marks: 10, 15, 25, 50, 100, 200 and infinite yds

· Shock tested to 750g and water proof

· Fully nitrogen purged to eliminate any fogging of the lenses internally

· High quality 6061 T6 aircraft grade aluminum

· Diopter compensation from fast-focus eyepiece (+2 to -2)

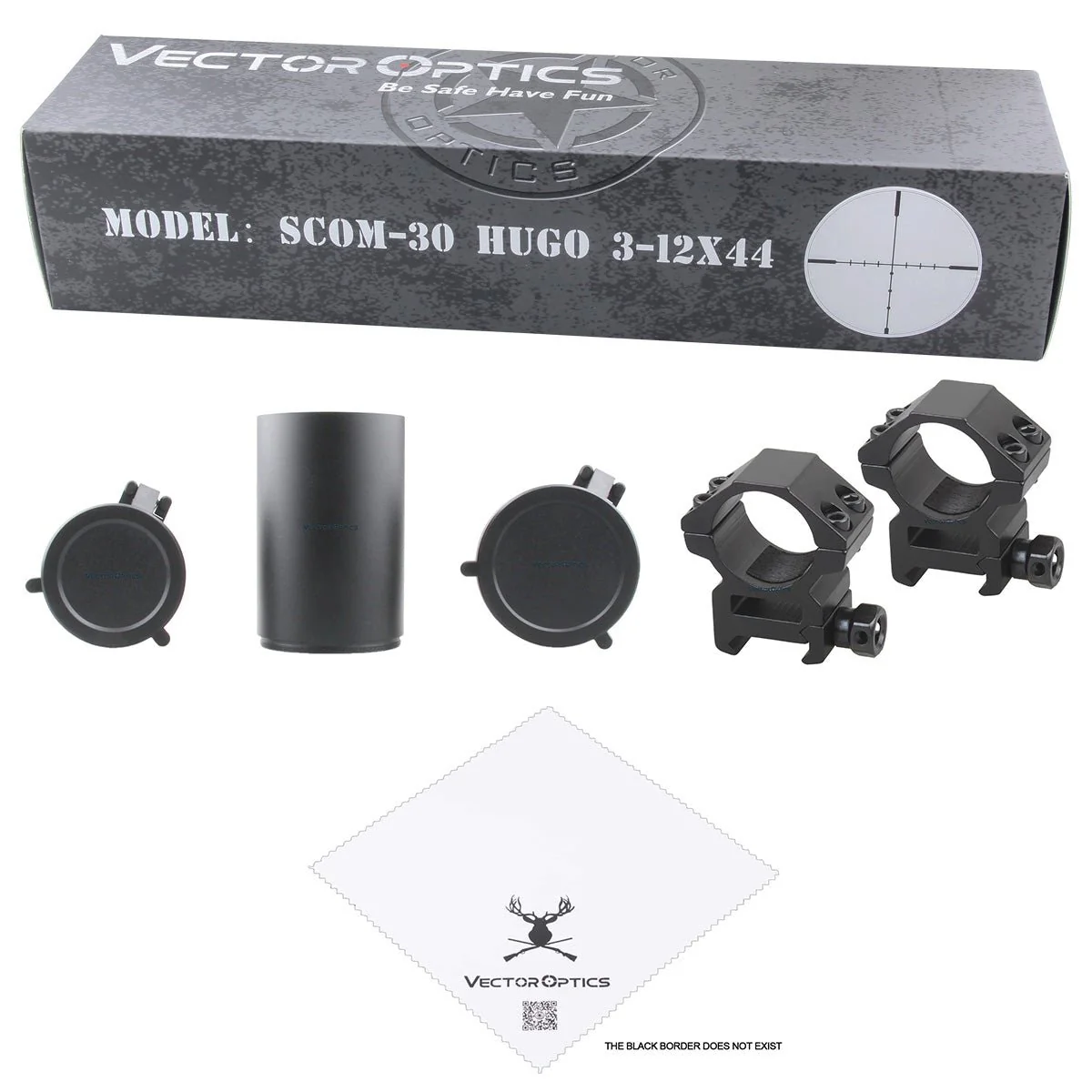

· Including items: weaver rings (default) or dovetail rings, lens caps, sunshade and cleaning cloth etc.

Related Product



Compatible Gun Type

For Small Game Hunting: FX Impact (.22 / .25 / .30), Walther / HW40, Ruger 10/22 (.22LR), Barra / HW, CZ 457 (.22LR), Tikka T1x (.22LR), etc.
