Description

Etched Glass MPN-1 Reticle

Low Light Weight Design

1/10 MIL Low Profile Resettable Zero Turrets

Fully Muti Coated Reaches 85-87% Light Transmission

Offered in Second & First Focal Plane

Free Lens Cover, Honeycomb & 30mm Scope Rings

Relations



Feature

· Fully Multi Coated Reaches 85% Light Transmission Sharp Clear Image

· 4 inch Long Eye Relief With Wide Field of View & Edge-to-Edge Image

· Etched Glass MPN-1 MIL Reticle, Side Focus Minimal from 10 Yards

· 1/10 MIL Low Profile Adjustment w Turret Lock & Re-Zero Feature Total 15MIL Range

· w/ Power Ring Lever Mount, 1cm & 0.1 MRAD Spare Turrets, Scope Rings, Honeycomb Sunshade

Reticle

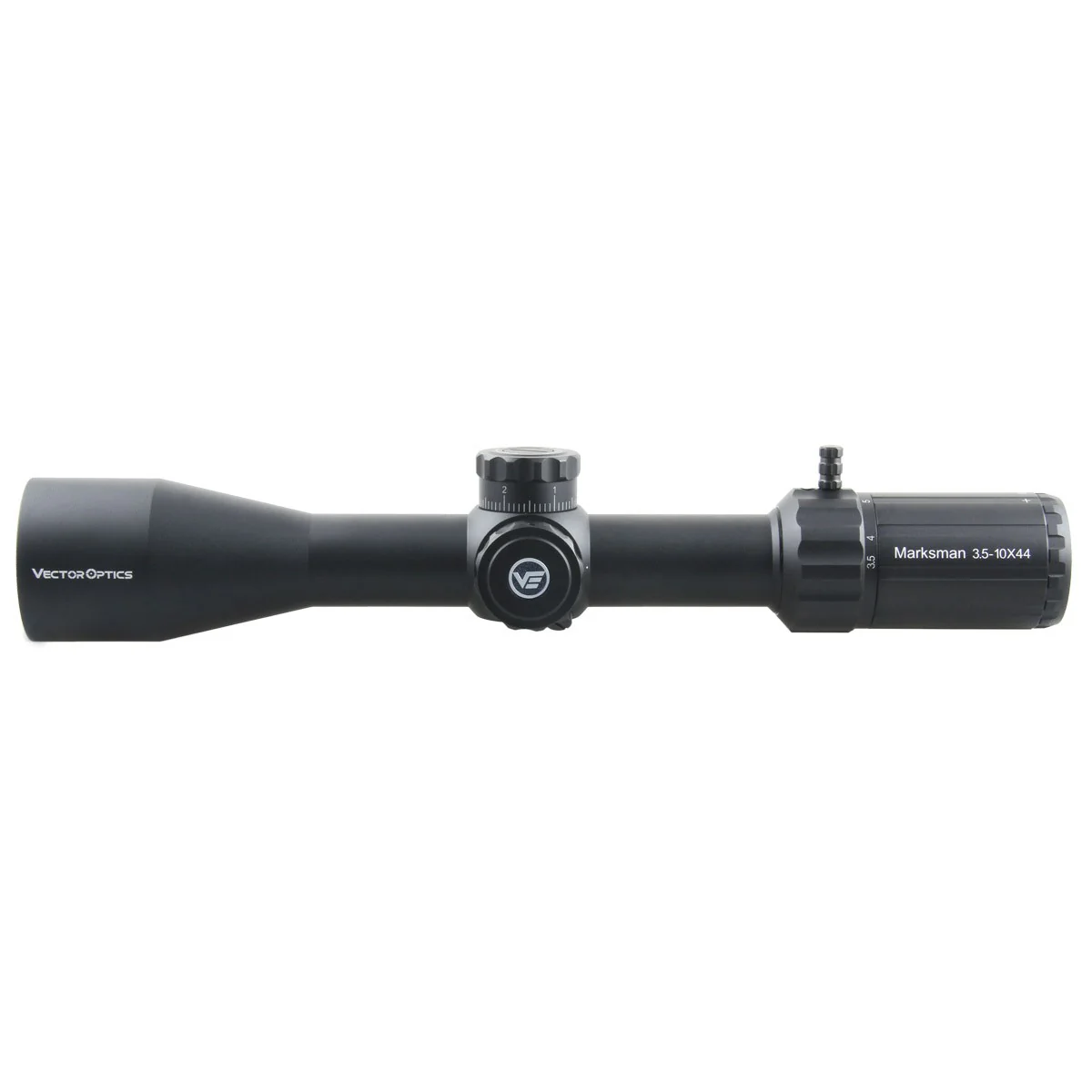

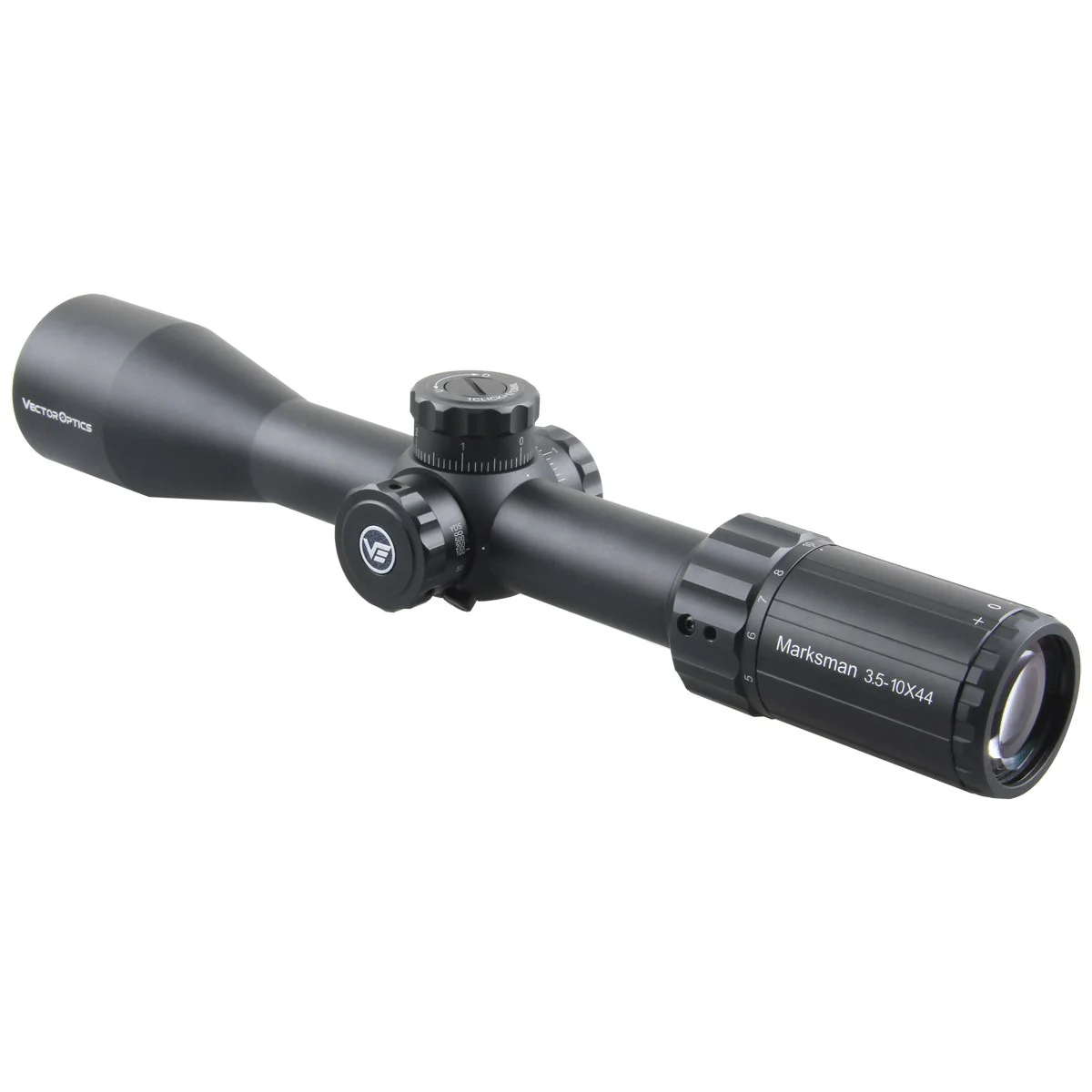

Specification

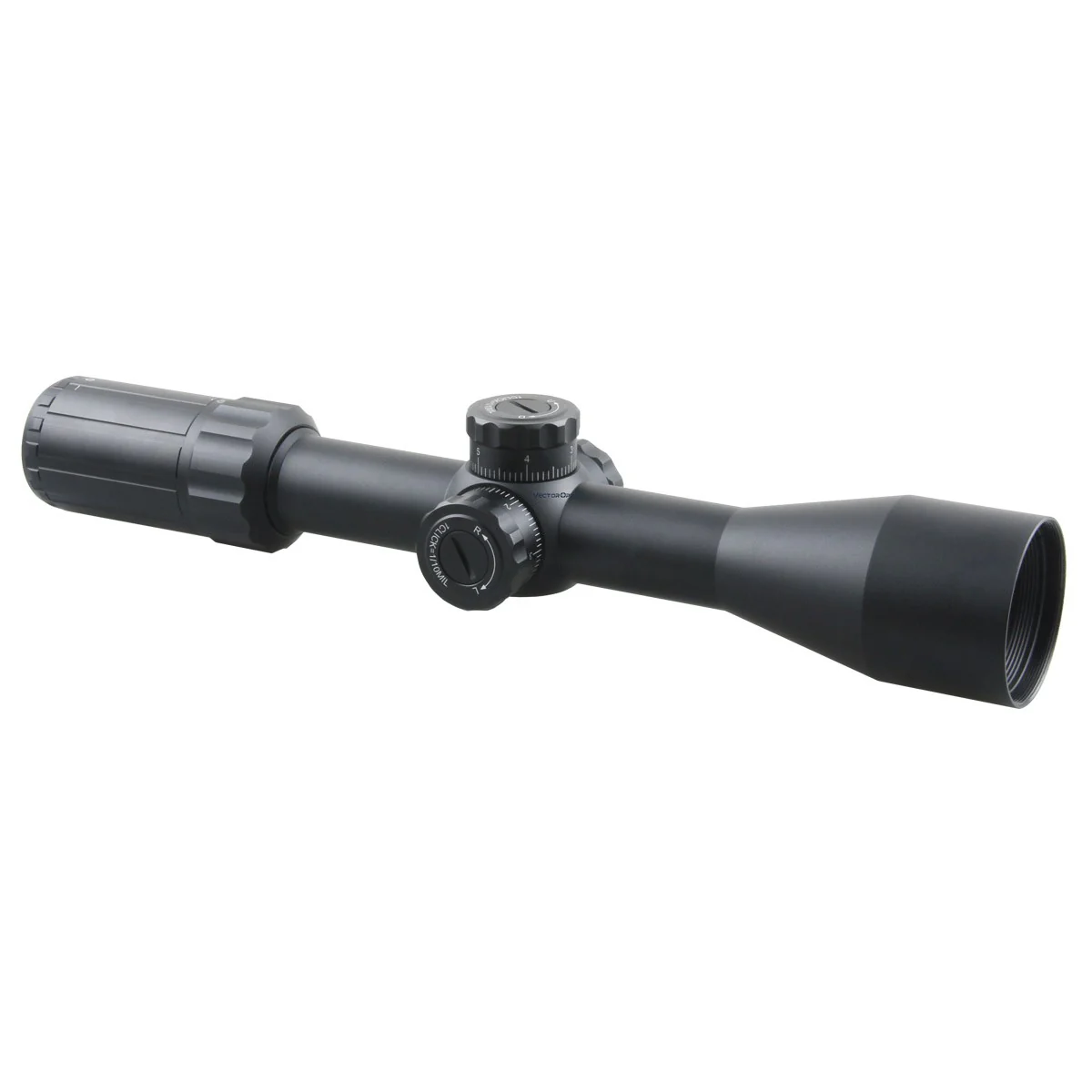

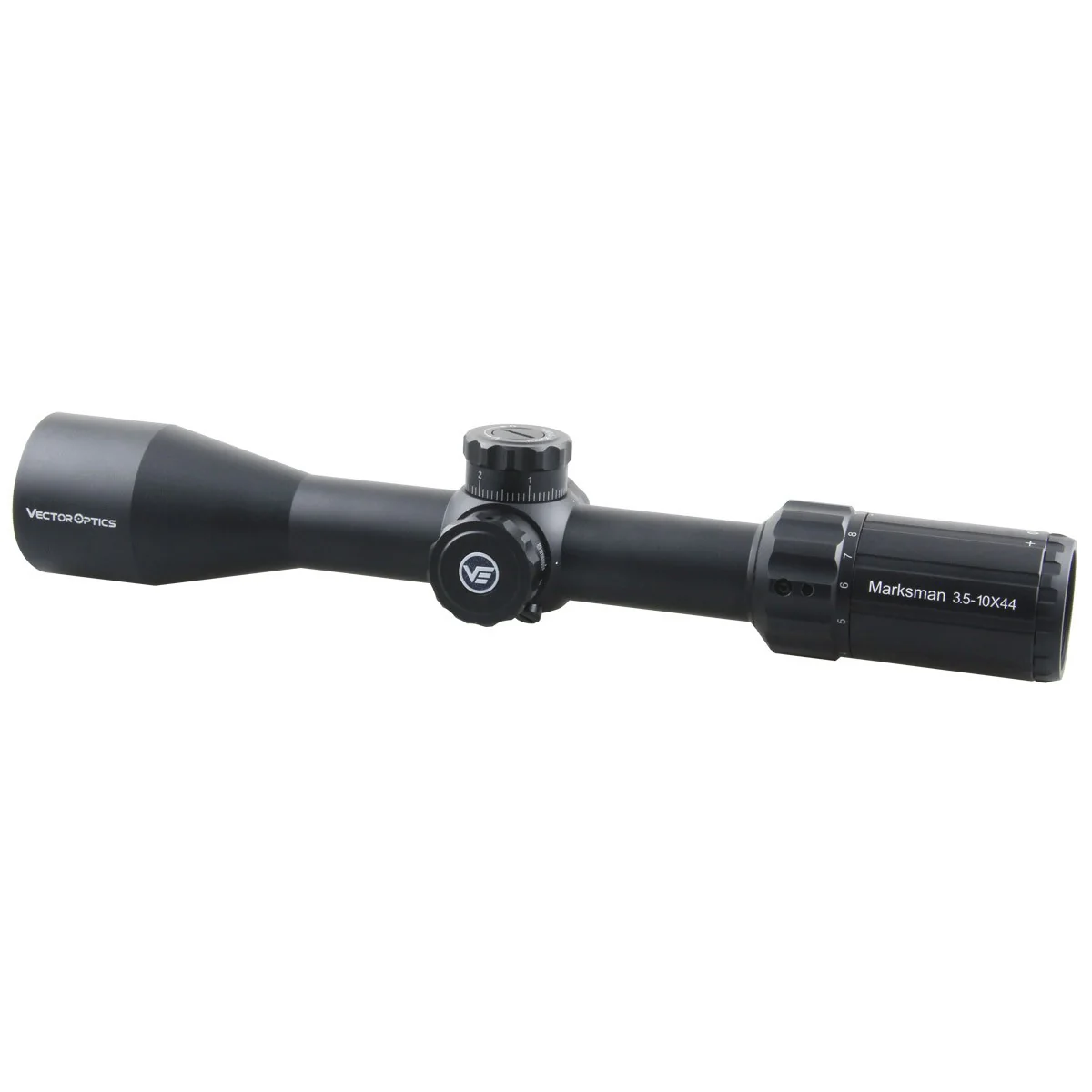

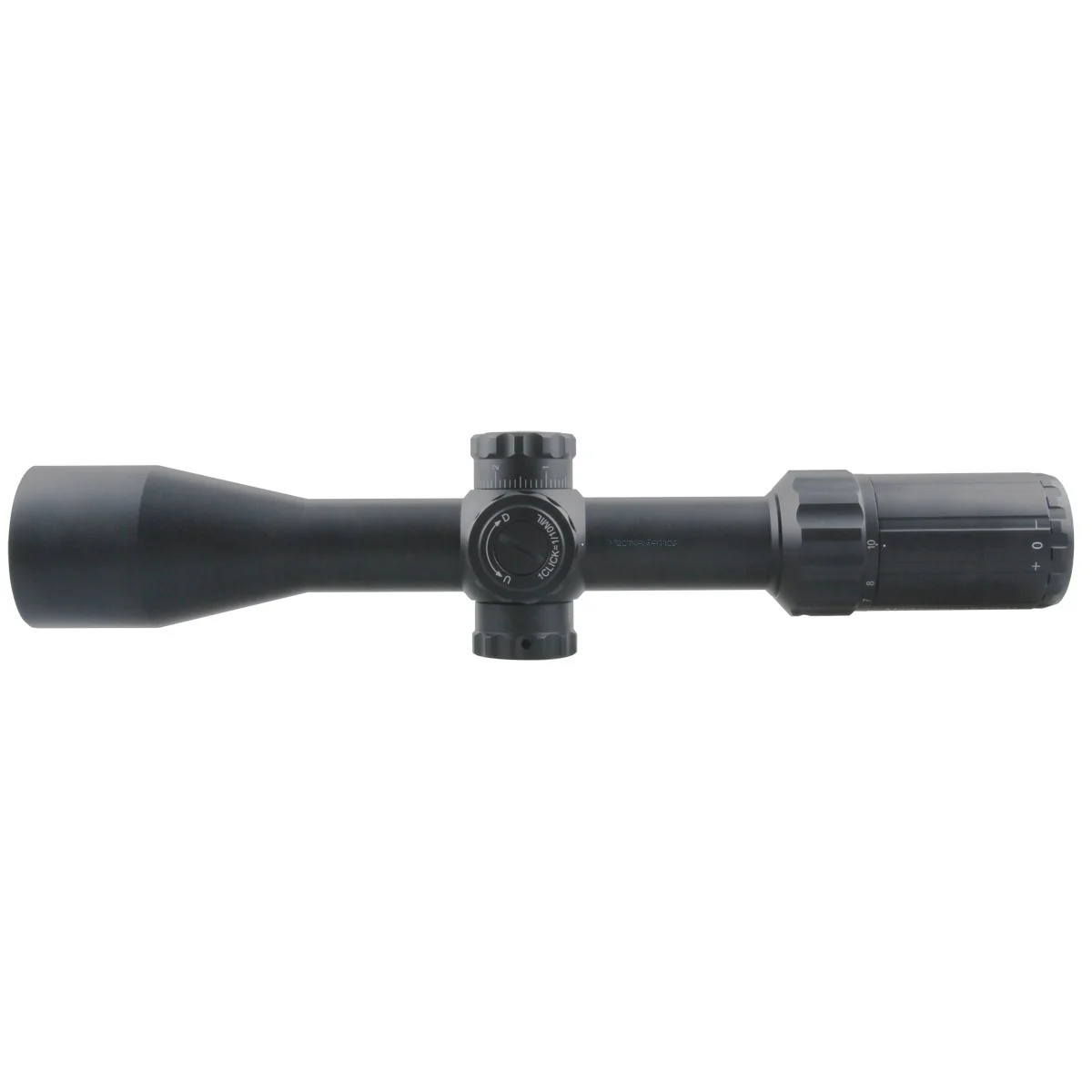

· Magnification: 3.5-10x

· Objective Lens Dia.: 44mm

· Ocular Lens Dia.: 35mm

· Tube Dia.: 30mm monotube

· Exit Pupil: 12.6-4.4mm

· Field of View: 6.3-2.1°

· Eye Relief: 105-100mm / 4.13-3.93 inch

· Optics Coating: Fully-multi coated

· Reticle: Etched Glass MPN-1 Reticle

· Weight: 665g / 23.5oz

· Length: 325mm / 12.8 inch

· Click Value: 1/10 MIL

· Adjustment Range: 18 MIL

· Side Focus: 10 yards to infinite

· Finish: Black matte

· Illumination: N/A

· Distance between objective lens part and middle turret: 49mm (1.9 inch)

· Length of middle turret part: 39mm (1.5 inch)

· Distance between middle turret part to power ring: 57mm (2.2 inch)

· Side focus: marked 10, 15, 25, 50, 100, 200, 500 yards to infinite

· Shock proof (1000g), water proof and fog proof (nitrogen purged)

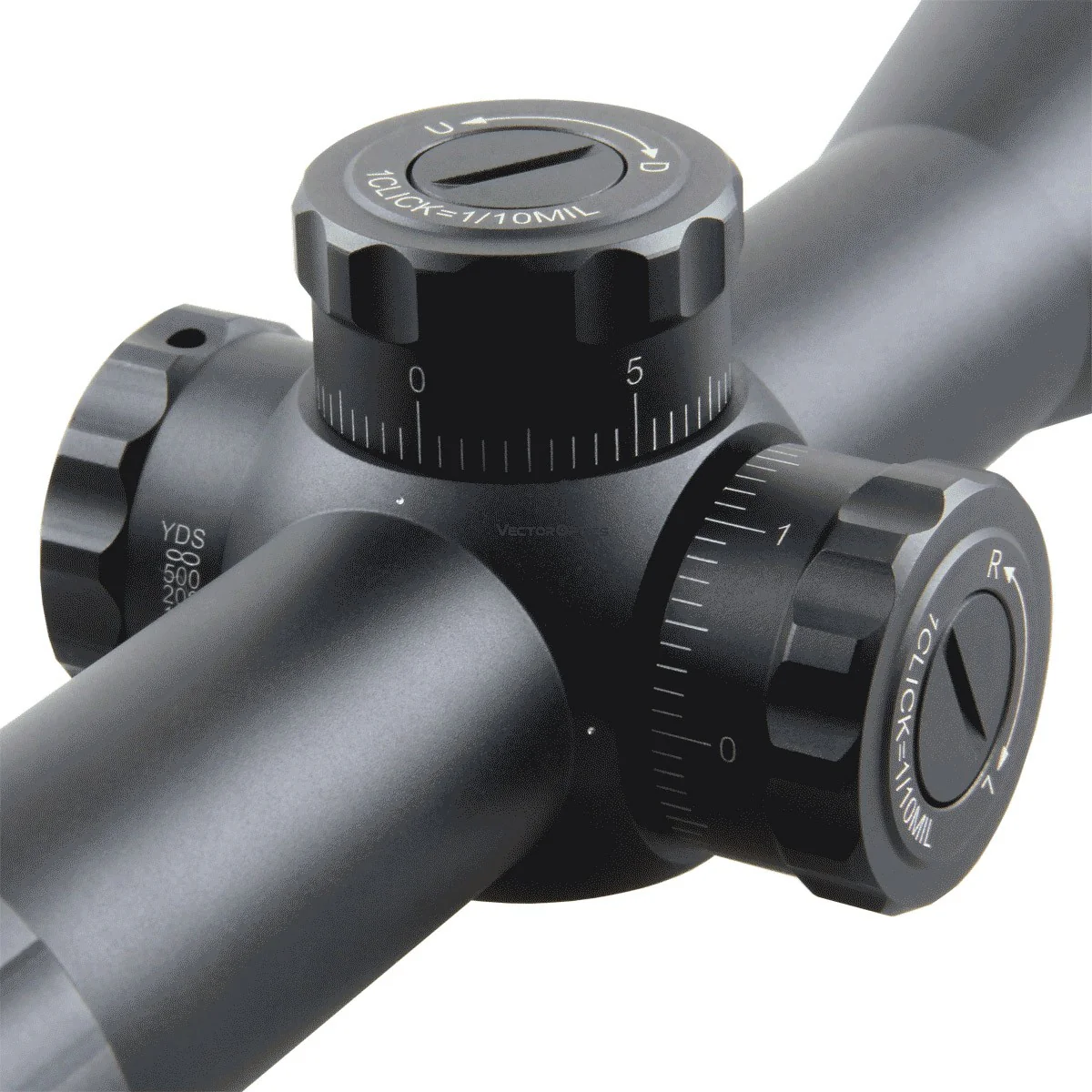

· Direct finger windage and elevation adjustments with turret lock feature

· Diopter adjustment at ocular lens (diopter compensation +2 to -2)

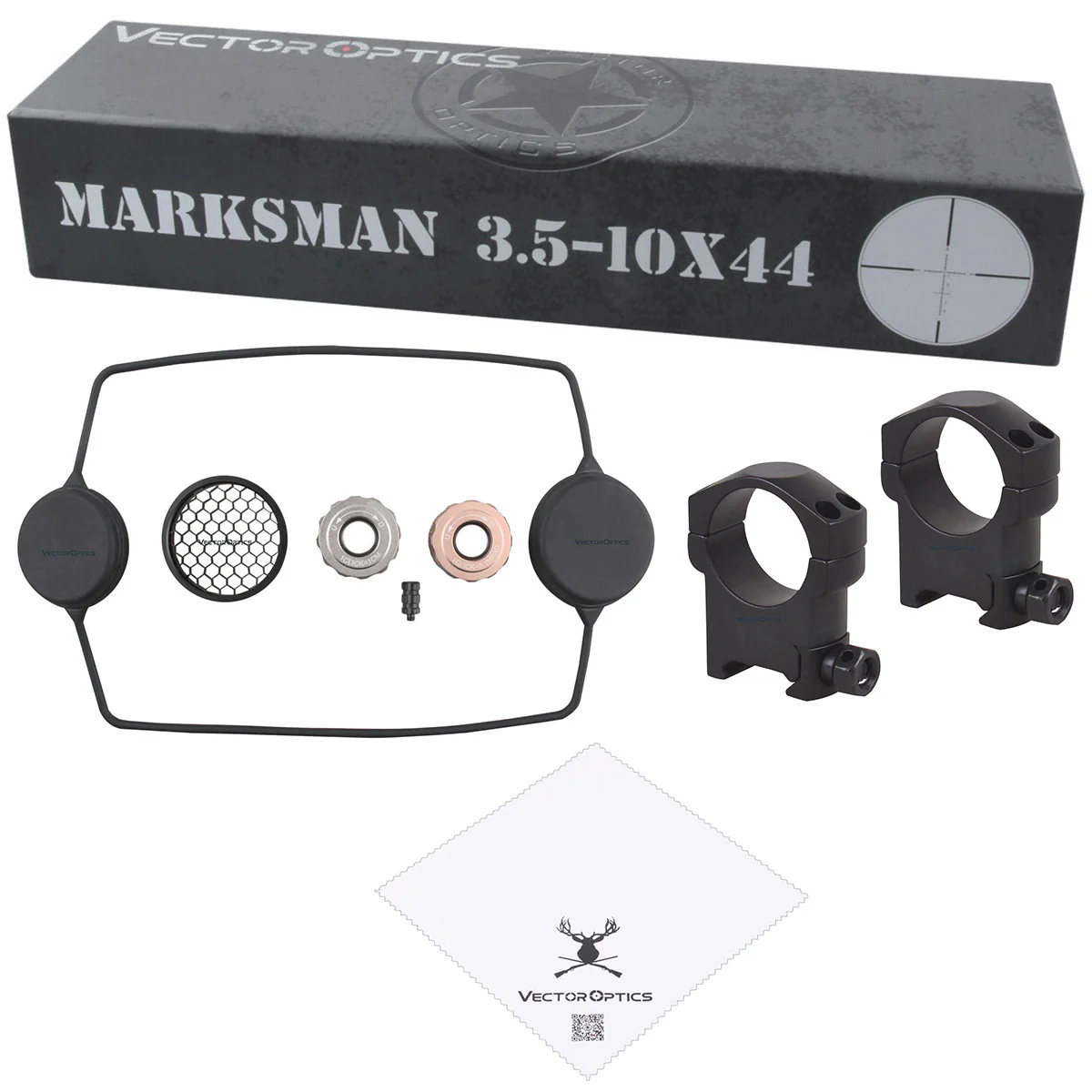

· Free fitting involved: power ring lever mount, 30mm mark weaver ring (default) , dark silver color 1cm spare turret, golden 0.1 MRAD spare turret, cleaning cloth and honeycomb sunshade etc
