Description

6x Super-Zoom Factor

Edgeless-to-Edgeless Image

Extra-Low Dispersion

30mm Monotube  in Rugged Construction

Reliable Mechanics Provide Accurate MOA Clicks

Designed for M/AR & Bolt Action Platforms

Video

Realtions



Feature

· Vector Optics Top Premium Line That Can Compete Most Worldwide Famous Brand Optics

· 30mm Monotube

· Edgeless Image

· Fully Multi Coated

· >4" Long Eye Relief

· >50MOA Adjustment Range

· Wide F.O.V

· Etched Glass MOA Reticle

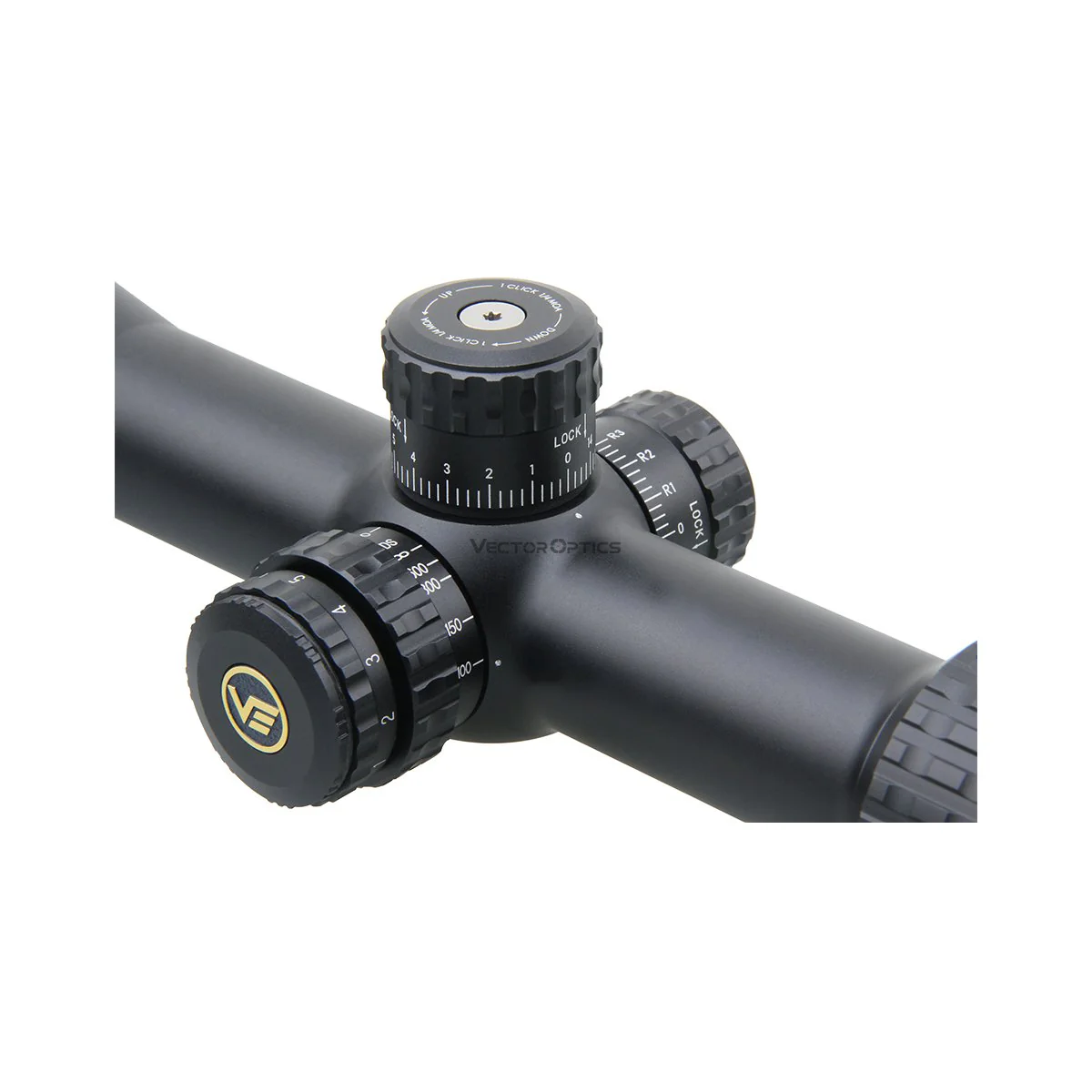

· 1/4 MOA Turret Lock Sys

· Illuminatated

· Lapua Magnum 338 Approved

Specification

· Magnification: 5-30x

· Objective Lens Dia.: 56mm

· Ocular Lens Dia.: 36mm (1.4 inch)

· Ocular Lens Length: 58mm (2.1 inch)

· Exit Pupil: 11.2mm-1.87mm

· Optics Coating: Fully-multi coat diamond clear

· Field of View: 19.93-3.3 Feet @ 100 yards

· Resolution: 5.5″

· Eye Relief: 124-86mm (4.9-3.4 inch)

· Length: 400mm (15.7 inch)

· Weight: 835g (29.5 ounce)

· Tube Dia.: 30mm Monotube

· Click Value: 1/4 MOA

· Elevation Range: >50MOA

· Windage Range: >50MOA

· Parallax Setting: 100 yards

· Side Focus: 20 Yds to infinite

· Reticle: Etched glass VPA-A

· Illumination: 11 gear Red

· Battery: CR2032

· Distance between objective lens part and middle turret: 55mm (2.1 inch)

· Length of middle turret part: 38mm (1.5 inch)

· Distance between middle turret part to power ring: 55mm (2.1 inch)

· MOA reticle etched glass

· Shock tested to 750g, water proof at 1m

· Fully nitrogen purged to eliminate any fogging of the lenses internally

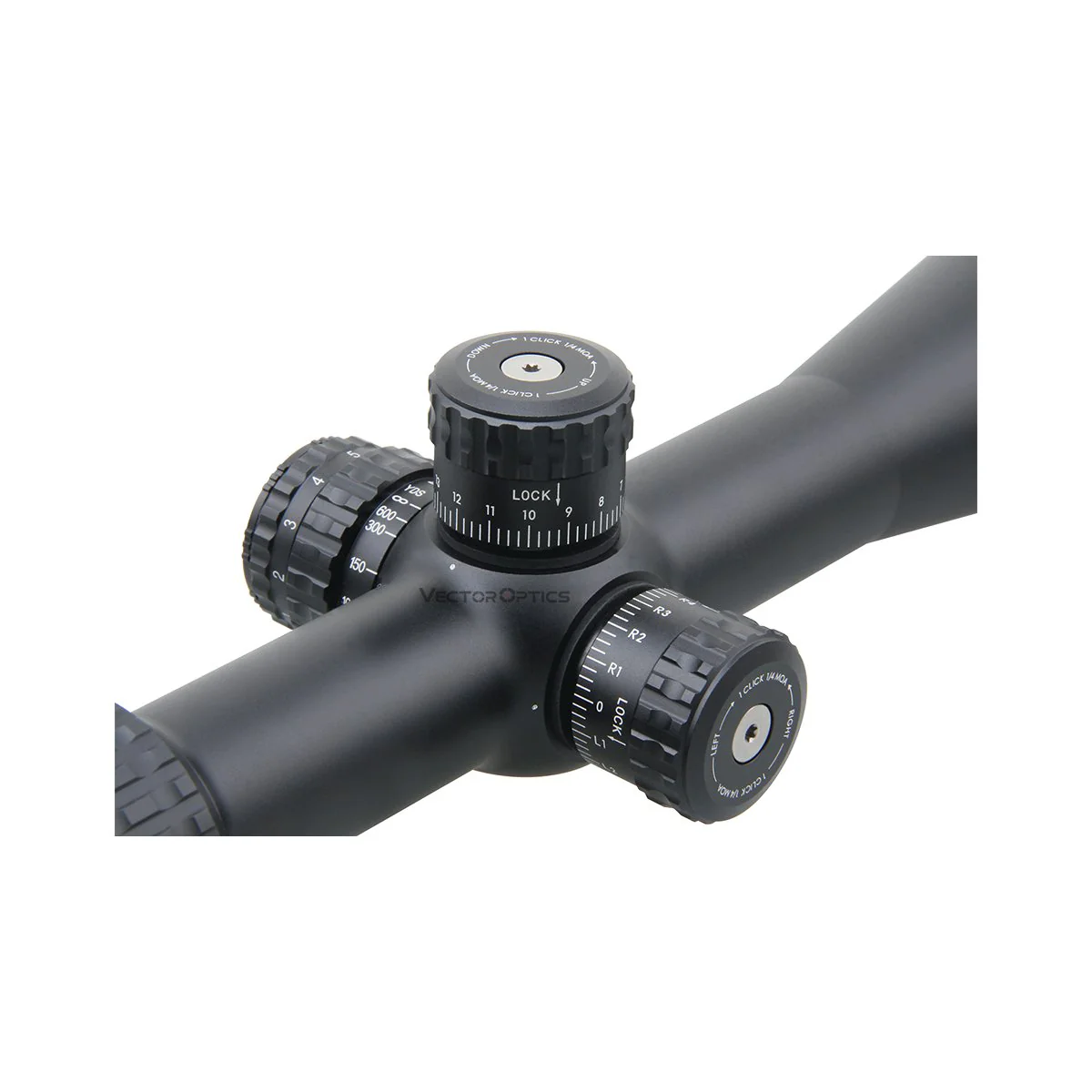

· Turret lock system

· High quality 6061 T6 aircraft grade aluminum

· Focus mark: 20, 30, 40, 50,100, 150, 300, 600 and infinite

· Diopter compensation from fast-focus eyepiece (+2 to -2)

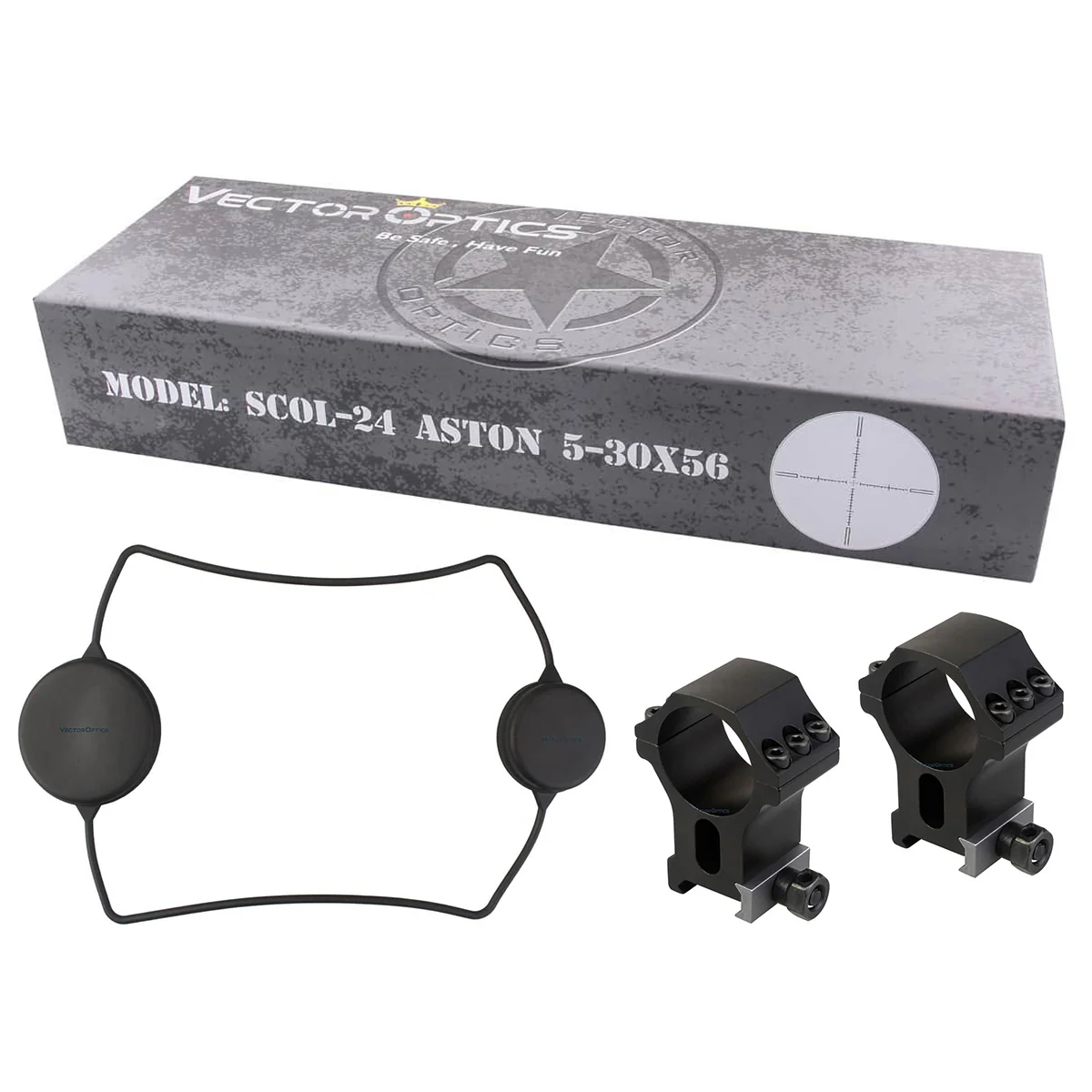

· Including items: 30mm picatinny high ring (default) or weaver or dovetail mount, lens caps and cleaning cloth etc.
