Feature

• Fast Target Acquisition: Etched G4 & BDC Reticle Enables Quick Holdover and Rapid Target Lock for Small Game and Mountain Hunting

• Bright & Crisp Image: LaREE Lens with VePRO FMC Delivers Over 90% Light Transmission for Clear, Sharp Viewing in Varied Light

• Extended Adjustment Range: 30mm Monotube Expands Internal Travel to Wide 140 MOA with Precise 1/4 MOA Click Adjustments

• Comfortable Shooting: Constant 100mm / 4Inch Eye Relief with a Large Eye Box Supports Stable Sight Picture in Multiple Positions

Reticle

MPVO Rifle Scope Reticle : VET-10 BDC

Scenario: Small Game Hunting, Varmint Hunting, Driving Hunting, Plain Game Hunting

• G4 pattern design for rapid target acquisition
• BDC design for .223, .308



Specification

See our Terminology Guide for detailed explanations of each specification.

· Magnification: 2-12x

· Objective Lens Dia.:50mm

· Ocular Lens Dia.:42mm (1.7 inch)

· Ocular Lens Length: 54mm (2.1 inch)

· Exit Pupil: 9.5-4.2mm

· Optics Coating: Fully-multi coat diamond clear

· Field of View: 63-10.5 feet @ 100 yards

· Field of View: 21-3.5 meters @ 100 meters

· Eye Relief: 100mm (4.0 inch)

· Length: 335mm (13.1 inch)

· Weight: 605g (21.4 ounce)

· Tube Dia.:30mm Monotube

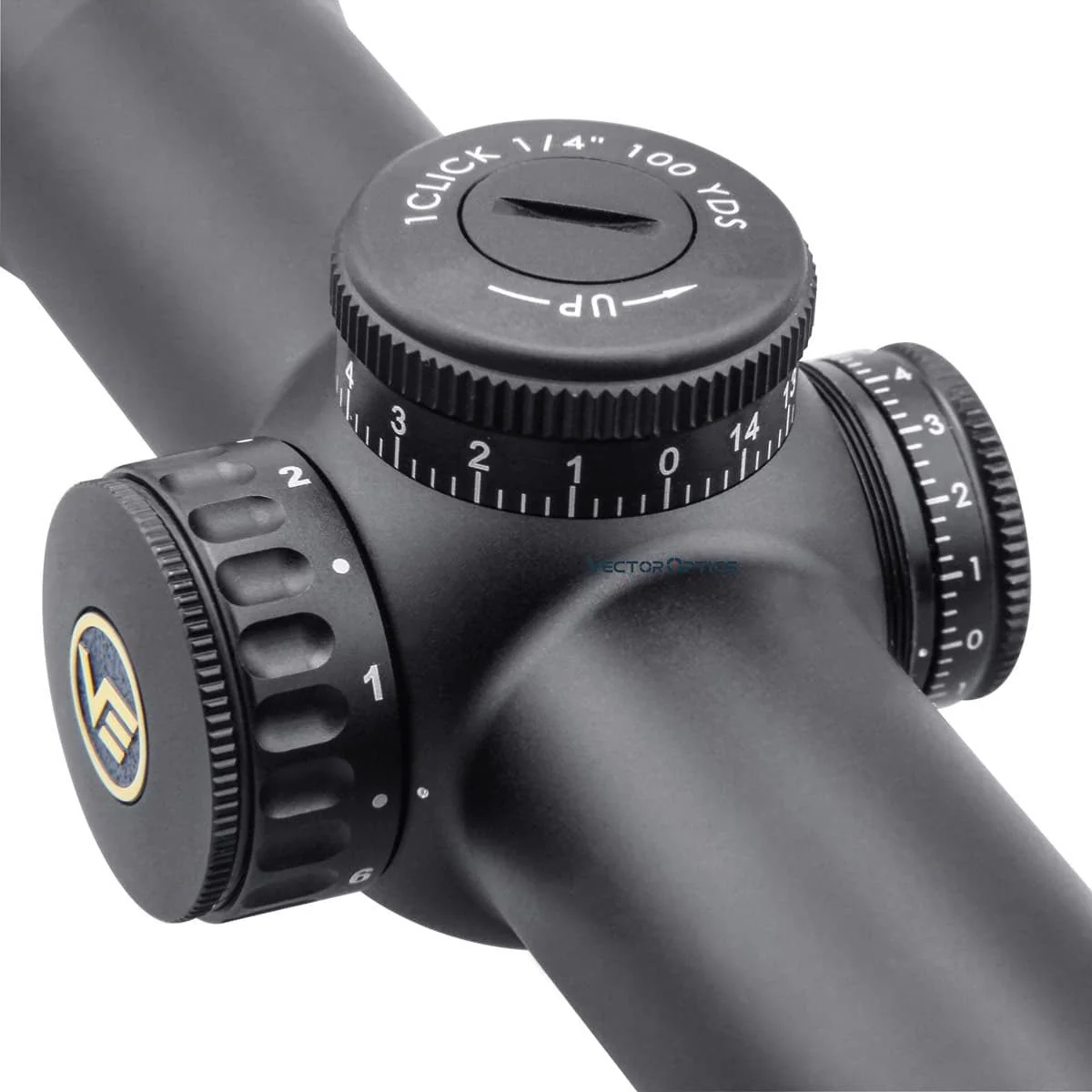

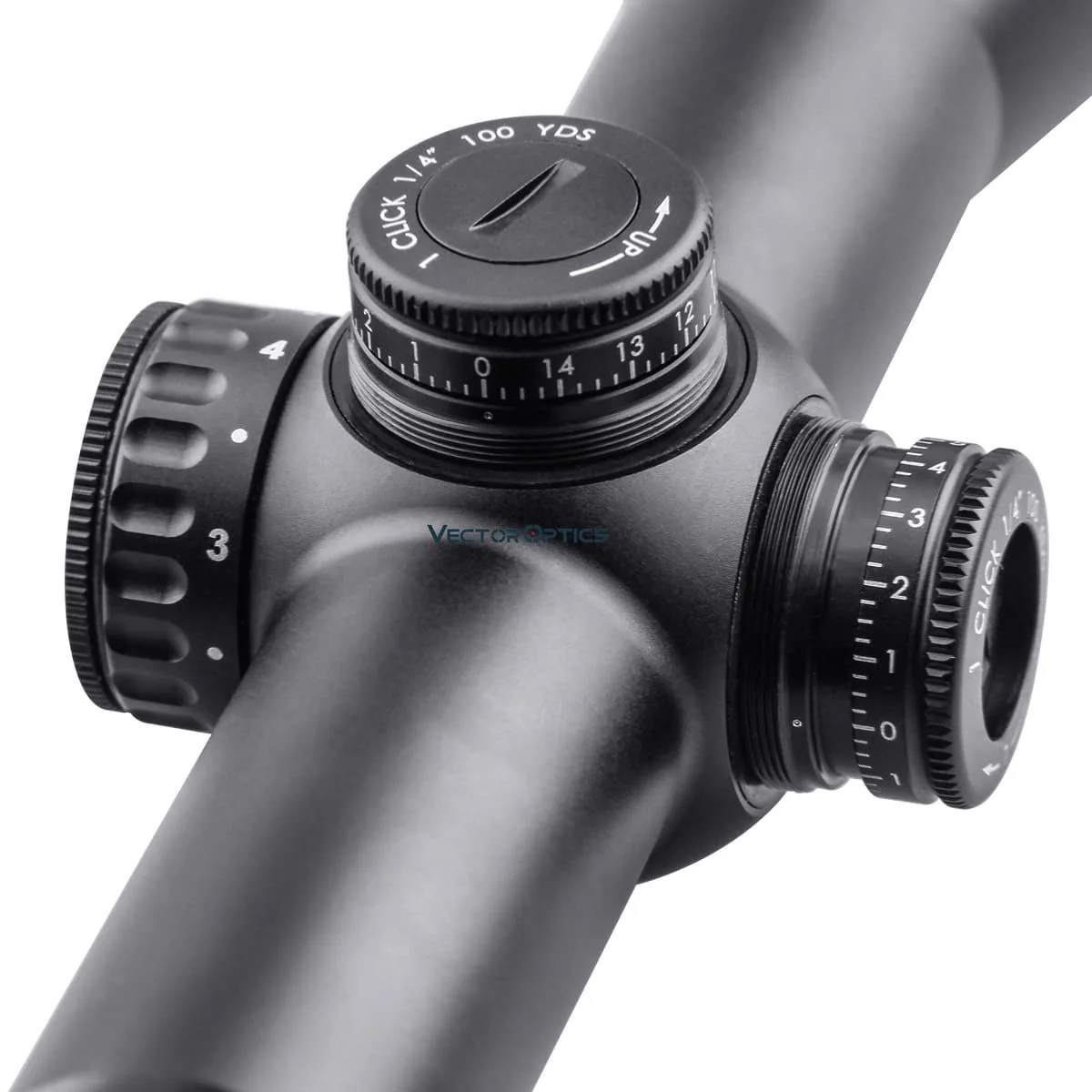

· Click Value: 1/4 MOA

· Elevation Range: 140 MOA

· Windage Range: 140 MOA

· Parallax Setting: 100 yards

· Reticle: Etched glass VET-10BDC

· Illumination: Six gear

· Battery: CR2032

· Distance between objective lens part and middle turret: 42mm (1.6 inch)

· Length of middle turret part: 33mm (1.3 inch)

· Distance between middle turret parts to power ring: 56mm (2.2 inch)

· Shock tested to 750g, water proof at 1m

· Light transmission reach to 90%

· Fully nitrogen purged to eliminate any fogging of the lenses internally

· Adjust plate is NOT fixed, after zero the scope pull up the turret and re-set to zero

· High quality 6061 T6 aircraft grade aluminum

· Turret lock feature: press down to lock without click movement

· Diopter compensation from fast-focus eyepiece (+2 to -3)

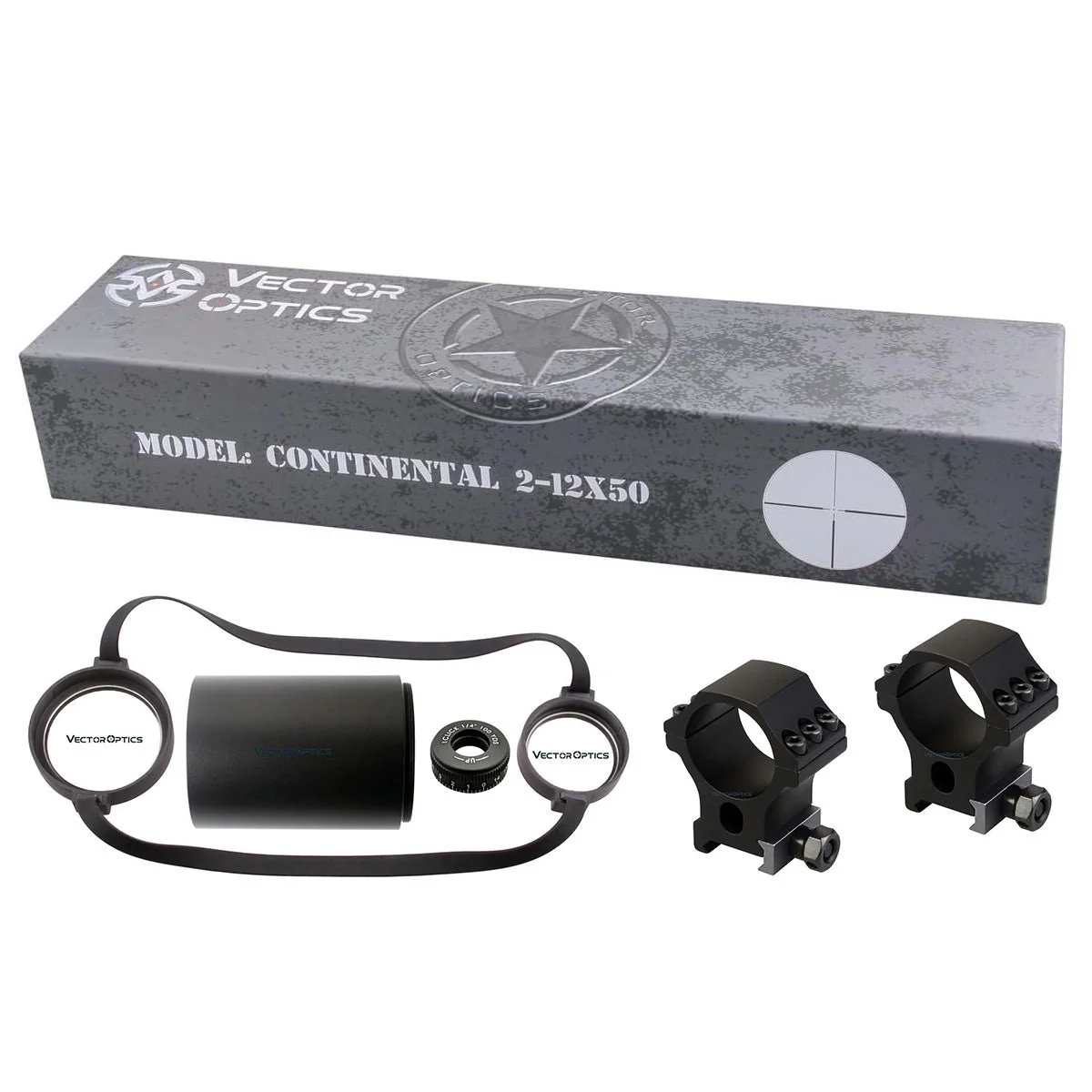

· Including items: 30mm picatinny high ring (default) or weaver or dovetail mount, lens caps and cleaning cloth etc.

Compatible Gun Type

Small Game Hunting: FX Impact (.22 / .25 / .30), Walther / HW40, Ruger 10/22 (.22LR), Barra / HW, CZ 457 (.22LR), Tikka T1x (.22LR), etc.

For Varmint Hunting: Ruger American / Sako 85 (.204 / .22 Hornet / .222 / .223 / .300 BLK), CZ 527 Varmint (.17 Hornet / .22 Hornet / .204 Ruger / .223 / .22-250), Tikka T3x Varmint (.204 Ruger / .223 / .22-250), Howa 1500 Varmint (.204 Ruger / .222 / .223), Remington 700 / 783 (.223 / .22-250), FX Impact / AirForce Texan, etc.

For Driving Hunting: AR-15 / AR-10 (5.56 / .308), Tikka T3x CTR,  Ruger PCC / Glock G17, CZ 75 / SIG P320 / Canik, etc.

For Plain Game Hunting: Tikka T3x / Remington 700 (.308 / 6.5CM), Sako / Howa (.243 / .270 / .308 / 6.5CM), Marlin 336 (.30-30), Ruger American / Blaser R8 (.308), etc.
