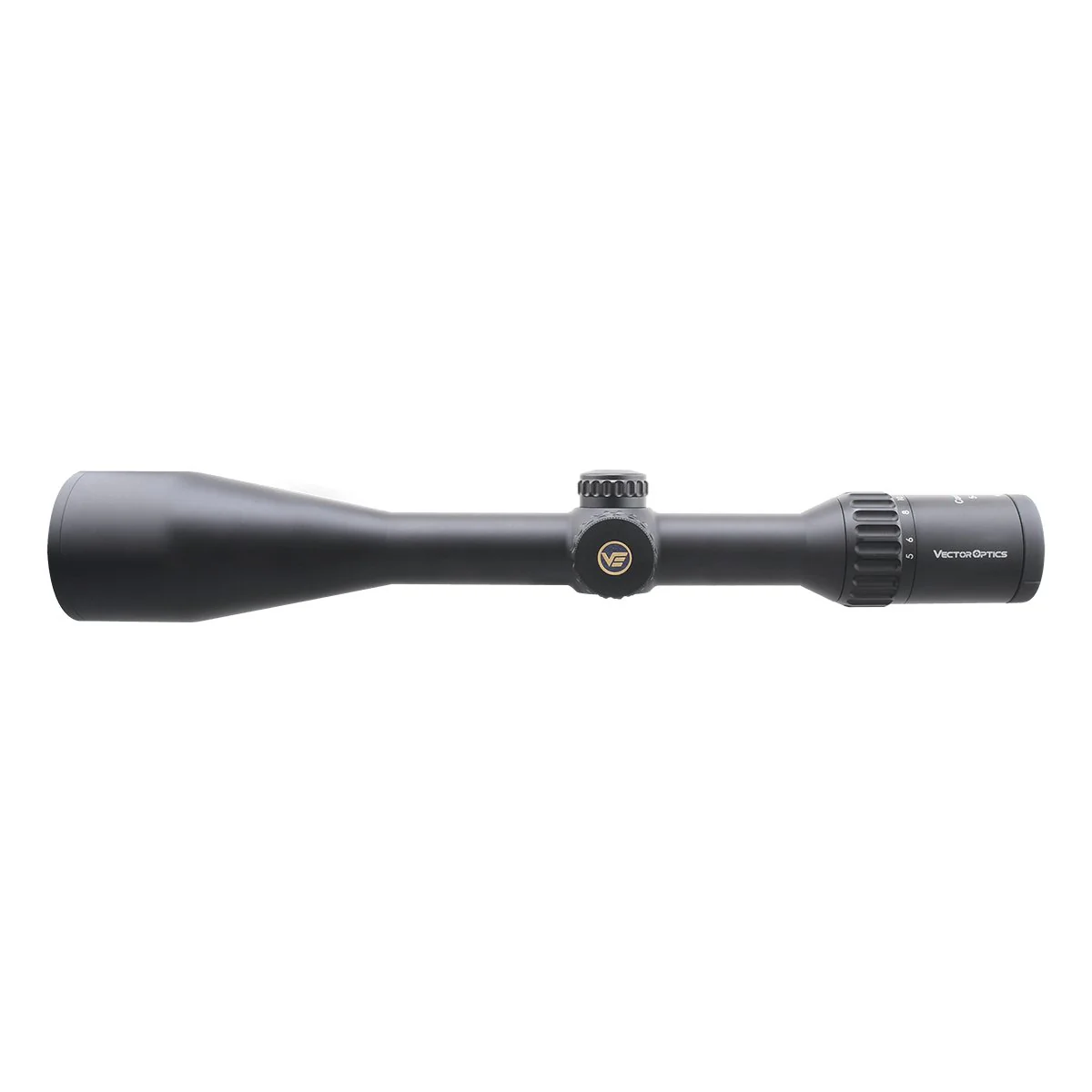

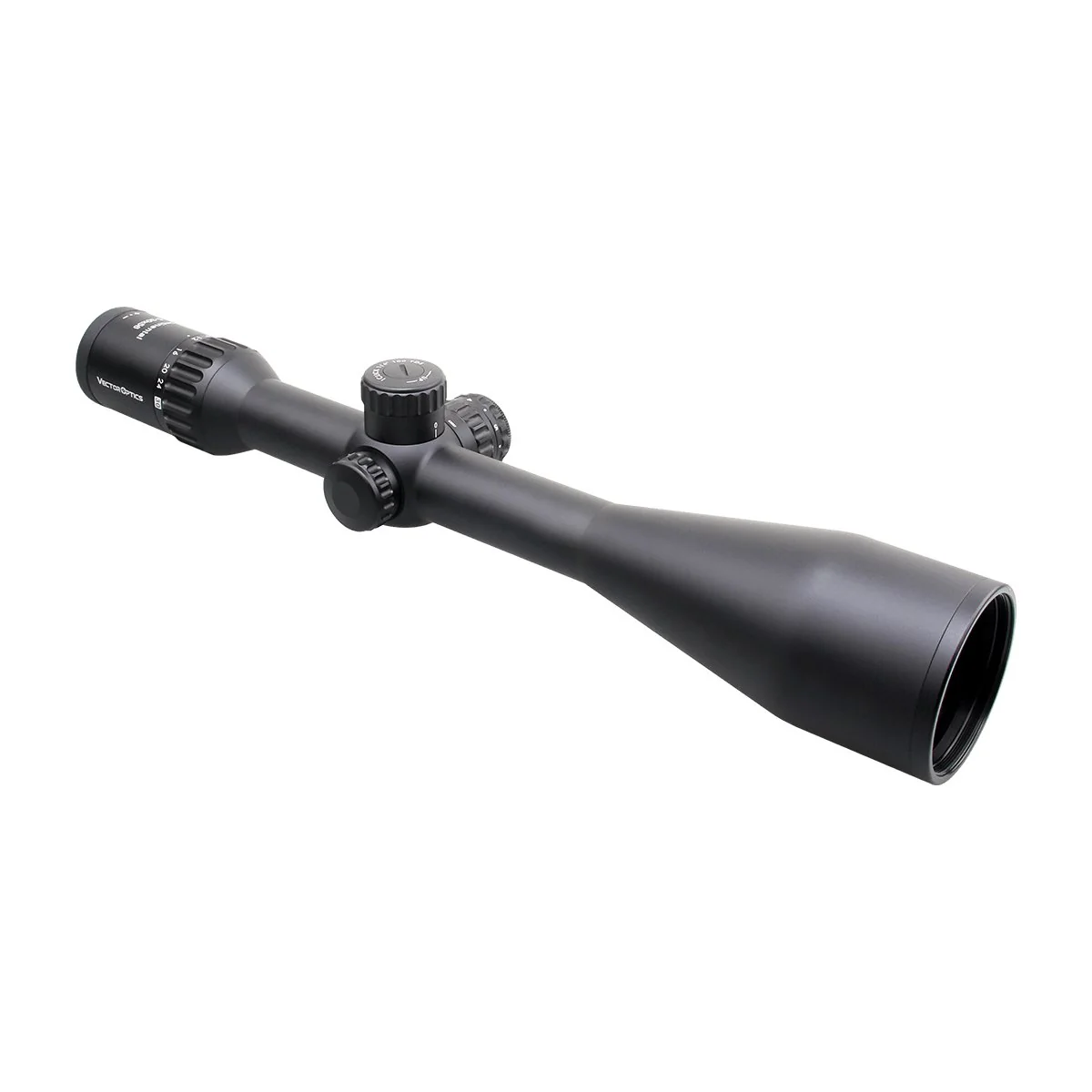

Feature

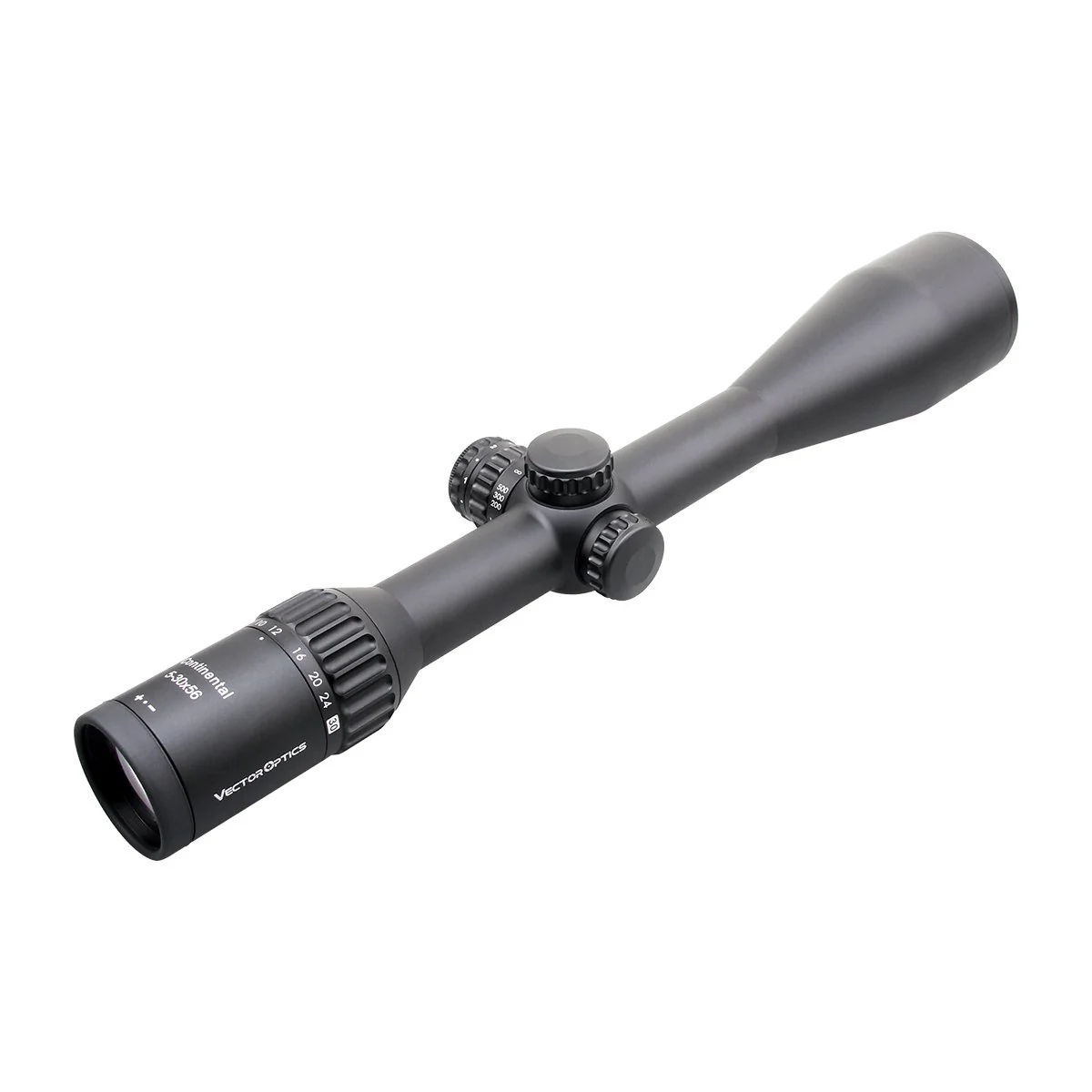

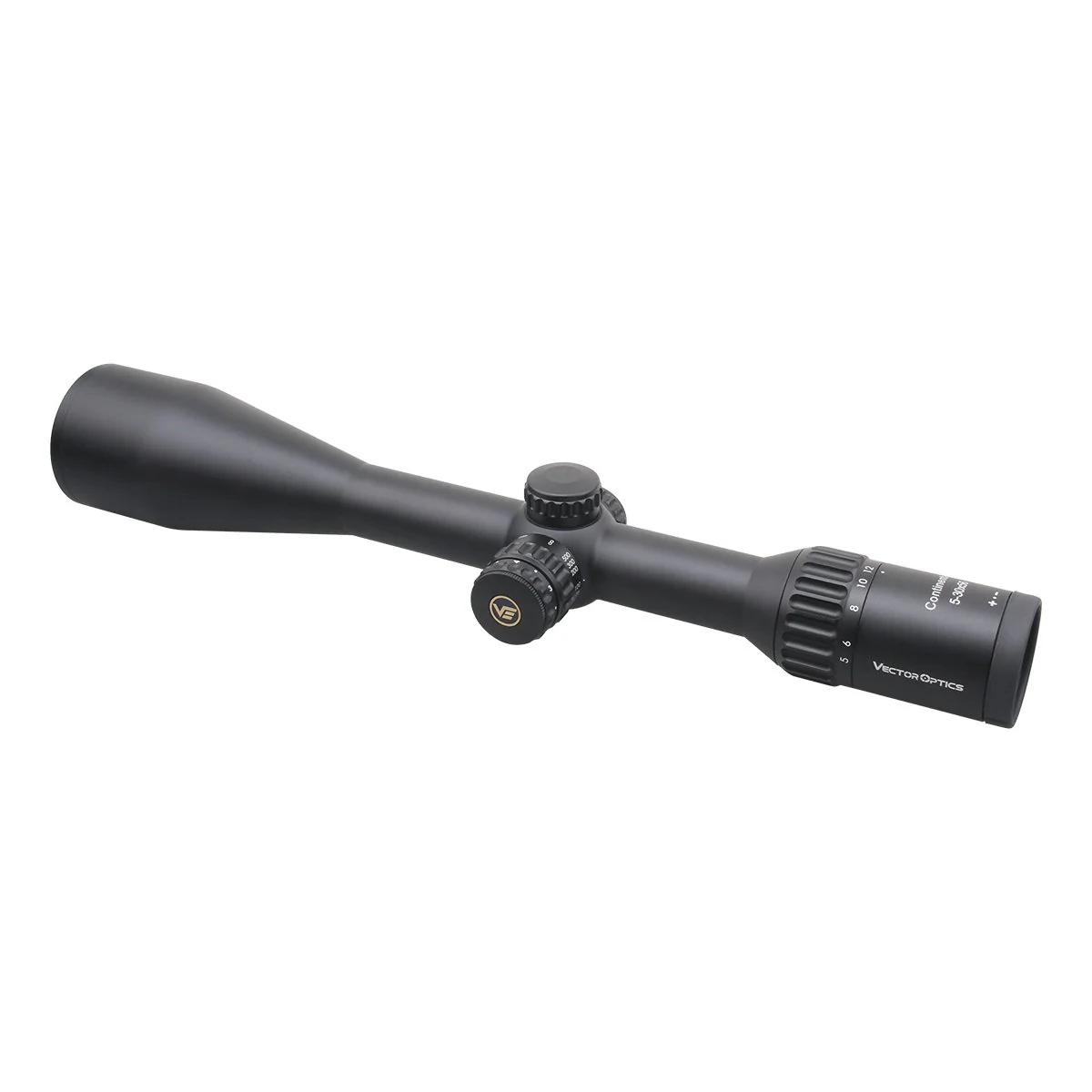

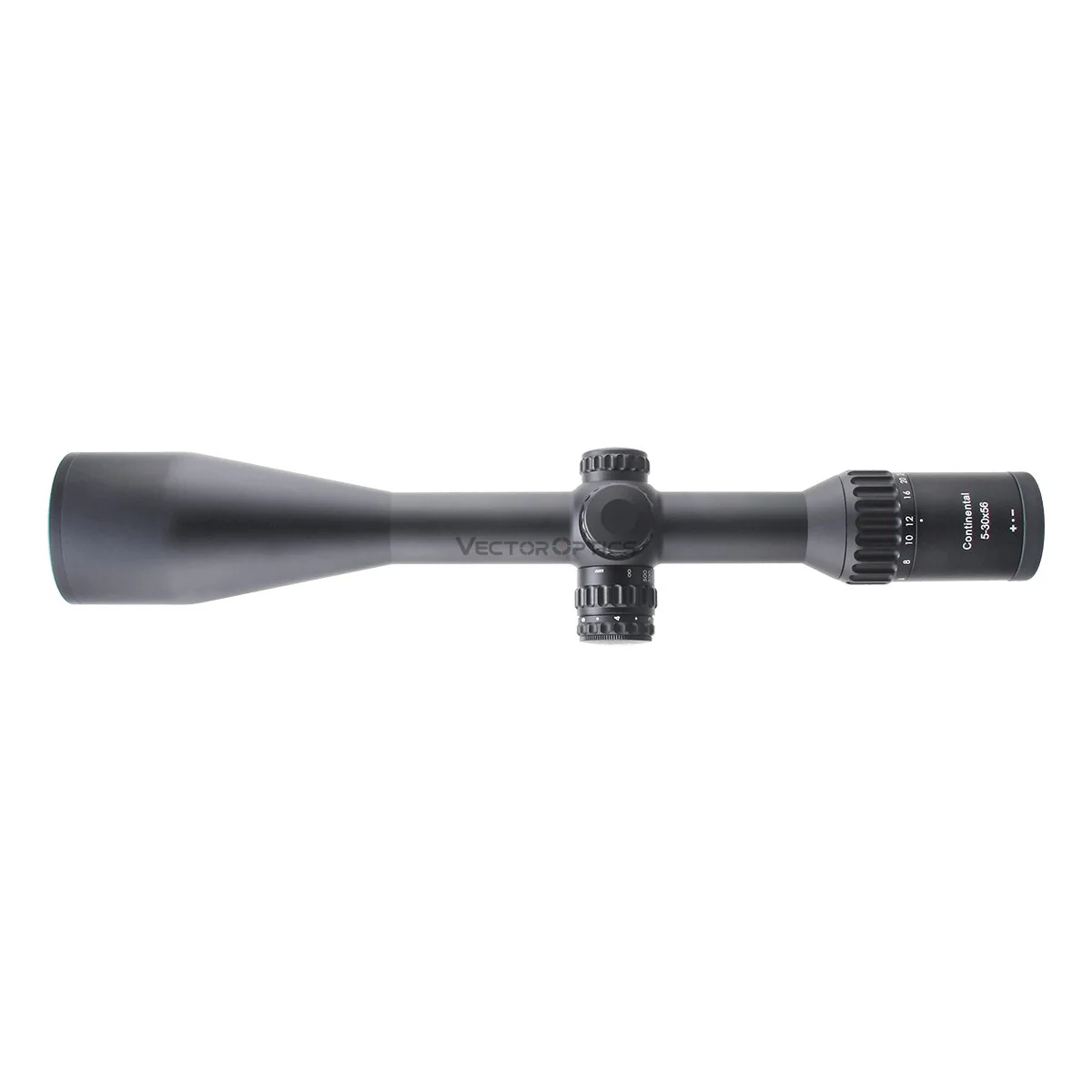

 Vector Optics Top Line Product That Can Compete Worldwide Famous Brand Optics

German Optical System with Crystal Clear Image, 30mm Monotube, True 6x Zoom Factor

Return-to-Zero Turret, Light Transmission Reaches to 90%, Focus Min 15 Yards to Infinite

Etched Glass Hunting BDC Reticle, Capped 1/4 MOA Adjust, HD Glass Reinforcement

Illuminated, With Spare Blank Exposed Elevation Turret for DIY Application, with Sunshade

Specification

· Magnification: 5-30x

· Objective Lens Dia.: 56mm

· Ocular Lens Dia.: 42mm (1.7in)

· Ocular Lens Length: 54mm (2.1in)

· Exit Pupil: 9.5-1.9mm

· Optics Coating: Fully-multi coat diamond clear

· Field of View: 24.9-4.2 Feet @ 100 yards

· Field of View: 8.3-1.4M @ 100 meters

· Eye Relief: 100mm (4.0in)

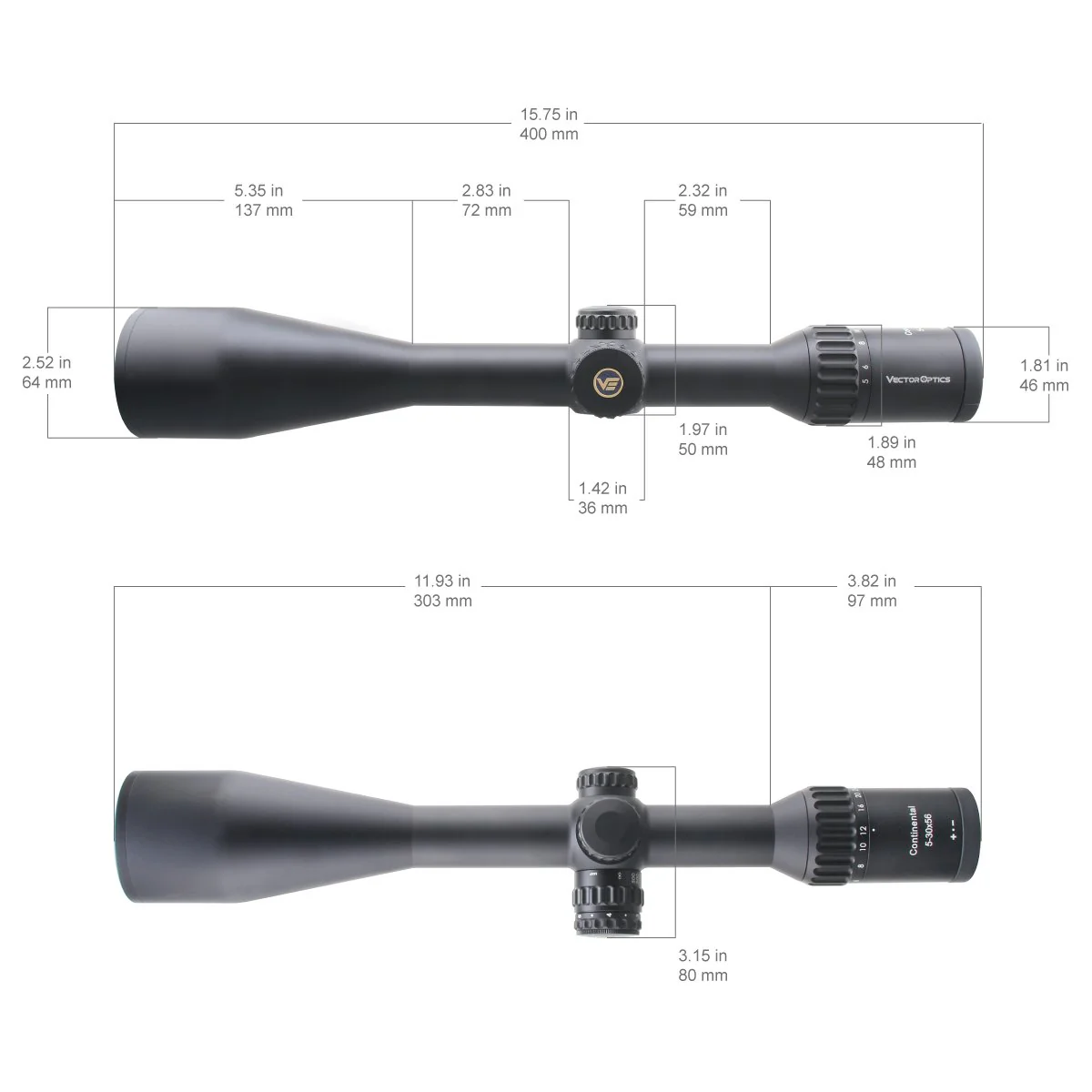

· Length: 400mm (15.7in)

· Weight: 630g (22.2oz)

· Tube Dia.:30mm Monotube

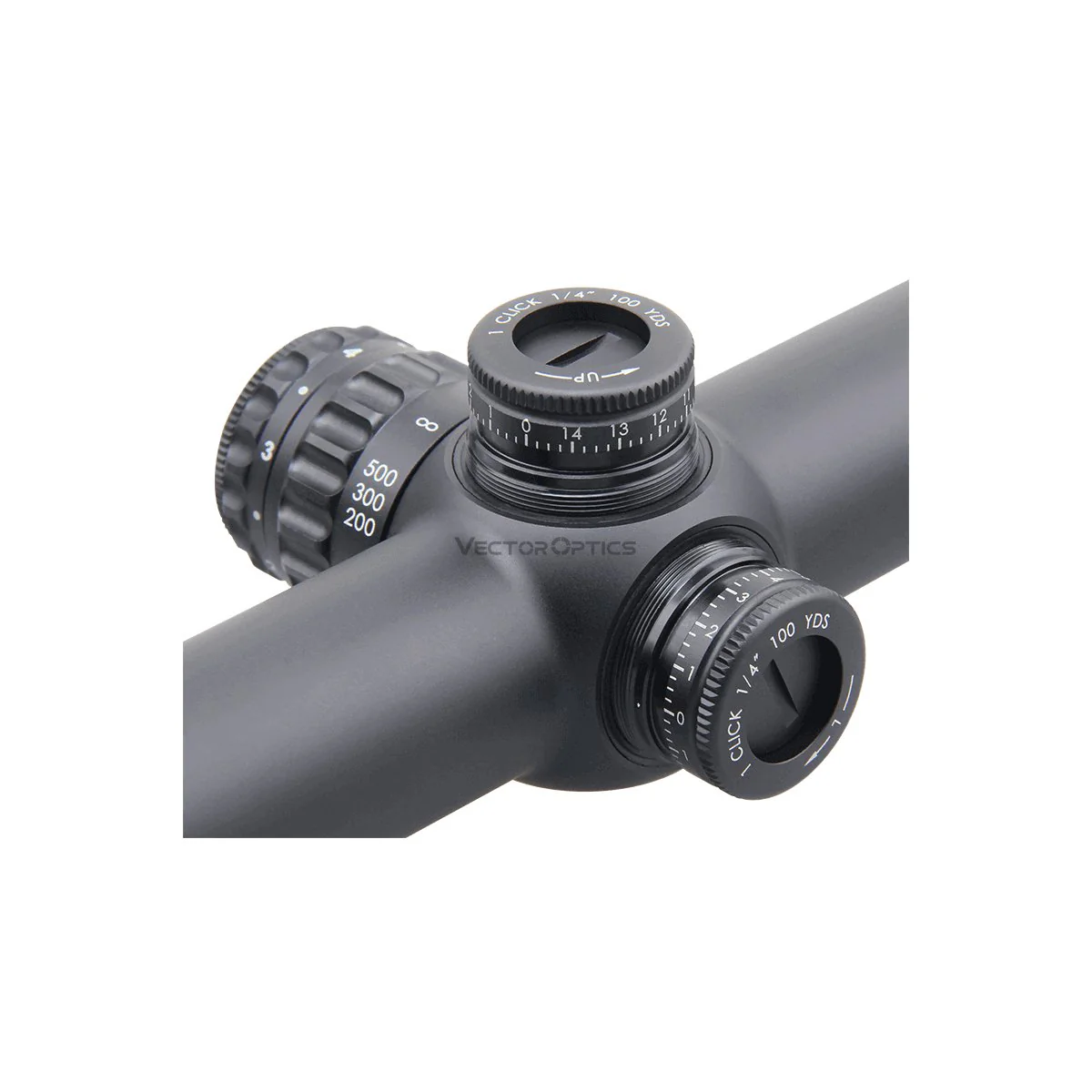

· Click Value: 1/4 MOA

· Elevation Range: 60MOA

· Windage Range: 60MOA

· Parallax Setting: 100 yards

· Side Focus:15 Yds to infinite

· Reticle: Etched glass VECON-CDM

· Illumination: Six gear

· Battery Type: CR2032

· Shock tested to 750g, IP67 water proof at 1m for 30 min

· Fully nitrogen purged to eliminate any fogging of the lenses internally

· Light transmission max reaches to 90%

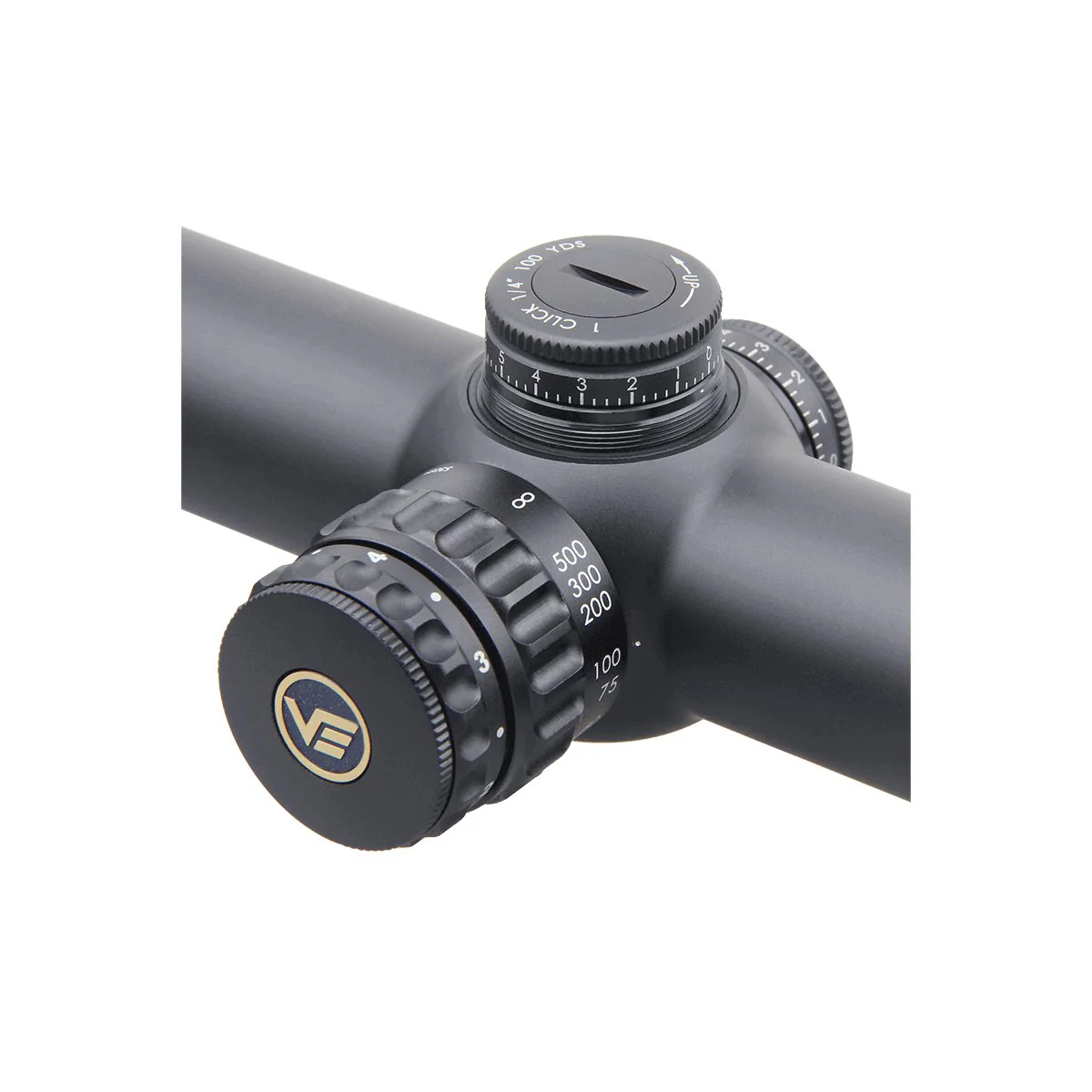

· Adjusting plate is NOT fixed, after zero the scope pull up the turret and re-set it to zero

· High quality 6061 T6 aircraft grade aluminum

· Focus mark: 15, 20, 30, 50, 75, 100, 200, 300, 500 and infinite

· Diopter compensation from fast-focus eyepiece (+2 to -3)

· With spare blank exposed elevation turret for custom DIY application

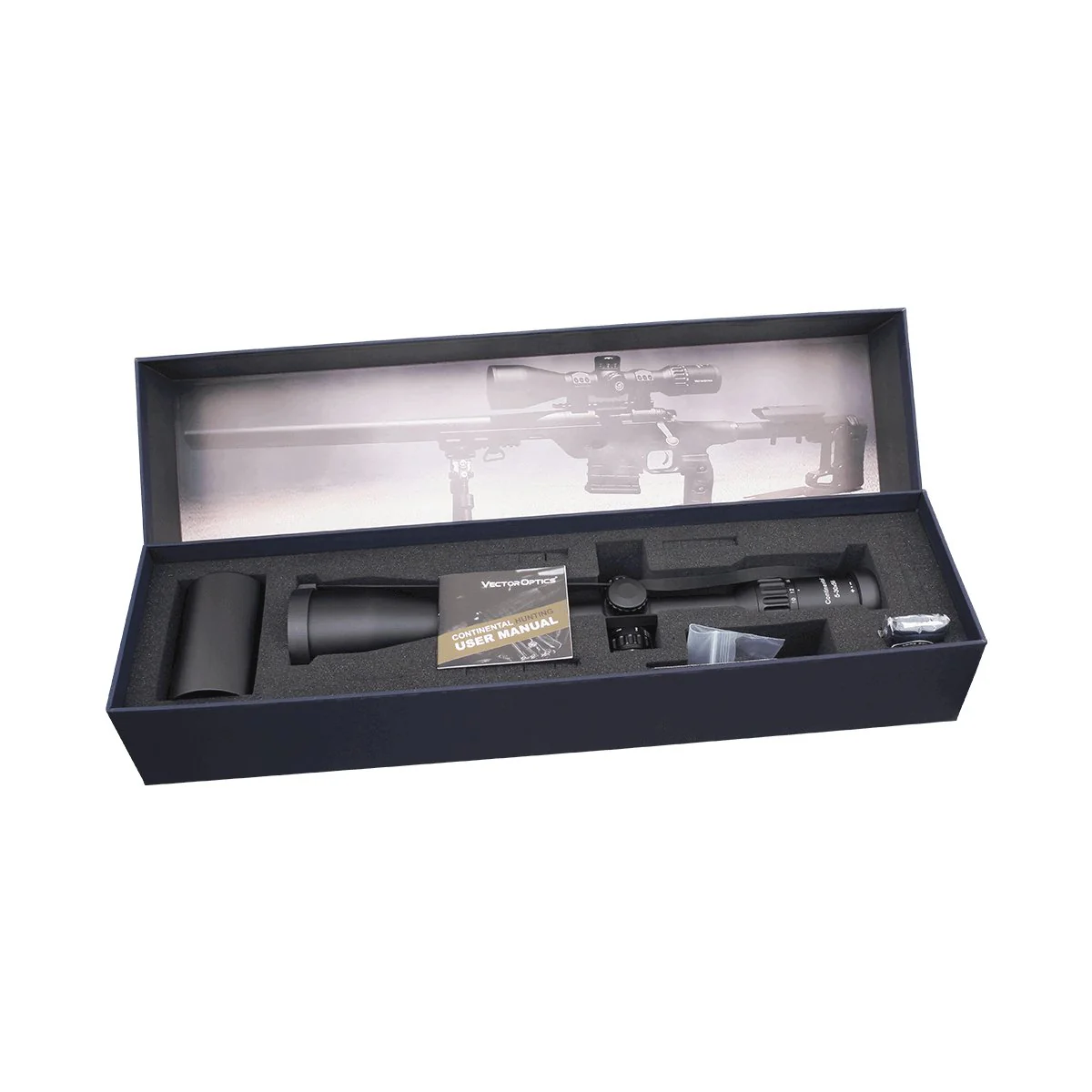

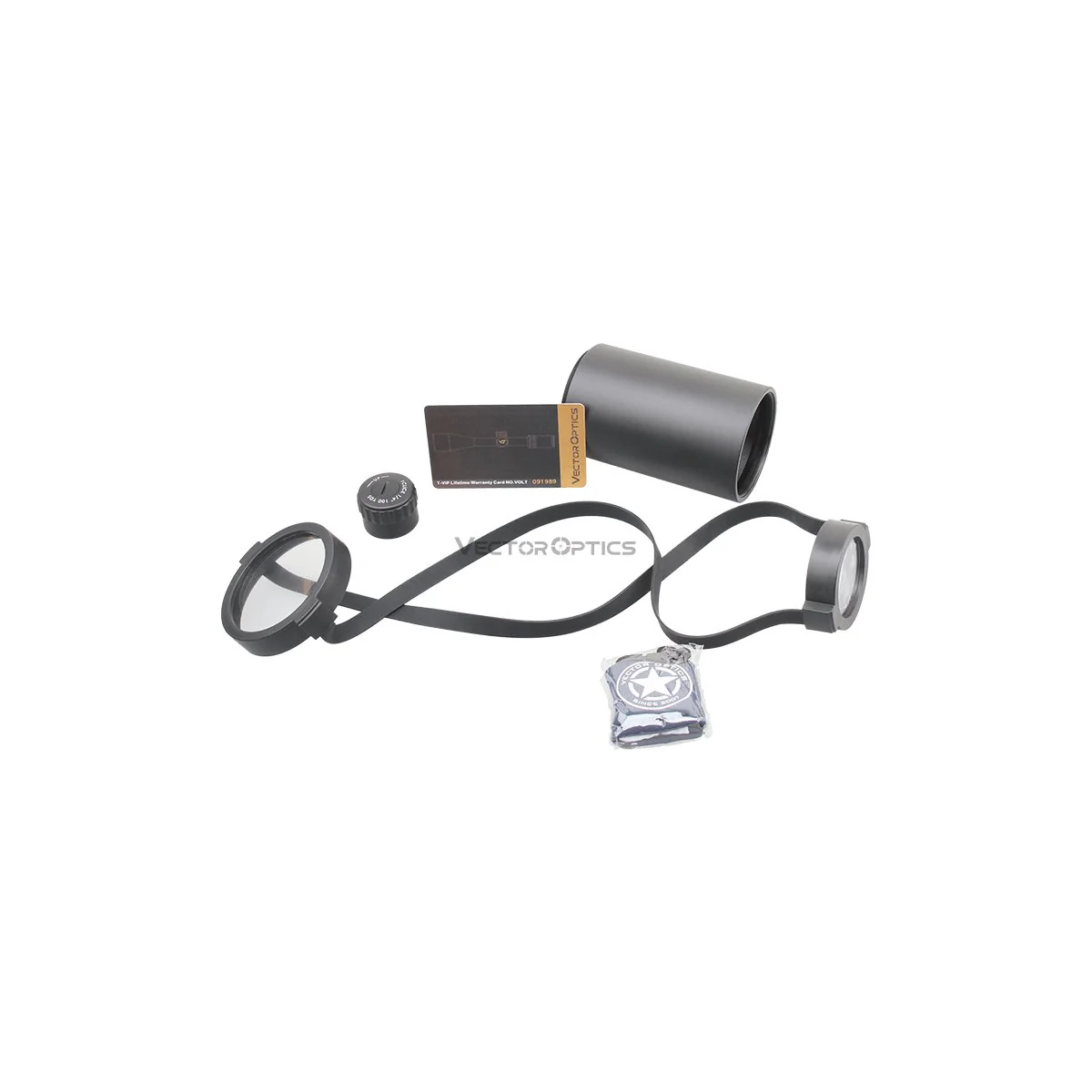

· Including accessories: 30mm picatinny scope rings, sunshade, lens caps and cleaning cloth etc.

Reticle
