Long-Range Precise Shooting | Orion Pro MAX 4-16x44 HD Rifle Scope (SCFF-59)
Feature
· Accurate Target Aiming: FFP MIL-Dot Reticle Pattern with 0.08 MIL Center Dot for Precise Long-Range Shooting, Ideal for Mountain Hunting
· Bright and Clear Imaging: LaREE HD Lens with Fully Multi-Coated Lens Ensures Bright and High-Contrast Images
· Precise Long-Range Adjustments: 30mm Monotube with Elevation Range to 32 MIL and 1/10 MIL Click Value for Precise Control

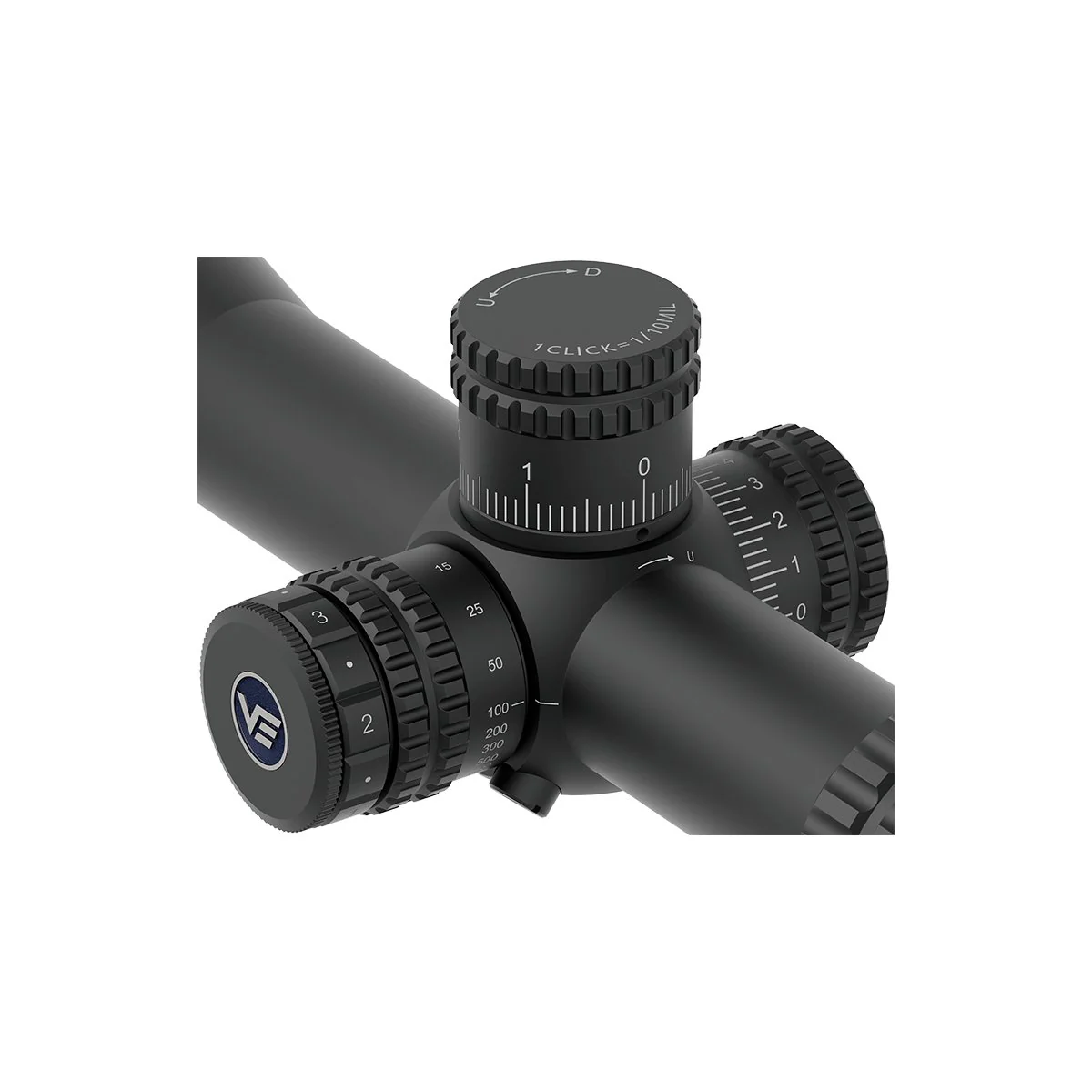

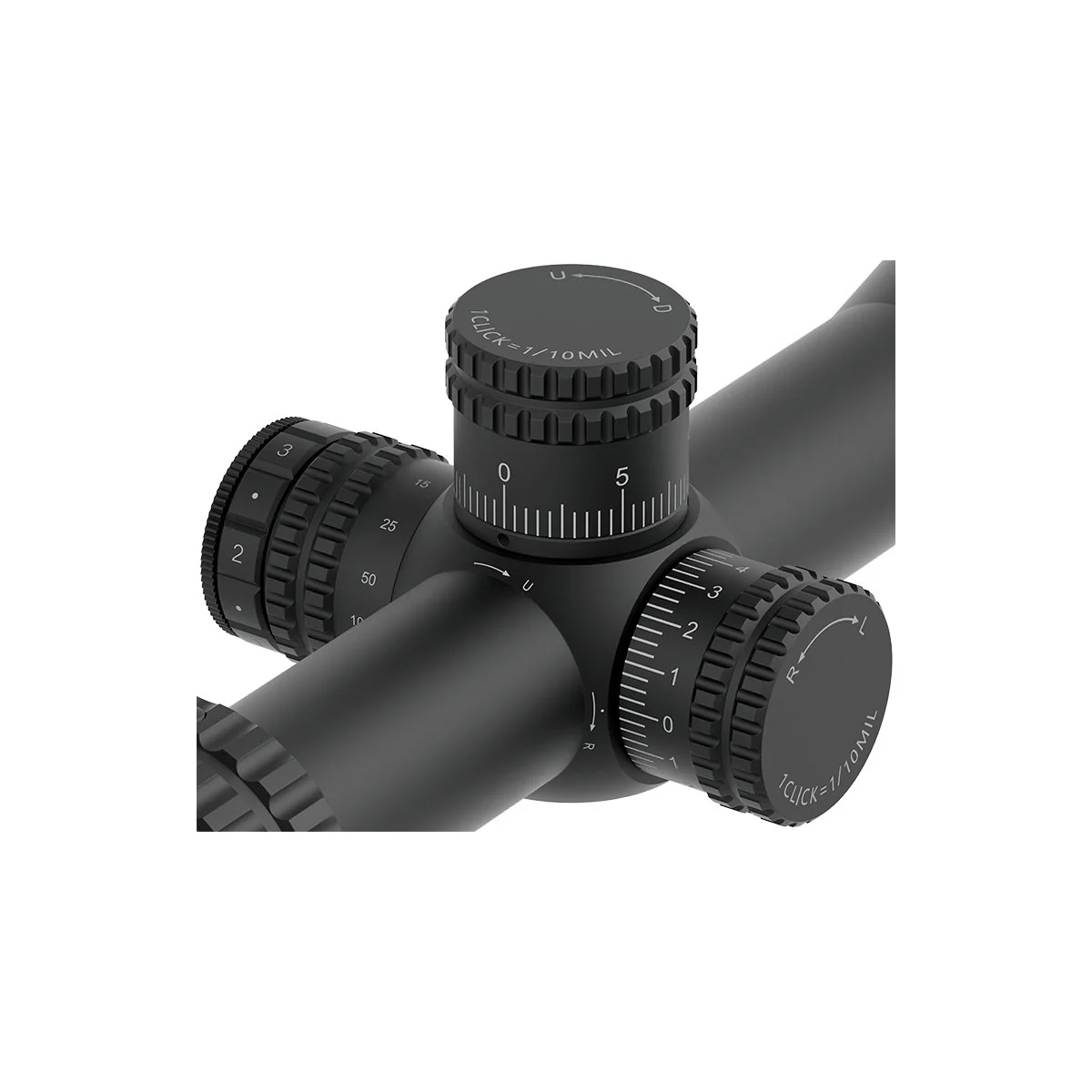

· Reliable and Secure Controls: Zero Stop Effortlessly Returns to Pre-Set Zero Point, 6-Gear Illumination Adaptable to Various Light Conditions
Specification
| Specification | Details |
|---|---|
| Magnification: | 4-16x |
| Objective Lens: | 44 mm |
| Focal Plane: | First Focal Plane |
| Eye Relief: | 95 mm |
| Exit Pupil: | 8-2.8 mm |
| Lens Coating: | Fully Multi-Coated |
| Linear Field of View @ 100 yd: | 28.8-6.8 ft @ 100 yards |
| Linear Field of View @ 100 m: | 9.6-2.2 m @ 100 meters |
| Angular Field of View: | 5.5-1.3° |
| Reticle: | VOR-4 MIL |
| Tube Dia: | 30 mm |
| Side Focus: | 10 yards to Infinity |
| Click Value: | 1/10 MIL |
| Turret Function: | Zero Stop, Turret Lock |
| Elevation Adjustment Range: | 32 MIL |
| Windage Adjustment Range: | 18 MIL |
| Diopter Compensation: | +2 to -2 |
| Illumination Setting: | 6 Gears, On/Off Switch |
| Battery Type (Not Include): | CR2032 |
| Waterproof: | IPX4 |
| Fogproof: | Nitrogen Filled |
| Shockproof: | 750 G |
| Housing Material: | 6061 T6 Aluminum Alloy |
| Finish: | Matte Black |

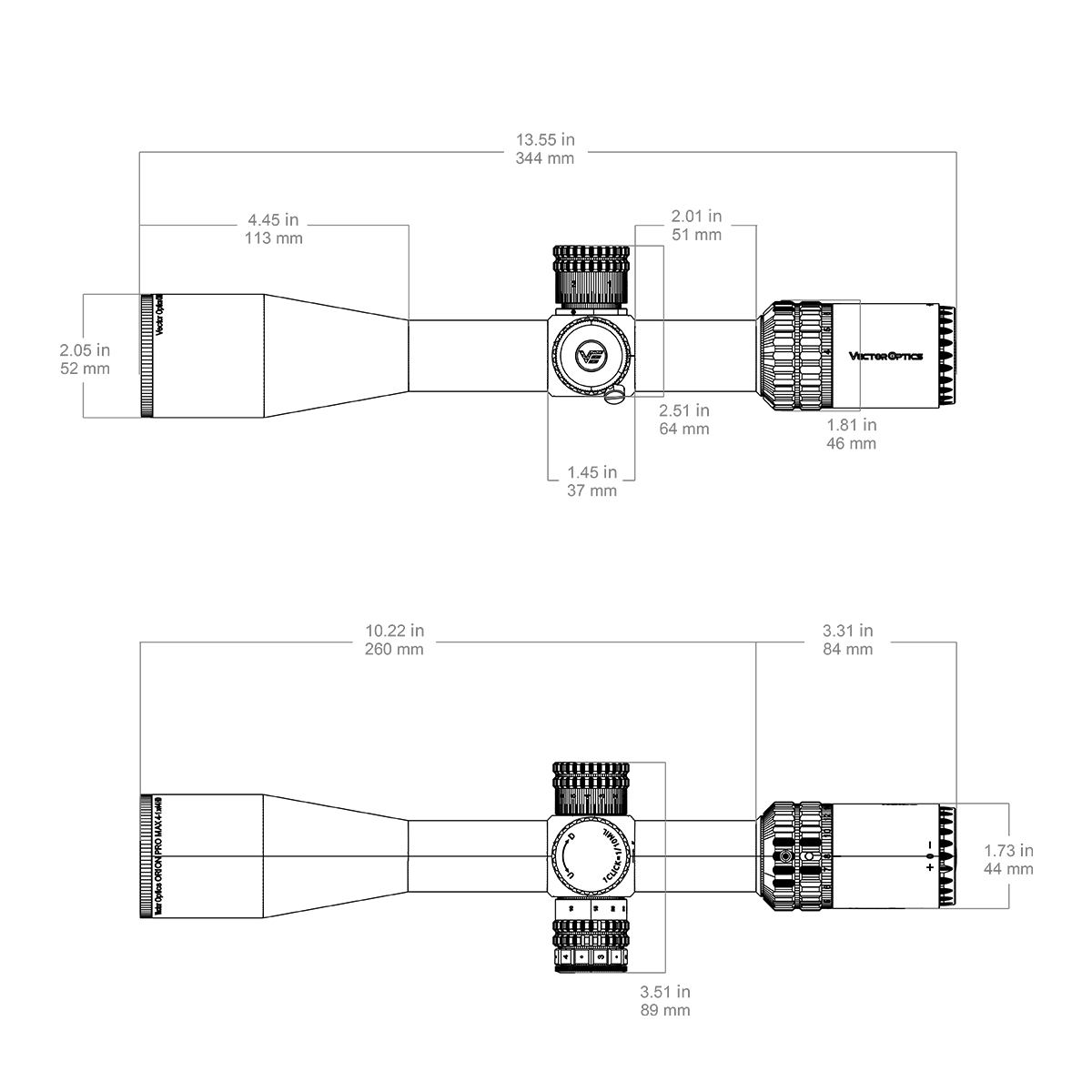

| Length: | 343 mm / 13.5 in |
| Weight (net): | 756 g / 26.6 oz |

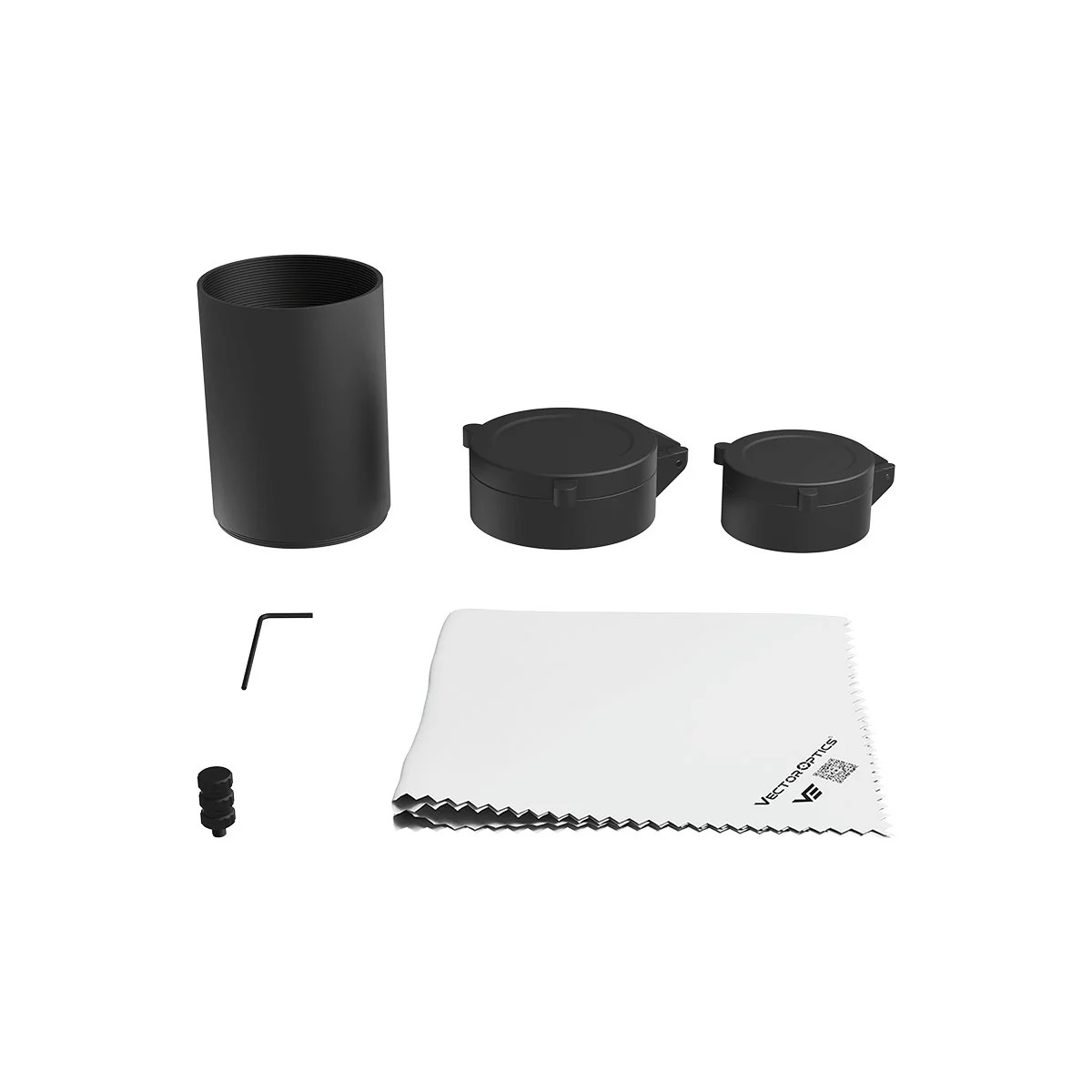

| Items in the Package: | User Manual, Cleaning Cloth, Flip-up Caps, Hex Keys, Sunshade, Power Throw Lever,etc. |
Video
Reticle
Compatible Gun Type
For Long-Range: Tikka T1x / T3 / T3x (.22LR / .308), Remington 700 / 783 (.223), Sako, Anschutz, Howa, FX Impact M3 / MKII
For Mountain Hunting: Tikka T3x Lite, Sako 85 / Remington 700, Howa Mini Action
