PRODUCT FEATURE

SCRD-63

· Precise Target Control: 3 MOA Dot Covers Minimal Target Area About the Height of a Lighter at 100 Yards for Accurate Shot Placement

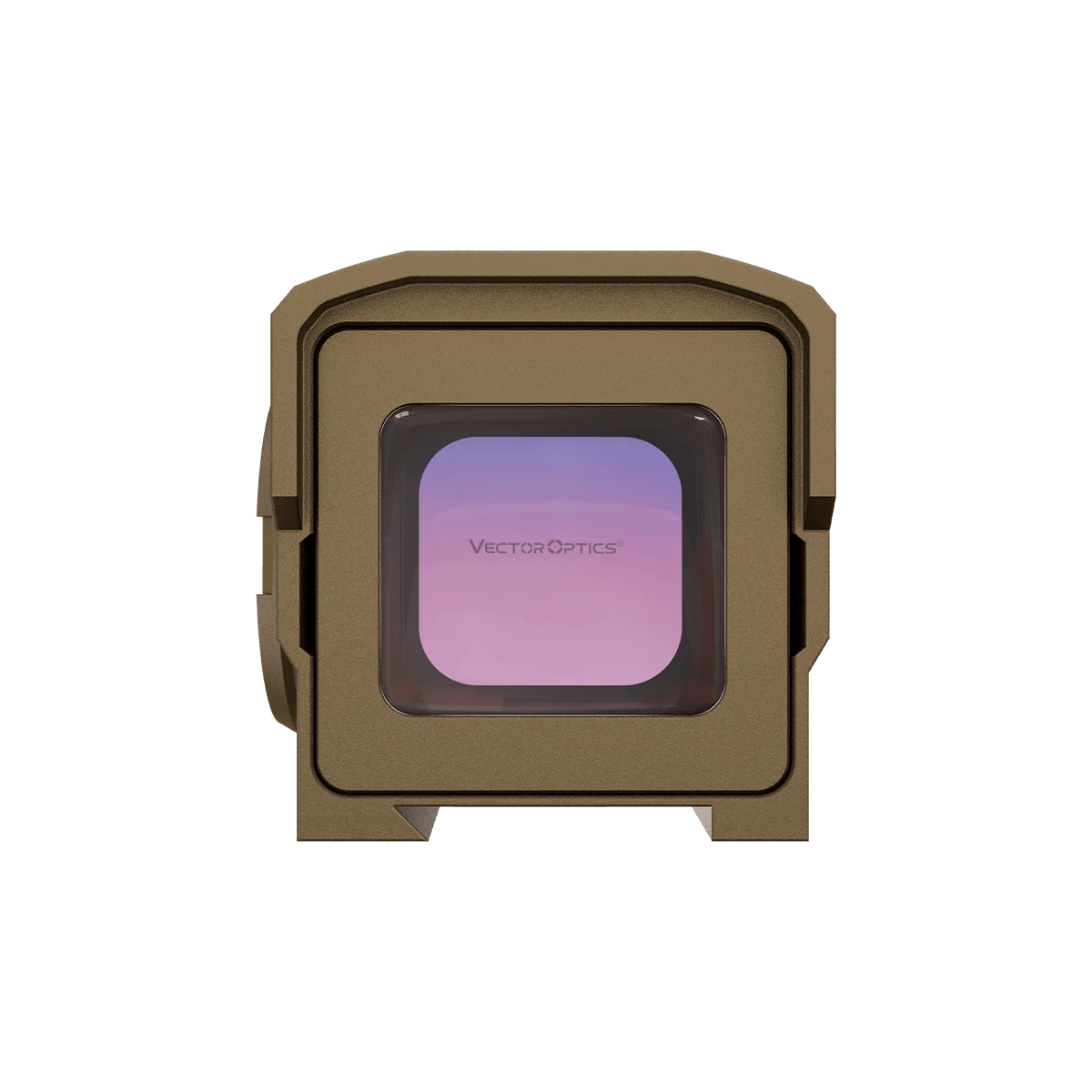

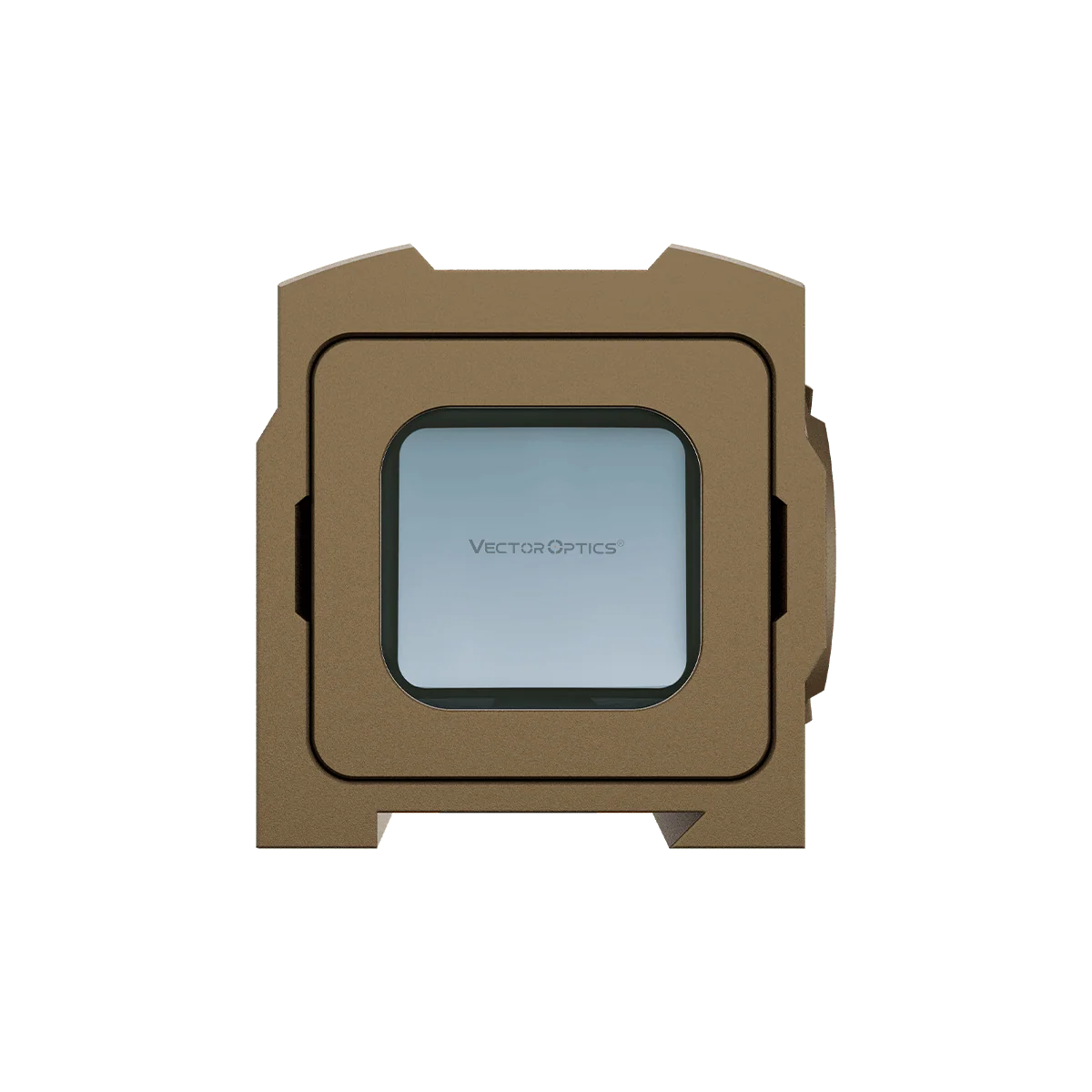

· Clear Enclosed Viewing: Enclosed Red Dot Design with 18 × 20 mm / 0.7 × 0.8 in Window Provides Protected and Clear Sight Picture

· Adaptive Reticle Brightness: 8-Level Red Illumination w/ 2 NV Modes Adjusts Easily Across Different Background and Lighting Conditions

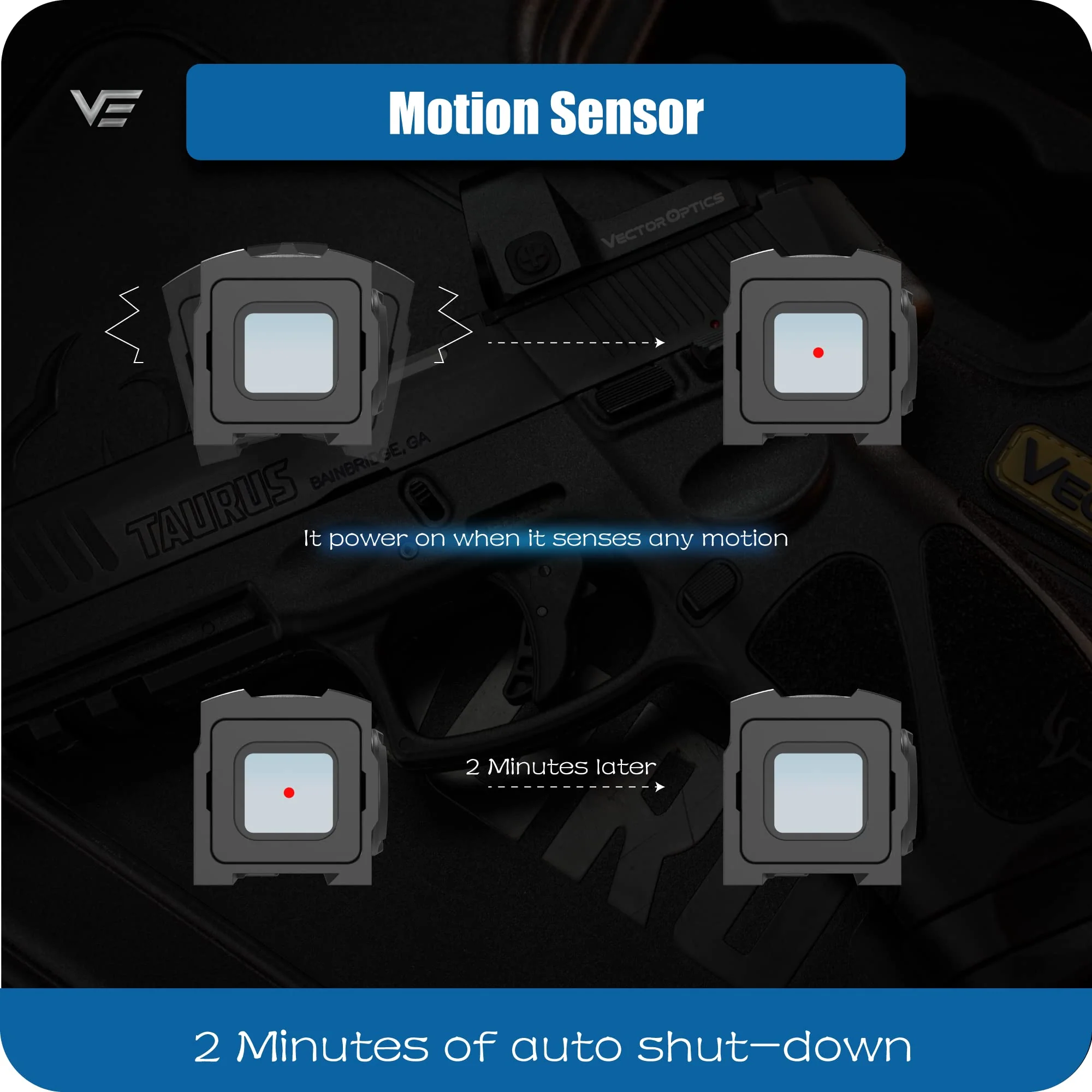

· Automatic Power Activation: Motion Sensor Turns Sight On and Off Eliminating the Need to Manual Switching During Use Smoothly

· All-Weather Performance: IP67 Waterproof Enclosed Structure Ensures Reliable Performance in Rain Dust and Harsh Outdoor Conditions

· Recoil-Ready Performance: Durable Construction Handles Recoil from 9mm .223 5.56 .308 12GA and .338 Lapua Platforms with stability

· Broad Platform Compatibility: VOD Footprint Compatible w/ the ACRO® Pattern, Fits Directly Aimpoint® Acro C-1/C-2/P-1/P-2, ect

SCRD-F63

· Precise Target Control: 3 MOA Dot Covers Minimal Target Area About the Height of a Lighter at 100 Yards for Accurate Shot Placement

· Clear Enclosed Viewing: Enclosed Red Dot Design with 18 × 20 mm / 0.7 × 0.8 in Window Provides Protected and Clear Sight Picture

· Adaptive Reticle Brightness: 8-Level Red Illumination w/ 2 NV Modes Adjusts Easily Across Different Background and Lighting Conditions

· Automatic Power Activation: Motion Sensor Turns Sight On and Off Eliminating the Need to Manual Switching During Use Smoothly

· All-Weather Performance: IP67 Waterproof Enclosed Structure Ensures Reliable Performance in Rain Dust and Harsh Outdoor Conditions

· Recoil-Ready Performance: Durable Construction Handles Recoil from 9mm .223 5.56 .308 12GA and .338 Lapua Platforms with stability

· Broad Platform Compatibility: VOD Footprint Compatible w/ the ACRO® Pattern, Fits Directly Aimpoint® Acro C-1/C-2/P-1/P-2, ect

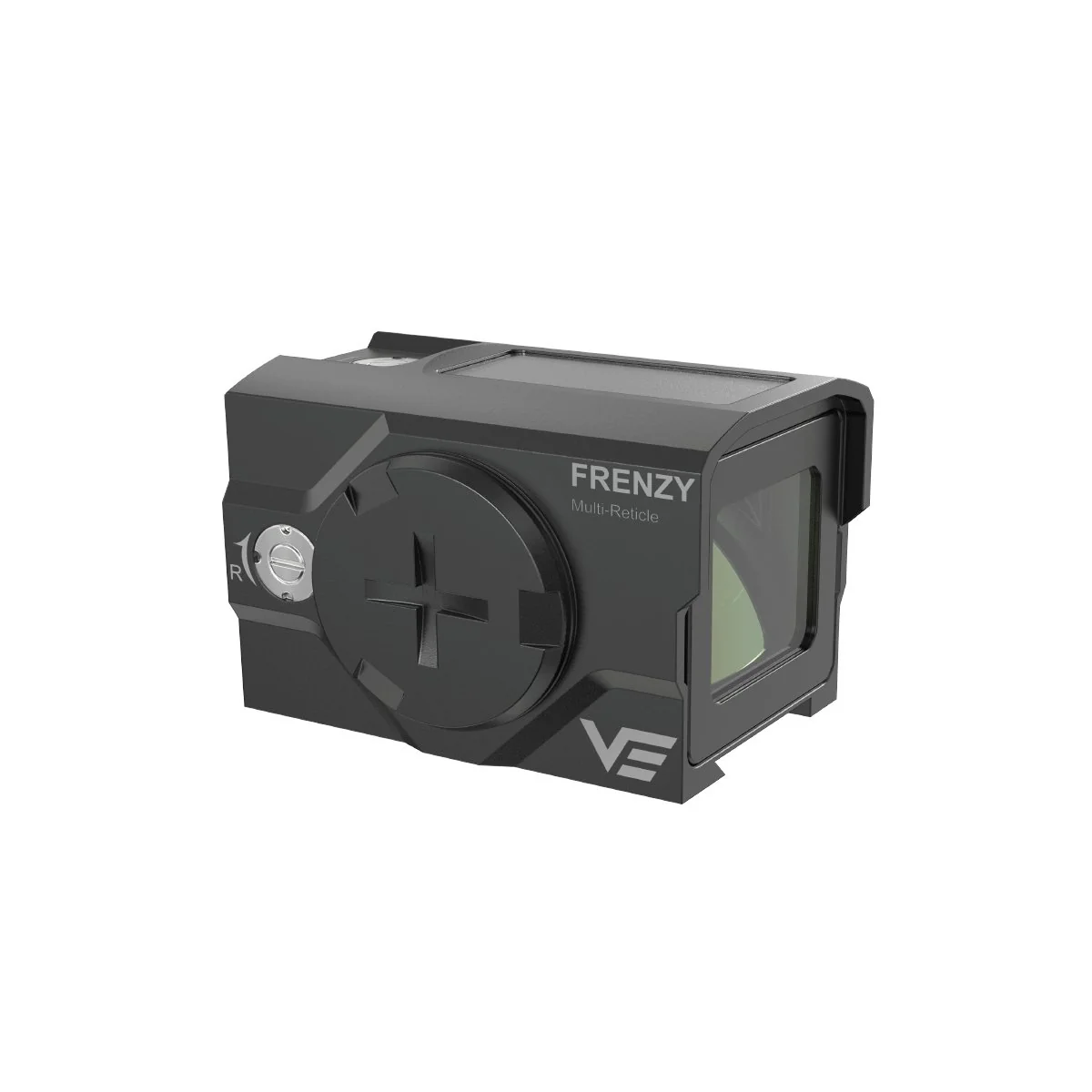

SCRD-SM63

· Versatile Reticle Selection: Multi Reticle Options w/ 3 MOA Dot, Circle and Crosshair Supports Different Shooting Styles and Preferences

· Adaptive Light Brightness: 8-Level Red Illumination with 2 NV Modes Adjusts Clearly Across Changing Background and Lighting Conditions

· Automatic Power Activation: Motion Sensor Turns Sight On and Off Eliminating the Need to Manually Switch  During Use Smoothly

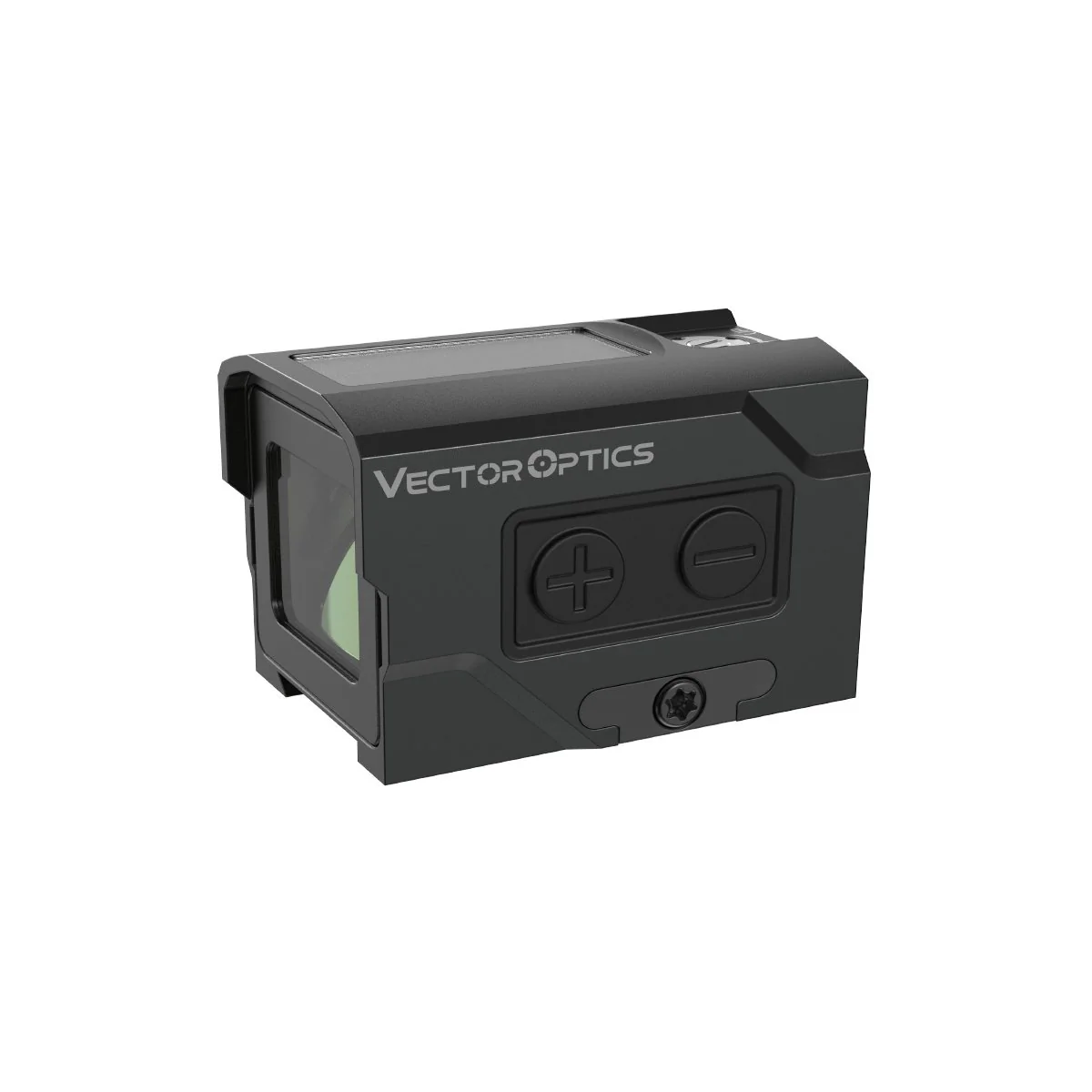

· Solar Backup Support: Integrated Solar Panel Uses Sunlight as Backup Power Source When Battery Runs Low in Various Conditions

· Rugged Weather Protection: IP67 Waterproof Enclosed Structure Ensures Reliable Performance in Rain Dust and Harsh Outdoor Conditions

· Recoil-Ready Durability: High Shock Resistance Handles Recoil from 9mm .223 .308 5.56 12GA and .338 Platforms with Stability Control

·  Broad Platform Compatibility: VOD Footprint Compatible w/ the ACRO® Pattern, Fits Directly Aimpoint® Acro C-1/C-2/P-1/P-2, ect

SPECIFICATION

See our Terminology Guide for detailed explanations of each specification.

 SCRD-63

Specification	Details
Magnification:	N/A
Window Lens Size:	18x20mm / 0.7x0.8in
Mount Length:	46mm / 1.8in
Width:	32mm / 1.2in
Height:	34mm / 1.3in
Weight (net):	81g / 2.9oz
Eye Relief:	Free

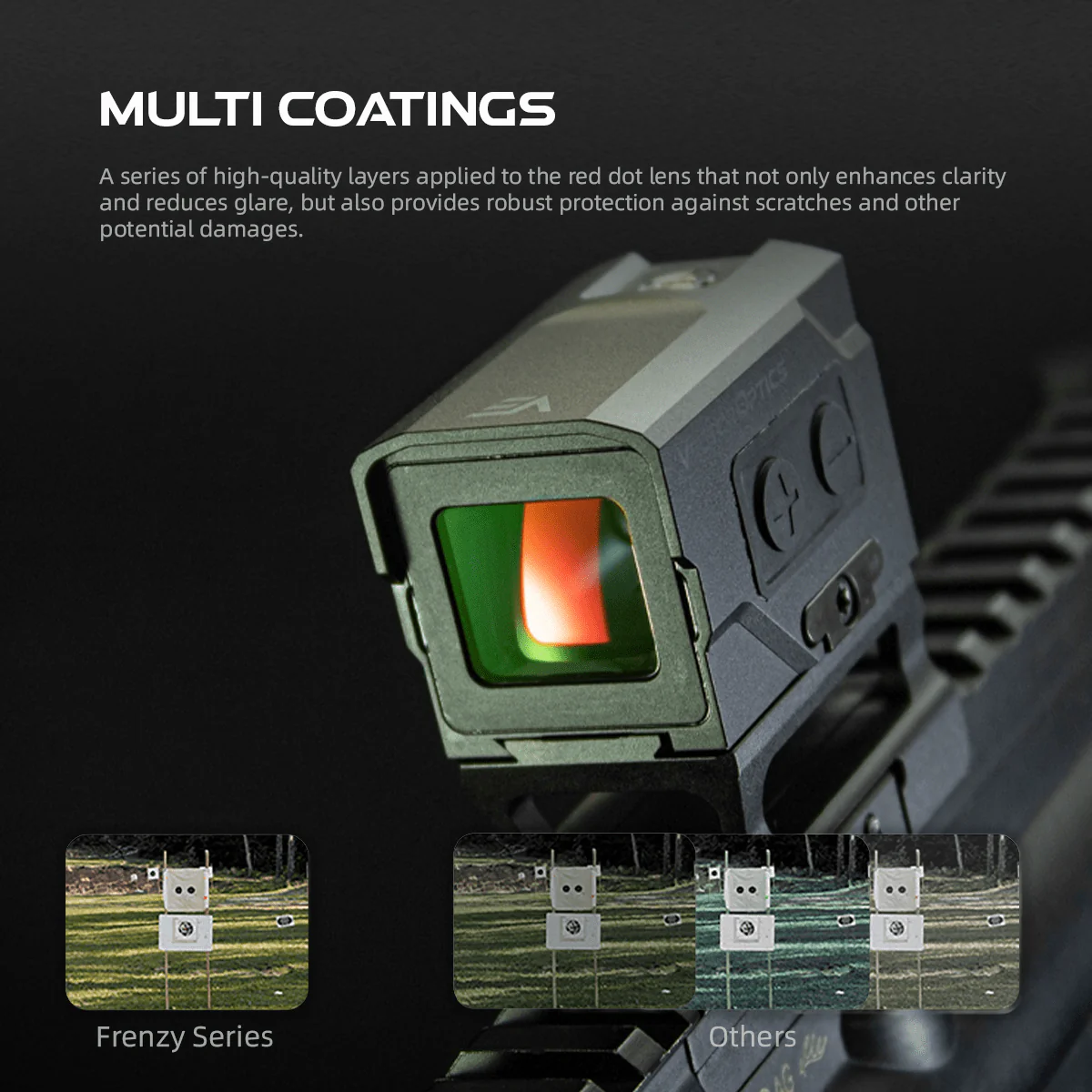

Optics Coating:	Multi Coated
Parallax:	Free (<2MOA)
Parallax Setting:	100 yards
Adjustment Range:	>45MOA
Dot Size:	3MOA
Dot Intensity:	8 Levels & 2 NV
Click Value:	1MOA
Working Temperature:	-20~+55C
Housing Material:	6061-T6 aluminum alloy
Battery Type (Not Include):	CR2032
Battery Runtime:	50,000 hours (the lowest visible dot)
Finish:	Black matte

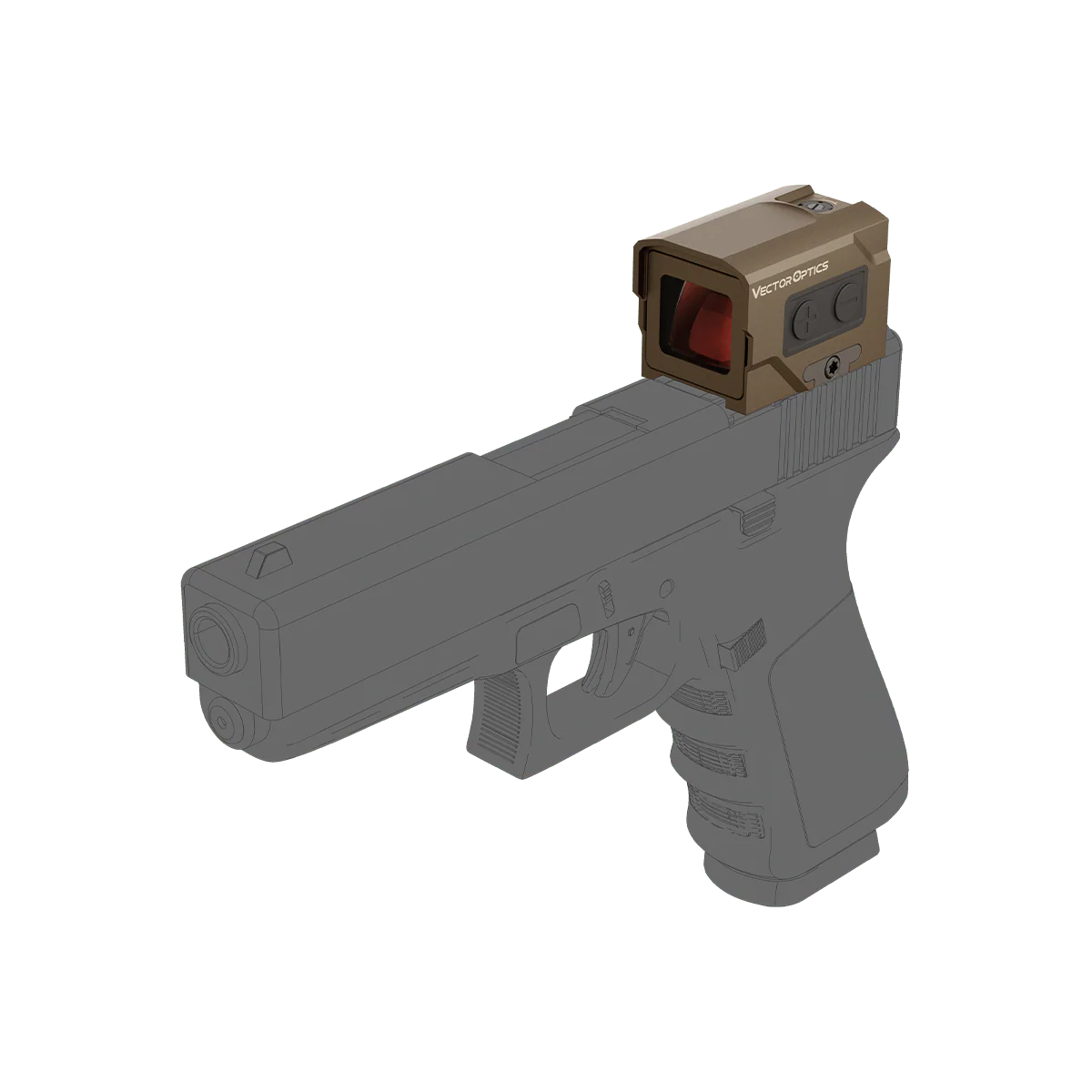

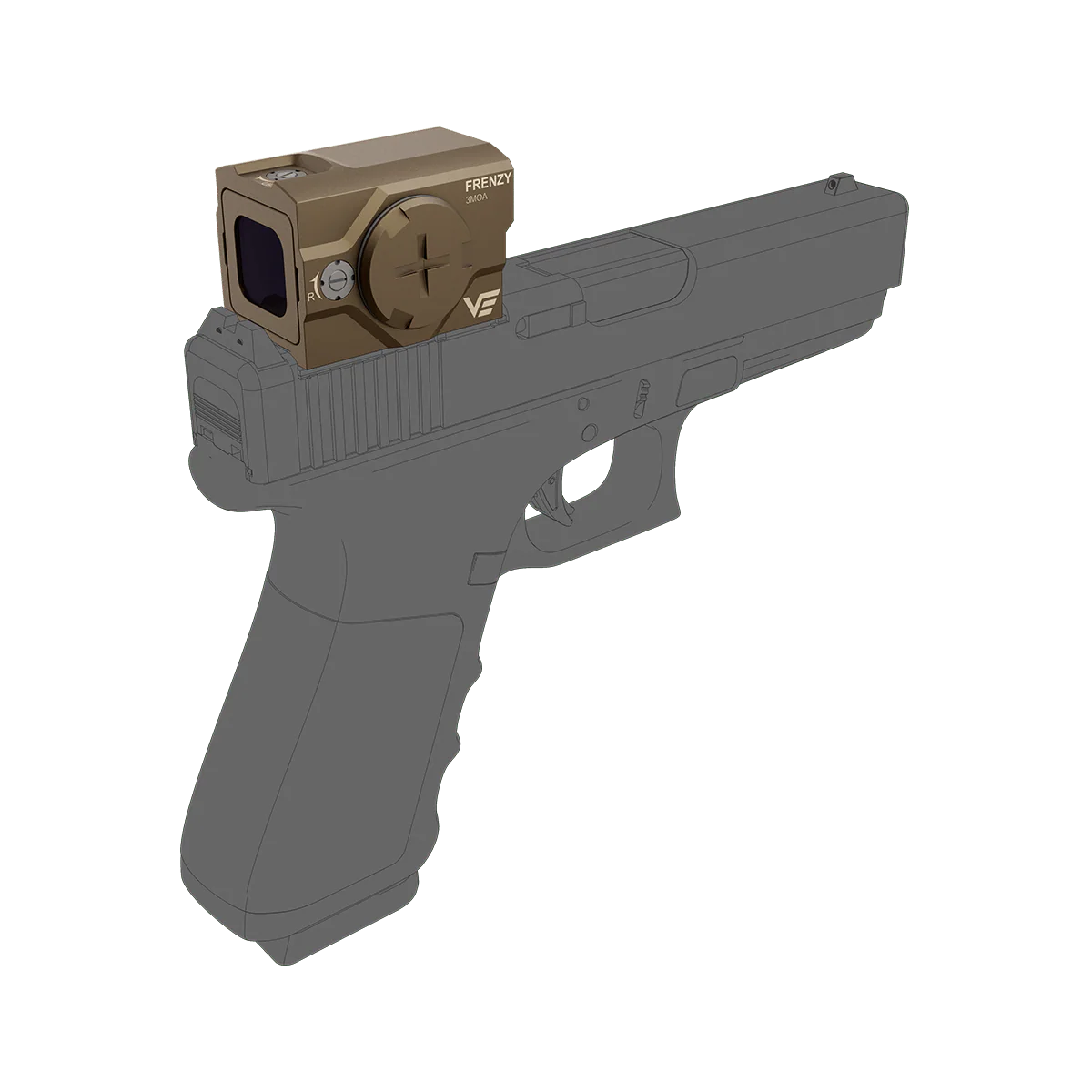

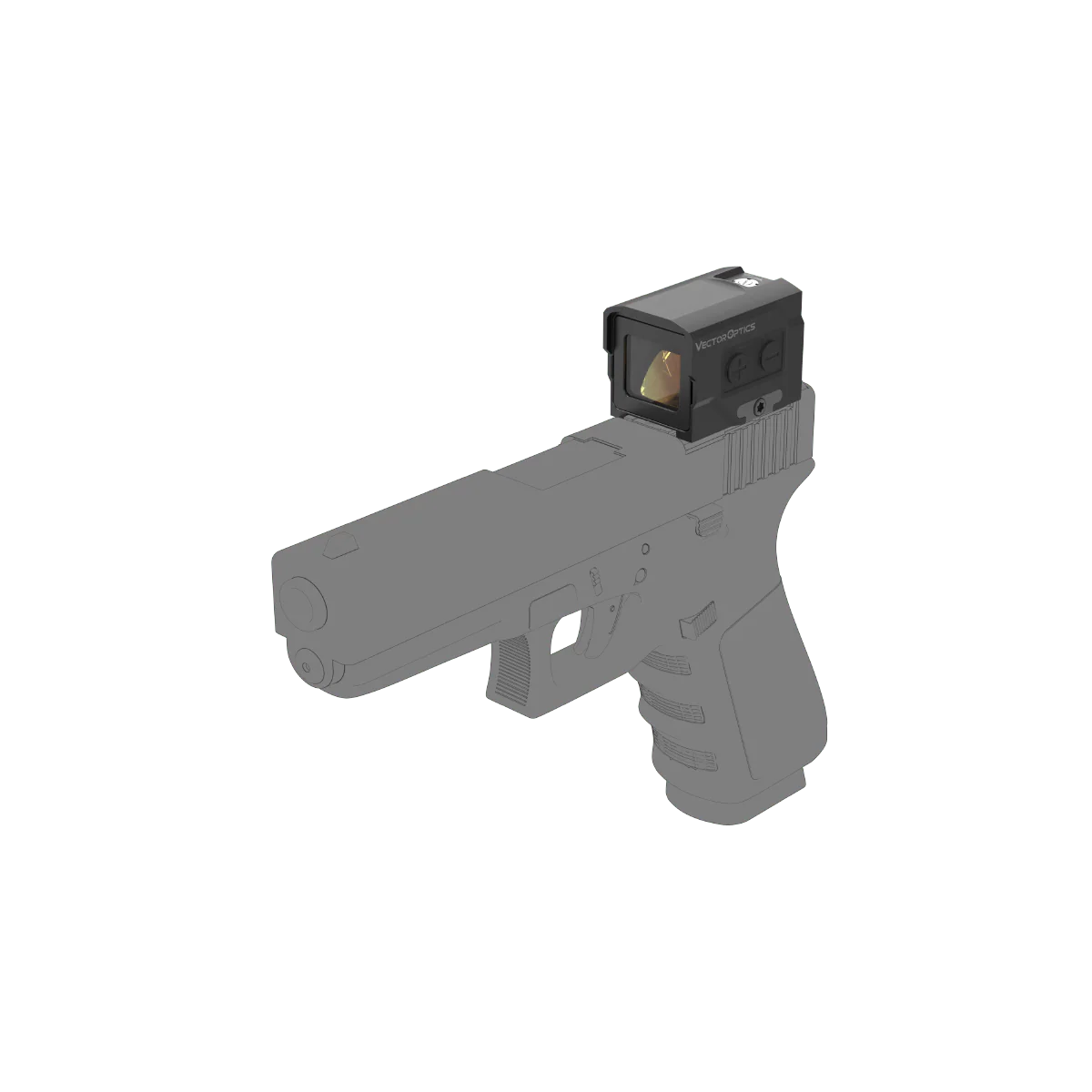

Mounting:	VOD footprint, compatible with ACRO footprint

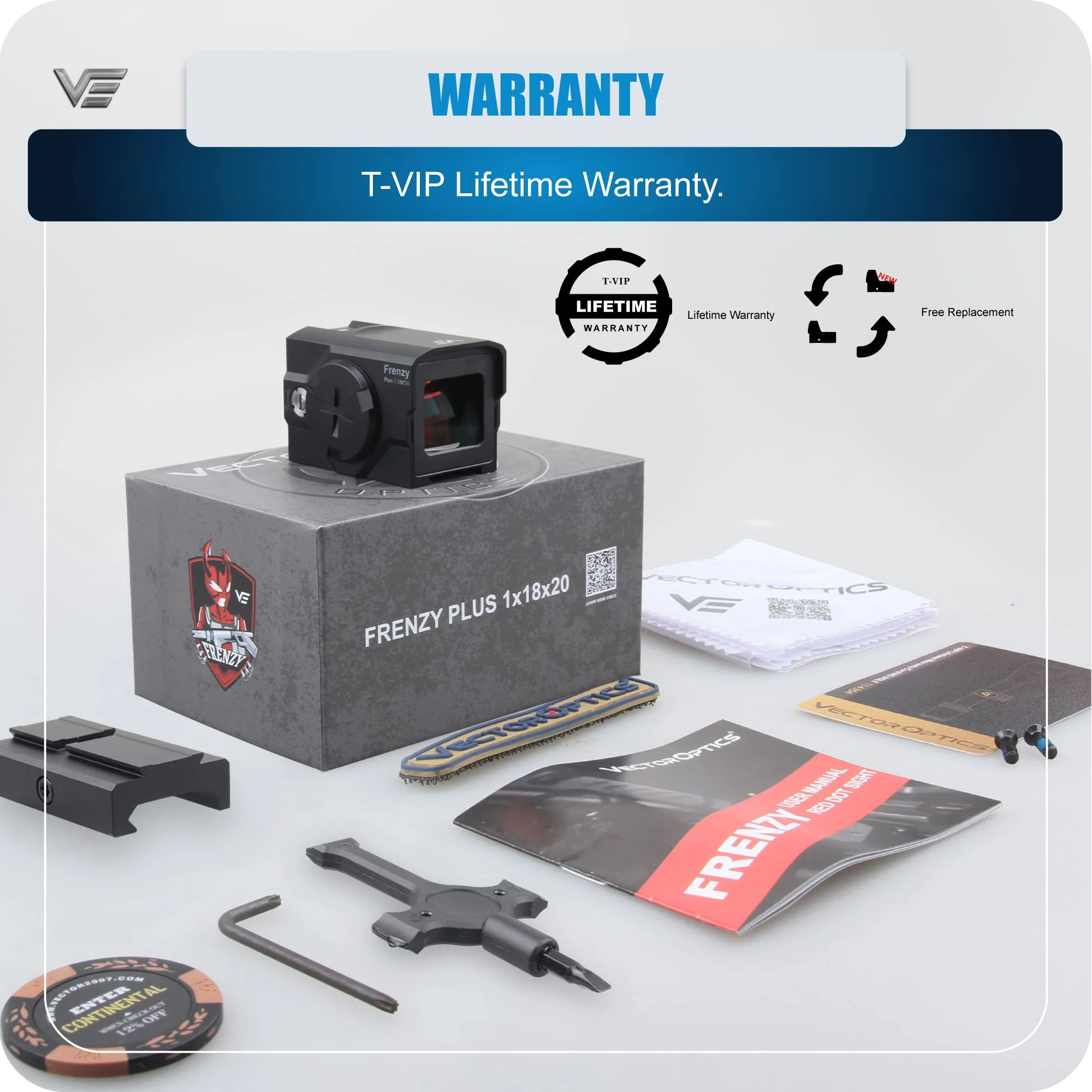

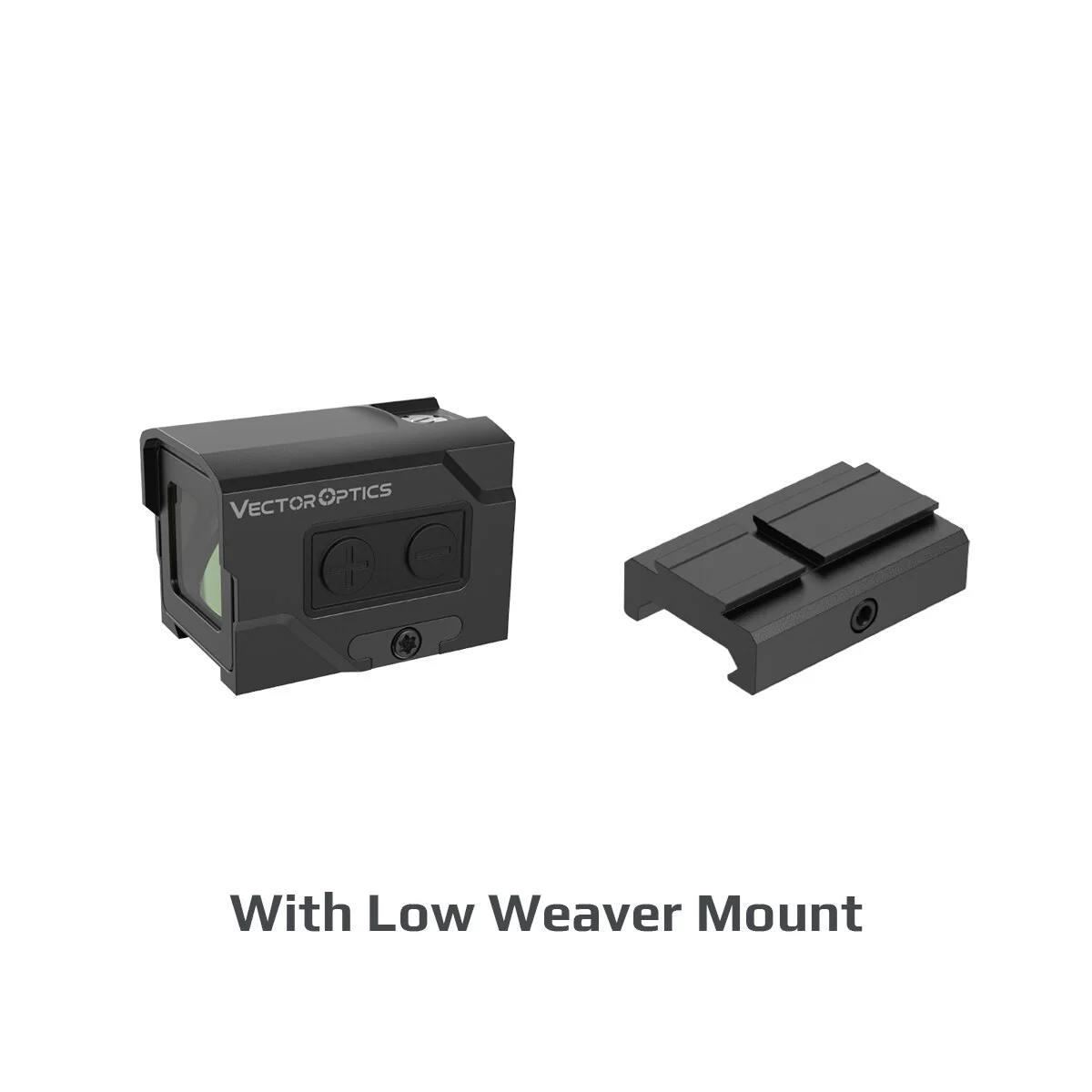

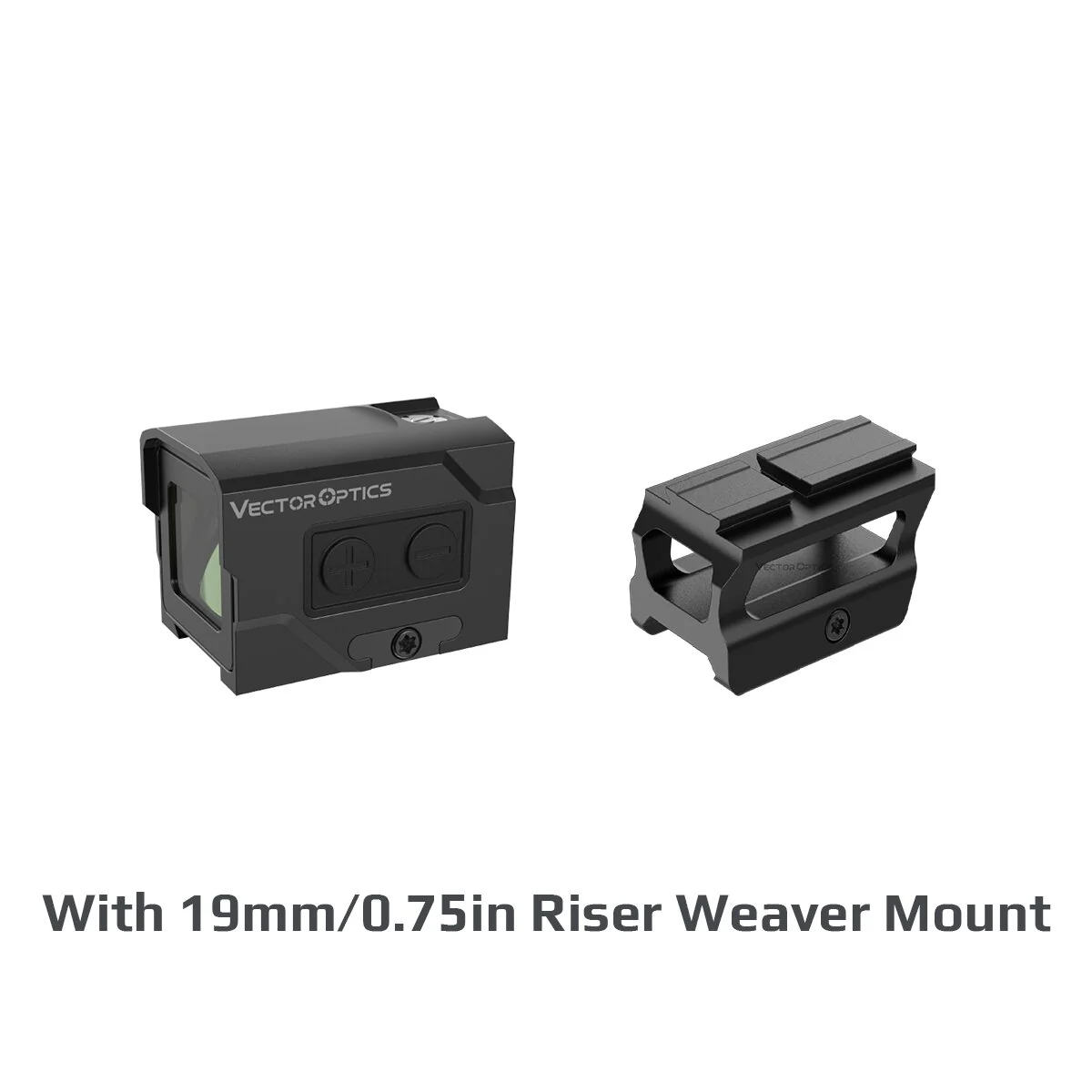

Package includes:	low weaver mount, retail package, hex keys and cleaning cloth etc

SCRD-F63

Specification	Details
Magnification:	N/A
Window Lens Size:	18x20mm / 0.7x0.8in
Mount Length:	46mm / 1.8in
Width:	32mm / 1.2in
Height:	34mm / 1.3in
Weight (net):	83g / 2.9oz without mount
Eye Relief:	Free
Optics Coating:	Multi Coated
Parallax:	Free (<2MOA)
Parallax Setting:	100 yards
Adjustment Range:	>45MOA
Dot Size:	3MOA
Dot Intensity:	8 Levels & 2 NV
Click Value:	1MOA
Working Temperature:	-20~+55C
Housing Material:	6061-T6 aluminum alloy
Motion Sensor:	Yes
Battery Type (Not Include):	CR2032
Battery Runtime:	50,000 hours (the lowest visible dot)

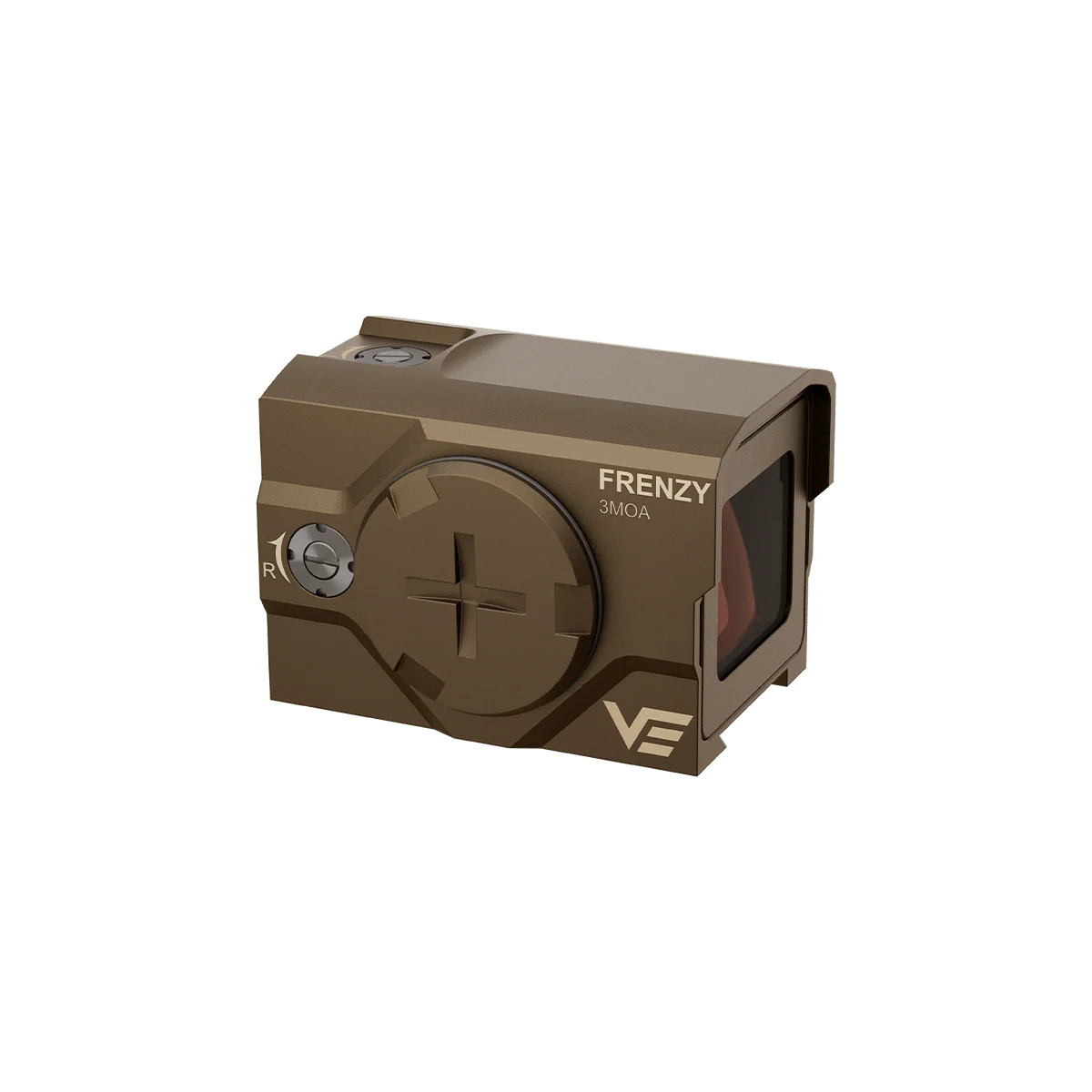

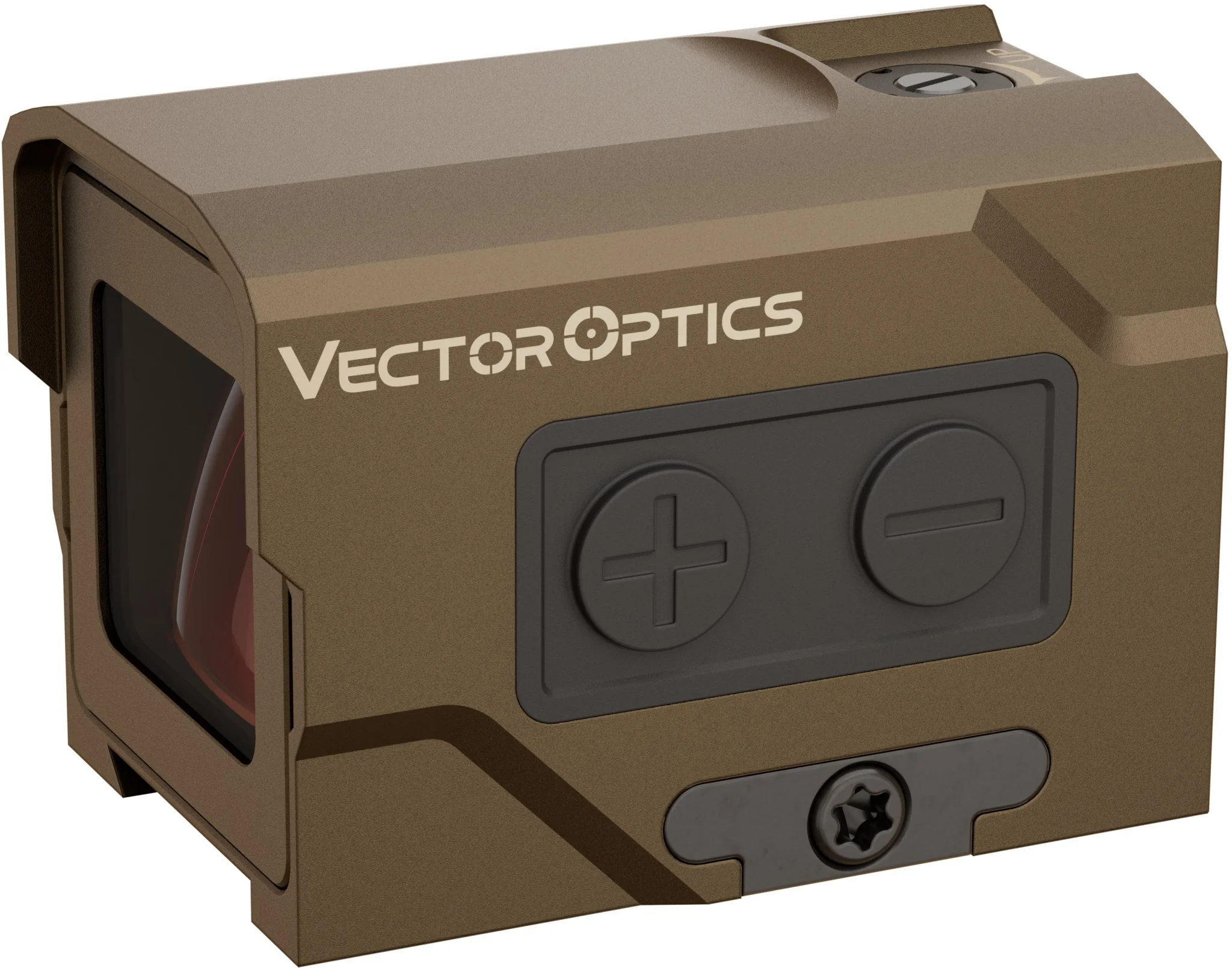

Finish:	FDE
Mounting:	VOD footprint, compatible with ACRO footprint
Package includes:	low weaver mount, retail package, hex keys and cleaning cloth etc

SCRD-SM63

Specification	Details
Magnification:	N/A
Window Lens Size:	18x20mm / 0.7x0.8in
Mount Length:	46mm / 1.8in
Width:	32mm / 1.2in
Overall Height:	34mm / 1.3in
Weight (net):	81g / 2.9oz
Eye Relief:	Free
Optics Coating:	Multi Coated
Parallax:	Free (<2MOA)
Parallax Setting:	100 yards
Adjustment Range:	>45MOA
Reticle:	2MOA Dot, Dot with Circle, Circle
Dot Intensity:	8 Levels & 2 NV
Click Value:	1MOA
Working Temperature:	-20~+55C
Housing Material:	6061-T6 aluminum alloy
Battery Type (Not Include):	CR2032
Battery Runtime:	50,000 hours (the lowest visible dot)
Finish:	Black matte
Mounting:	VOD footprint, compatible with ACRO footprint
Package includes:	low weaver mount, retail package, hex keys and cleaning cloth etc

RETICLE

SCRD-SM63

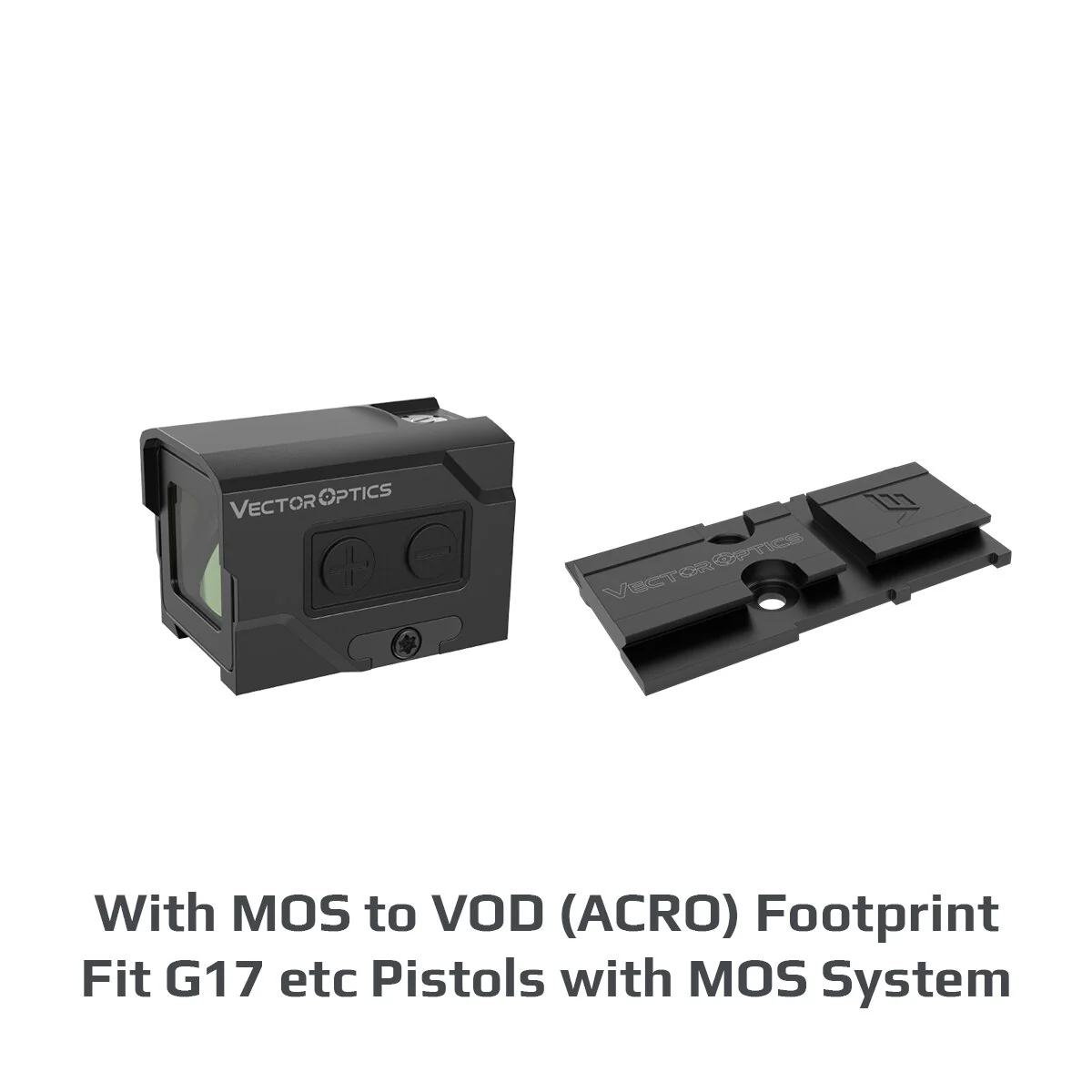

FOOTPRINT

VOD Footprint

· Compatible Industry Standard: ACRO®

· Original Compatible Pistol Optics-Ready (O.R.) Model:  Aimpoint® Acro C-1/C-2/P-1/P-2 , Steiner® MPS, Viridian® RFX 44 and RFX 45, ect.

For more information about FOOTPRINT, please refer to the blog.
