Feature

Digital Night Vision

• Clear Night Vision and Recording: 3x Digital Zoom + 850nm IR Illuminator Enables Human Identification up to 200 Meters in Darkness

• Crisp, Energy-Efficient Imaging: CMOS Camera Sensor Provides Sharp Digital Vision Across All Lighting Conditions

• Sharp Close-Range Focus: Adjustable Objective Lens Allows Precise Observation as Near as 20cm for Detailed Viewing

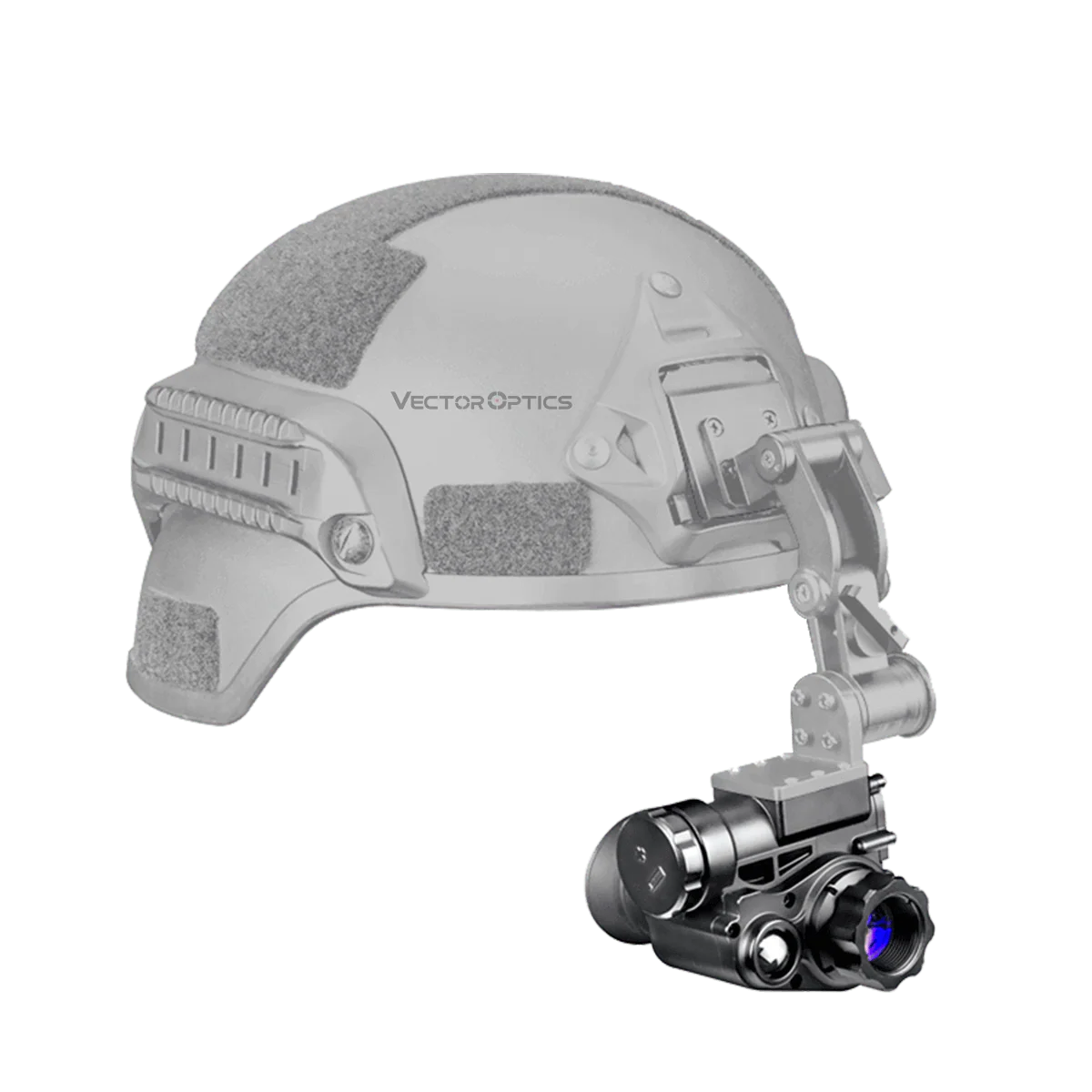

• Helmet-Mount Ready: Lightweight, Rugged Flip-Up Mount with Adjustable Two-Piece Design Ensures Secure and Easy Attachment

Video

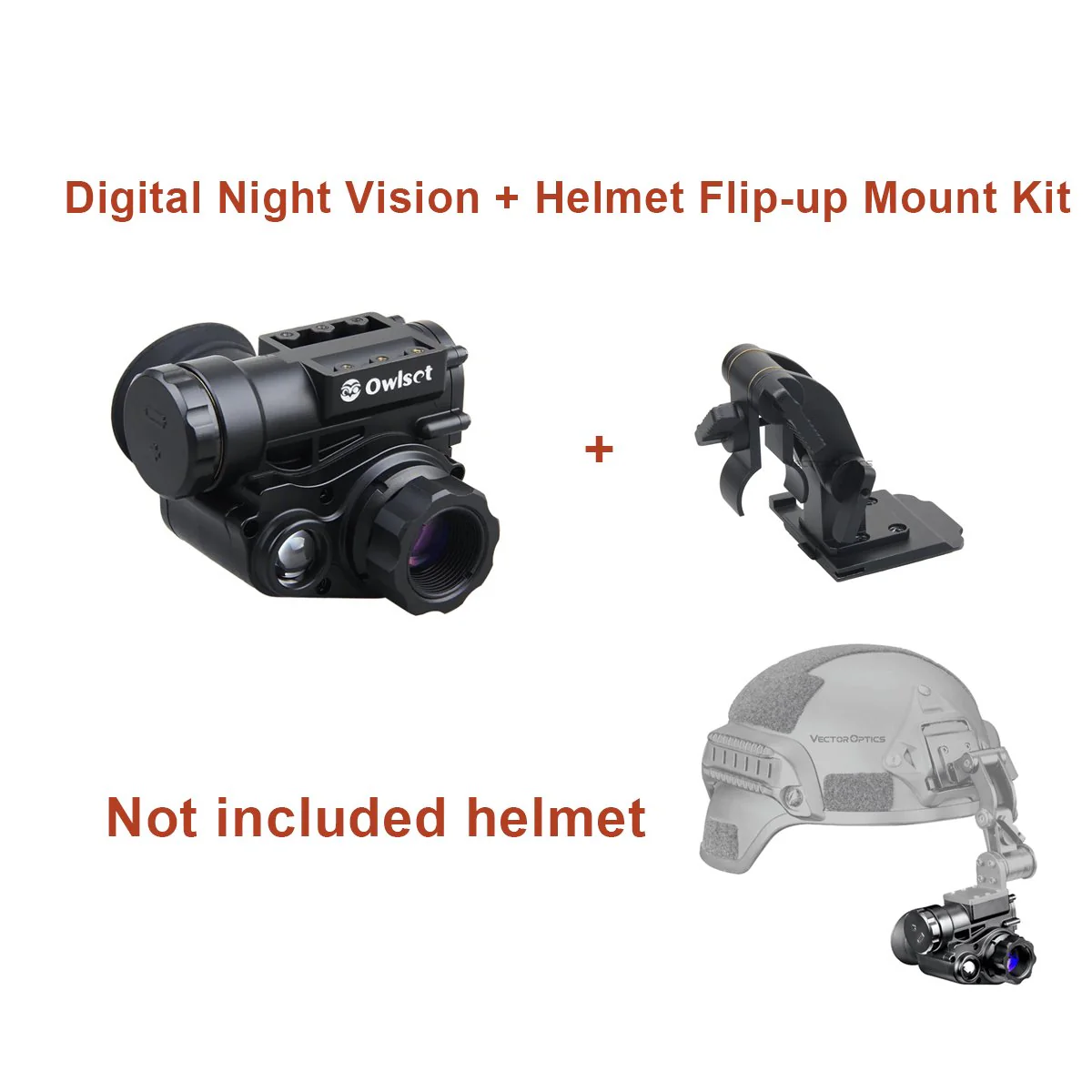

Helmet Flip-up Mount Kit

• To Connect OWNV-10 Night Vision onto the Helmet. Made of Alu 6061-T6

• Adjustable, 2 Pcs Combo, Flip-up-down Style, Light Weight, Easy of Use

• Check the video for installation illustration

Specification

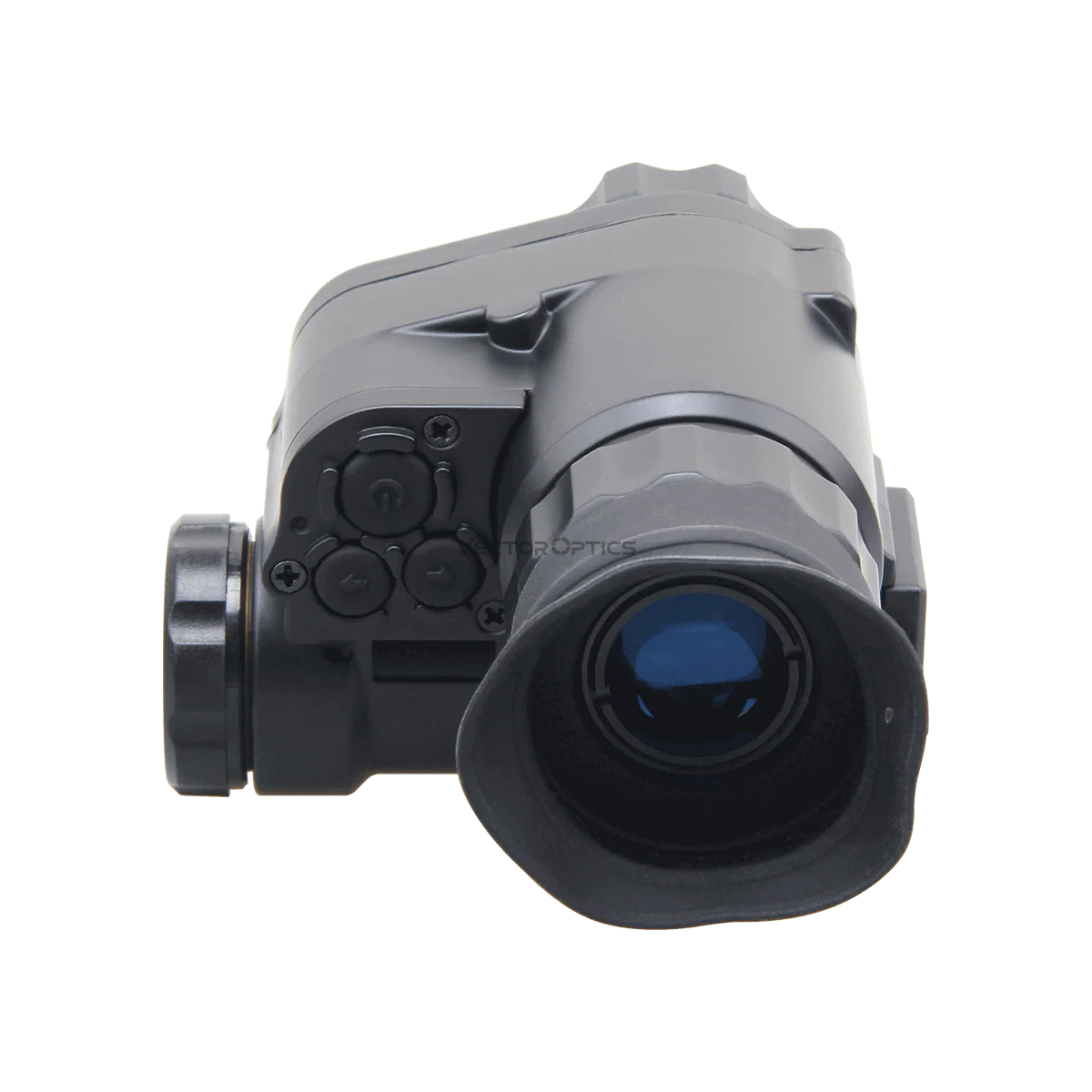

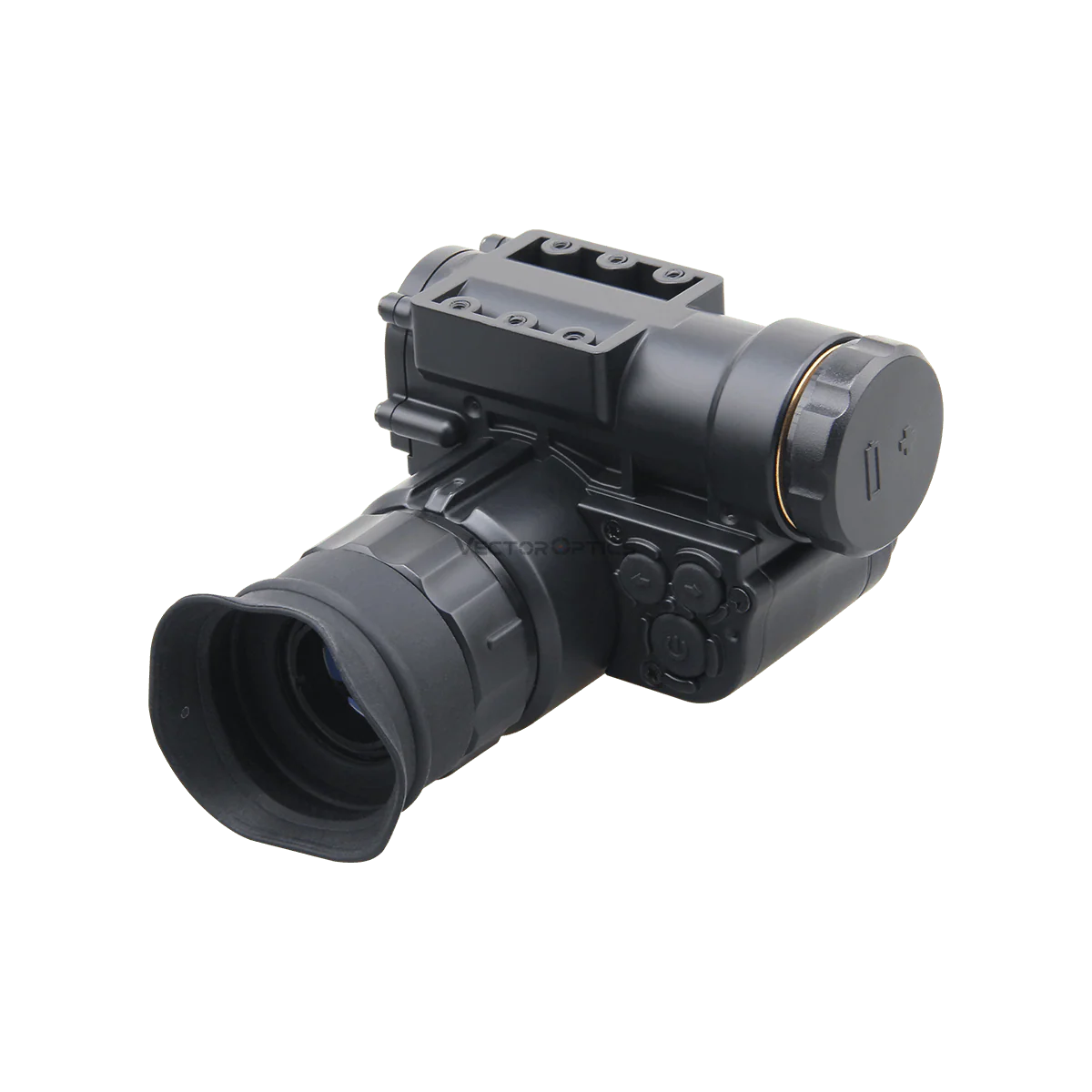

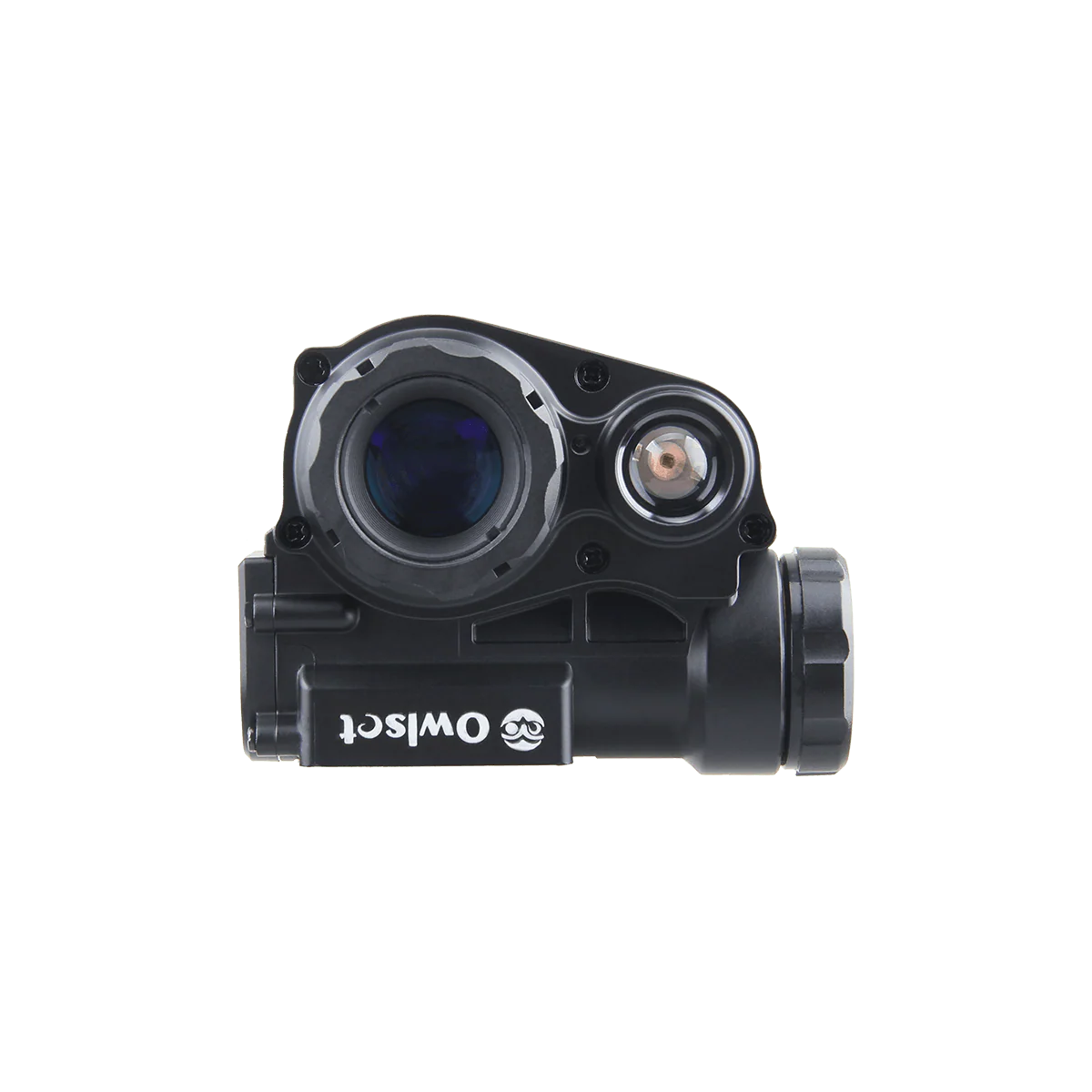

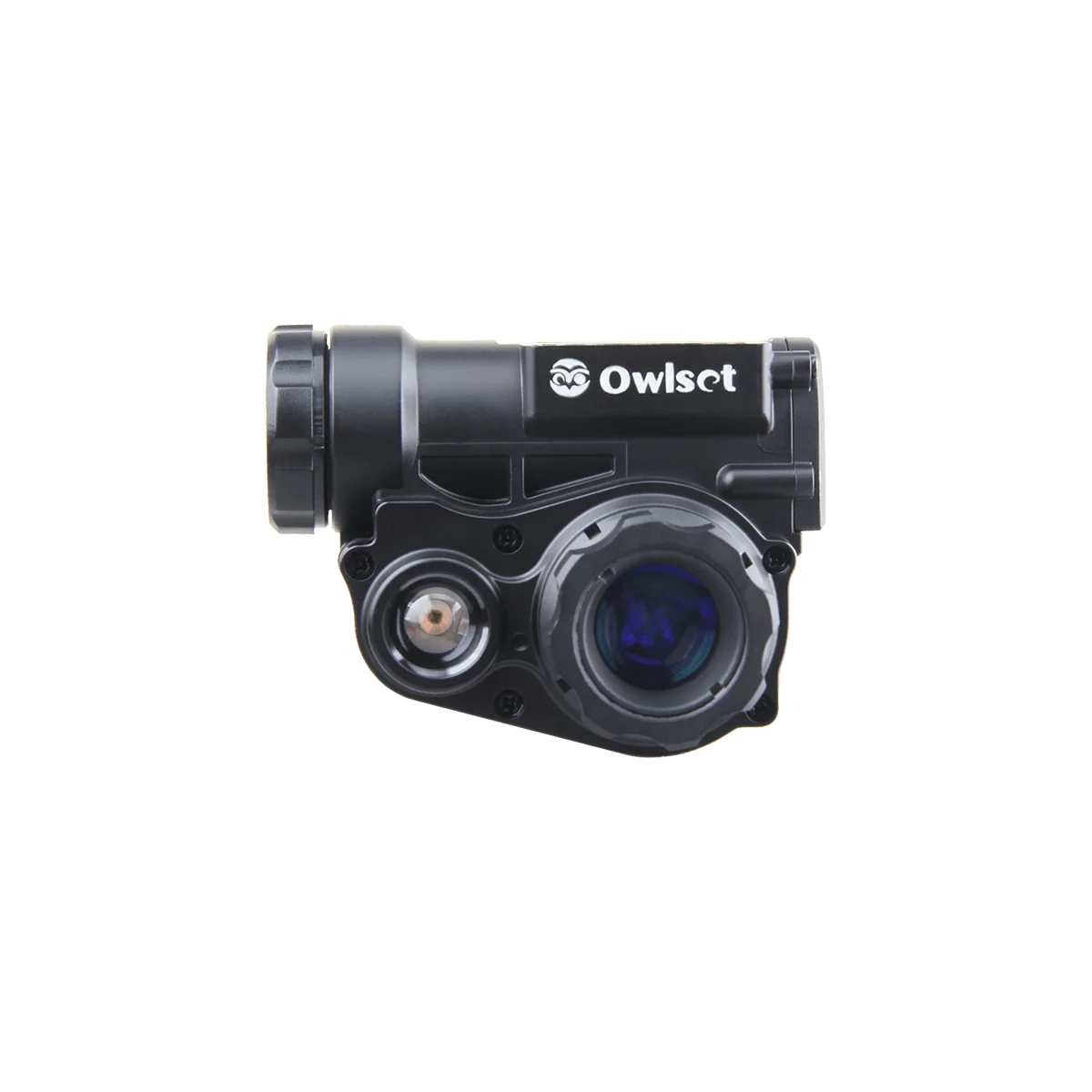

 1x18 Digital Day & Night Helmet Head Mounted HD

• Optical Magnification: 1x
• Objective Lens: 18mm
• Length: 98mm 3.8in
• Height: 58mm 2.3in
• Width: 80mm 3.1in
• Digital Zoom: 3x
• Focal Length: 20mm 0.8in
• Lens Coating: Ultra wide band infrared anti-reflection film
• Optical Resolution: ＜11"
• Detection Range in Dim Light: 0.2 meters to 300 meters
• Detection Range in Darkness: 0.2 to 200 meters (with IR illuminator ON)
• Observation Range in Darkness: 0.2 to 100 meters (with IR illuminator ON)
• Camera Sensor Type: CMOS
• Camera Resolution: 1920x1080
• Field of View: 25.5°x14.5°
• Eye Relief: 20mm
• Display Resolution: 1280x720 LCOS
• Objective Lens Focus: 20cm to infinite
• Spectrum Range: 450-1100nm
• Diopter Adjustment: -5 ~ +5
• LED IR Illuminator Wavelength: 850nm
• LED IR Illuminator Power: 1W (3 levels)
• Min Illumination: 0.0001 Lux
• Photo Mode: Yes
• Video Mode: Yes
• APP: WIFICAMERA (Android)
• Material: ABS Plastic + Rubber
• Battery Type: 1 pc 3.7V rechargeable 18650 lithium(not included)
• Battery Runtime: 5 hours IR OFF / 3 hours IR ON
• Operating Temperature Range: -40 to 55℃
• Electronic compass
• Automatic white balance
• Display Background: white-&-black, green
• Weight (with battery): 245g 8.6oz
• Automatic or manual control display screen brightness
• IP66 water proof

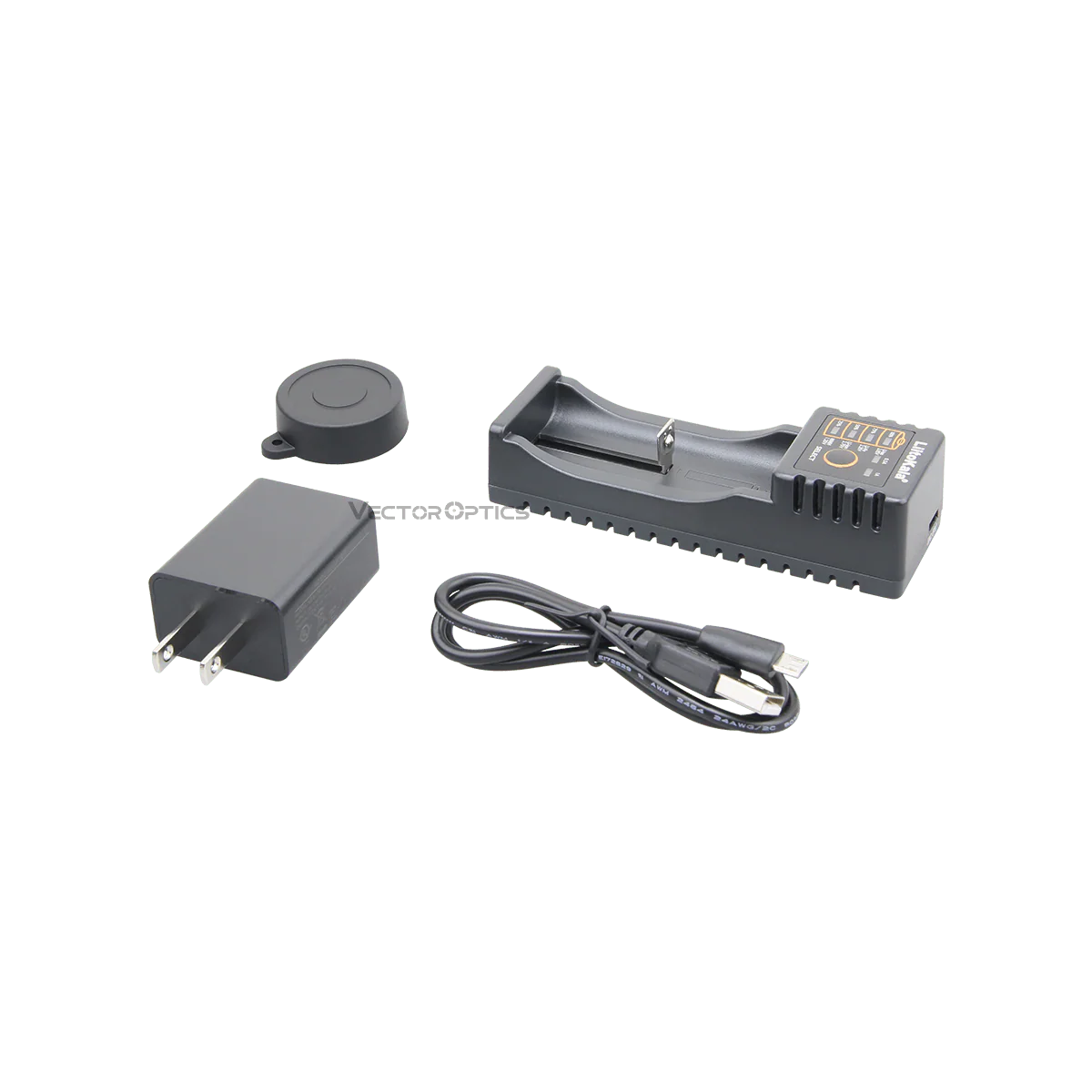

• Accessories: cleaning cloth, battery, charger set, lens cover, instruction etc
• Need OWNV-MT10 helmet flip-up mount kit for installation

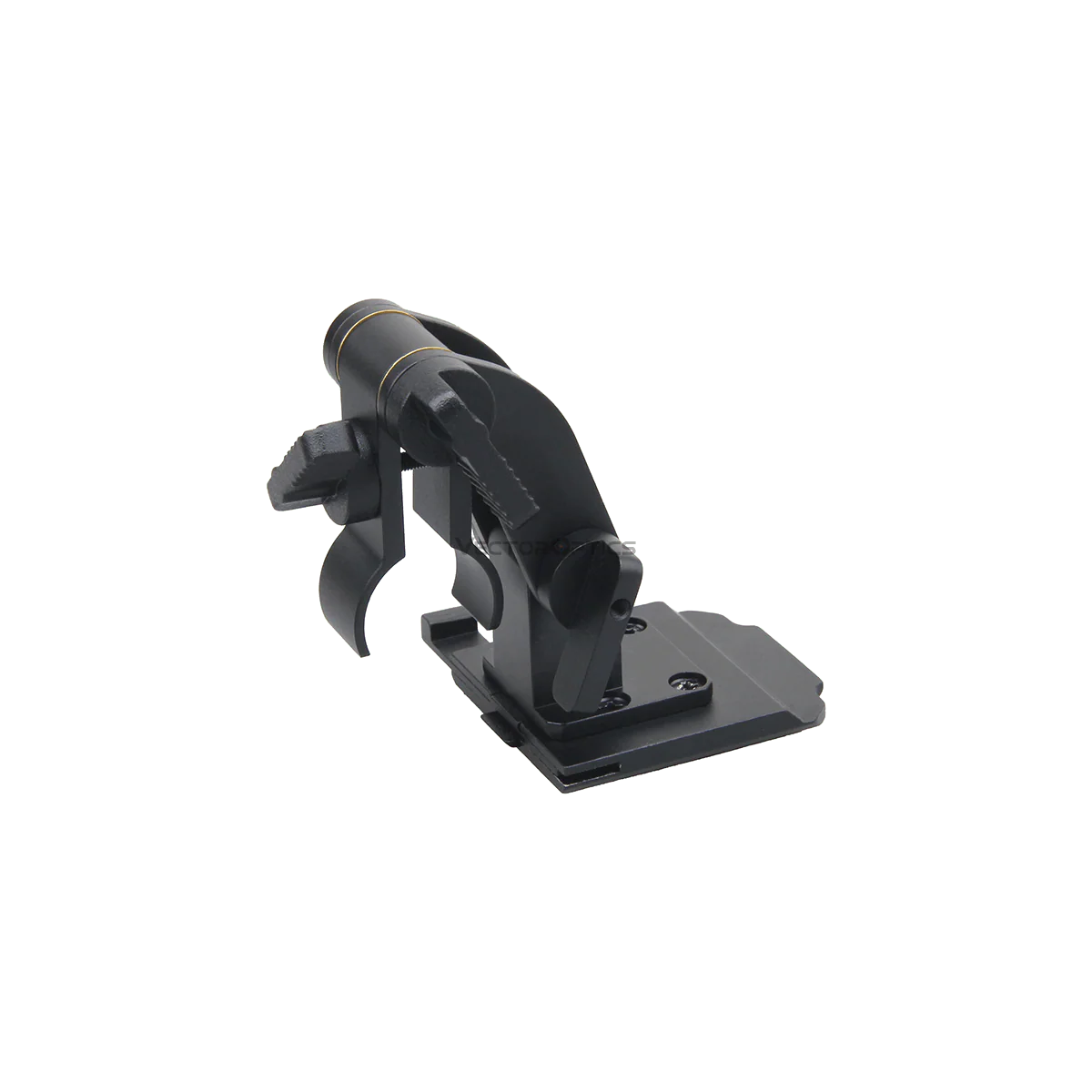

Helmet Flip-up Mount Kit

• Diameter: 21.5mm 0.85in
• The 1st lever for clamping the cylinder mount
• The 2nd lever mount can control the damping force to flip up and flip down the monocular night vision
• The 3rd lever mount will lock the position between helmet and whole mounting system
• Weight: 130g / 4.6in
• Made of Alu alloy 6061-T6
• Quick detach and release mount to the helmet
• 2 pcs combo, easy of use
• Check video for installation illustration
