Feature

• True 12x Zoom Factor, Edge-to-Edge Image, Fully-multi Coated, 100mm 4" Eye Relief

• 35mm Monotube Made of 6061 T6, Side Foucs Min Starts from 20 Yards to Infinite

• By Using ED Glass on Objective lens Ensure Excellet Image at 48x Power for Long Range Shooting

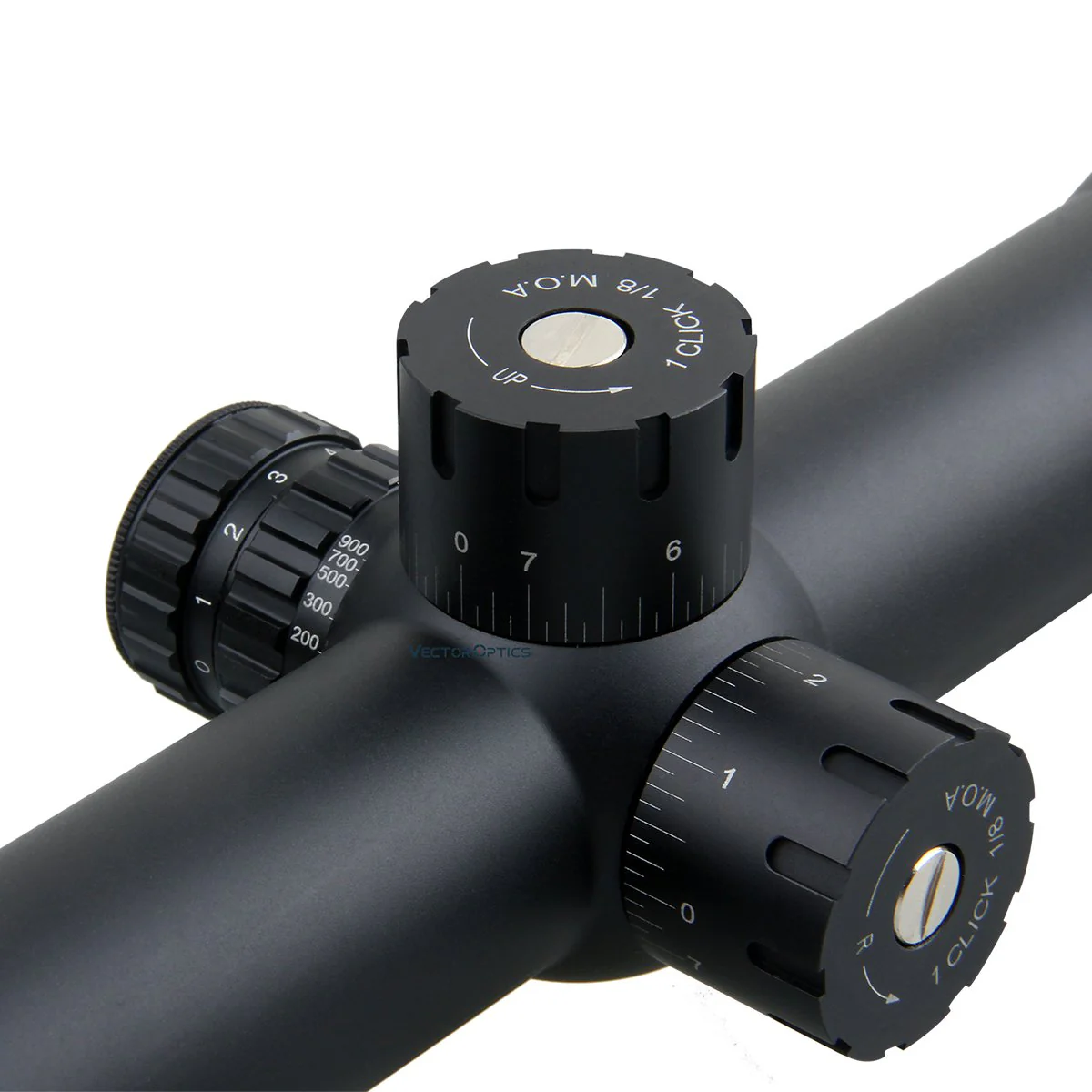

• 1/8MOA Adjustment w/ Zero Reset & Turret Lock Feature, Total >55MOA Adjustment Range

• Etched Glass MOA Reticle Make You Measure Distance and Calculate Bullet Drop Compensation

• Take Lapua Magnum 338 Recoil and All Fields of Application for Hunting, Sporting & Competition

Specification

• Magnification: 4-48x

• Objective Lens Dia.: 65mm

• Ocular Lens Dia.: 39mm / 1.5 inch

• Ocular Lens Length: 66mm / 2.6 inch

• Exit Pupil: 12-1.35mm

• Optics Coating: Fully-multi coat

• Field of View: 26.7-2.3 feet@100 yards

• Field of View: 5.1-0.43°

• Eye Relief: 104-94mm / 4.1-3.7 inch

• Length: 435mm / 17.1 inch

• Weight: 1140g / 40.2 ounce

• Tube Dia.: 35mm Monotube

• Click Value: 1/8 MOA

• Elevation Range: >55MOA

• Windage Range: >55MOA

• Parallax Setting: 100 yards

• Side Focus: 20 Yds to infinite

• Reticle: Etched glass MOA

• Illumination: 11 gear red

• Battery Type: CR2032

• Reticle Usage at 10x Power

• Distance between objective lens part and middle turret: 74mm (1.8 inch)

• Length of middle turret part: 37mm (1.6 inch)

• Distance between middle turret part to power ring: 88mm (2.5 inch)

• Shock tested to 1200g and water proof

• Fully nitrogen purged to eliminate any fogging of the lenses internally

• High quality 6061 T6 aircraft grade aluminum

• Diopter compensation from fast-focus eyepiece (+2 to -3)

• Including items: 35mm picatinny high ring, 3" sunshade, flip-up caps and cleaning cloth etc.

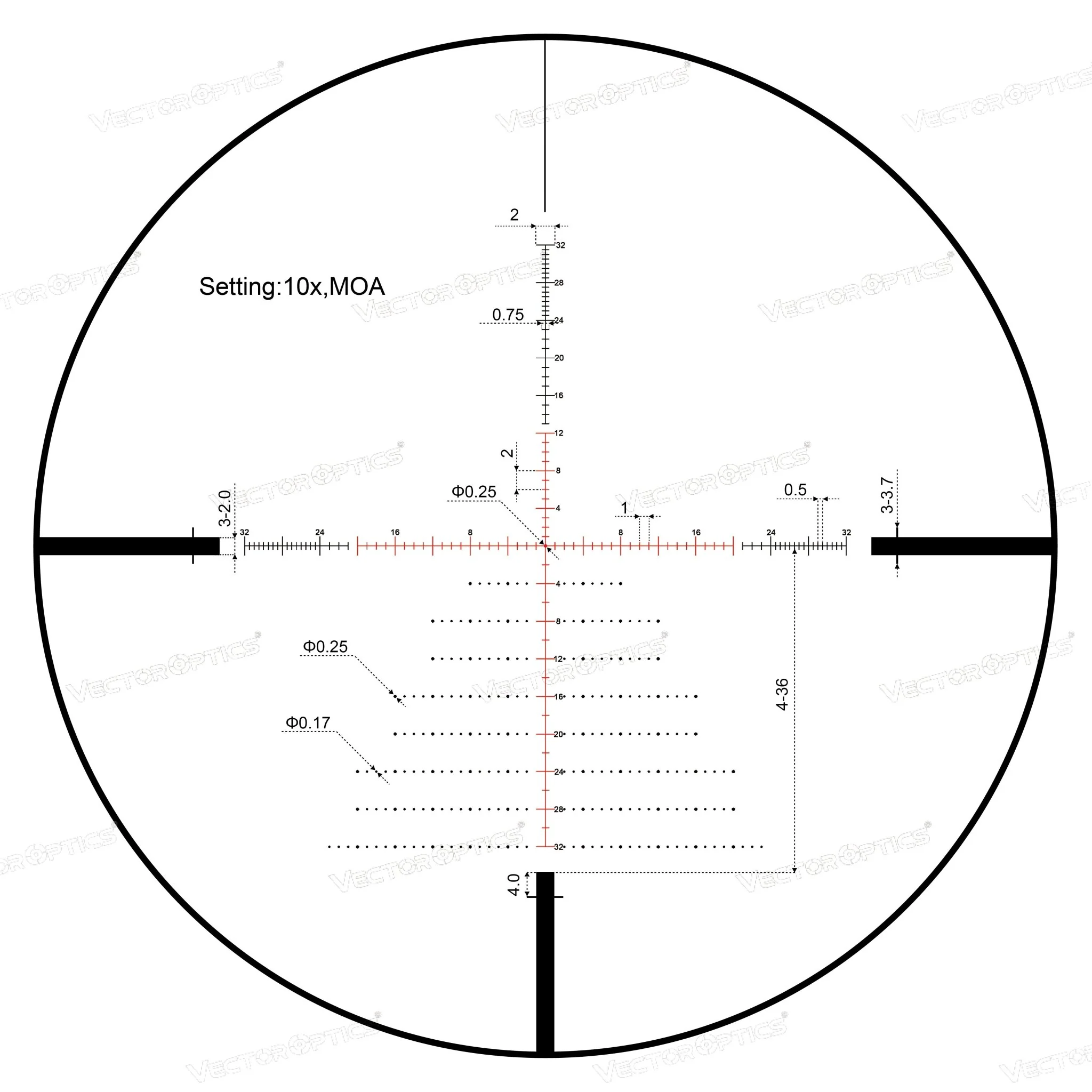

Reticle
