PRODUCT FEATURES

· Precise Targeting Control: 6 MOA and 3 MOA Dot Reticles Provide Distinct Coverage Levels for Different Shooting Scenarios

  > SCRD-40: 6 MOA Dot, Larger Coverage for Faster Target Acquisition and Strong Visibility at Close Range
  > SCRD-35: 3 MOA Dot, Smaller Coverage for Enhanced Accuracy Beyond 50 Yards in Precise Shooting Scenarios

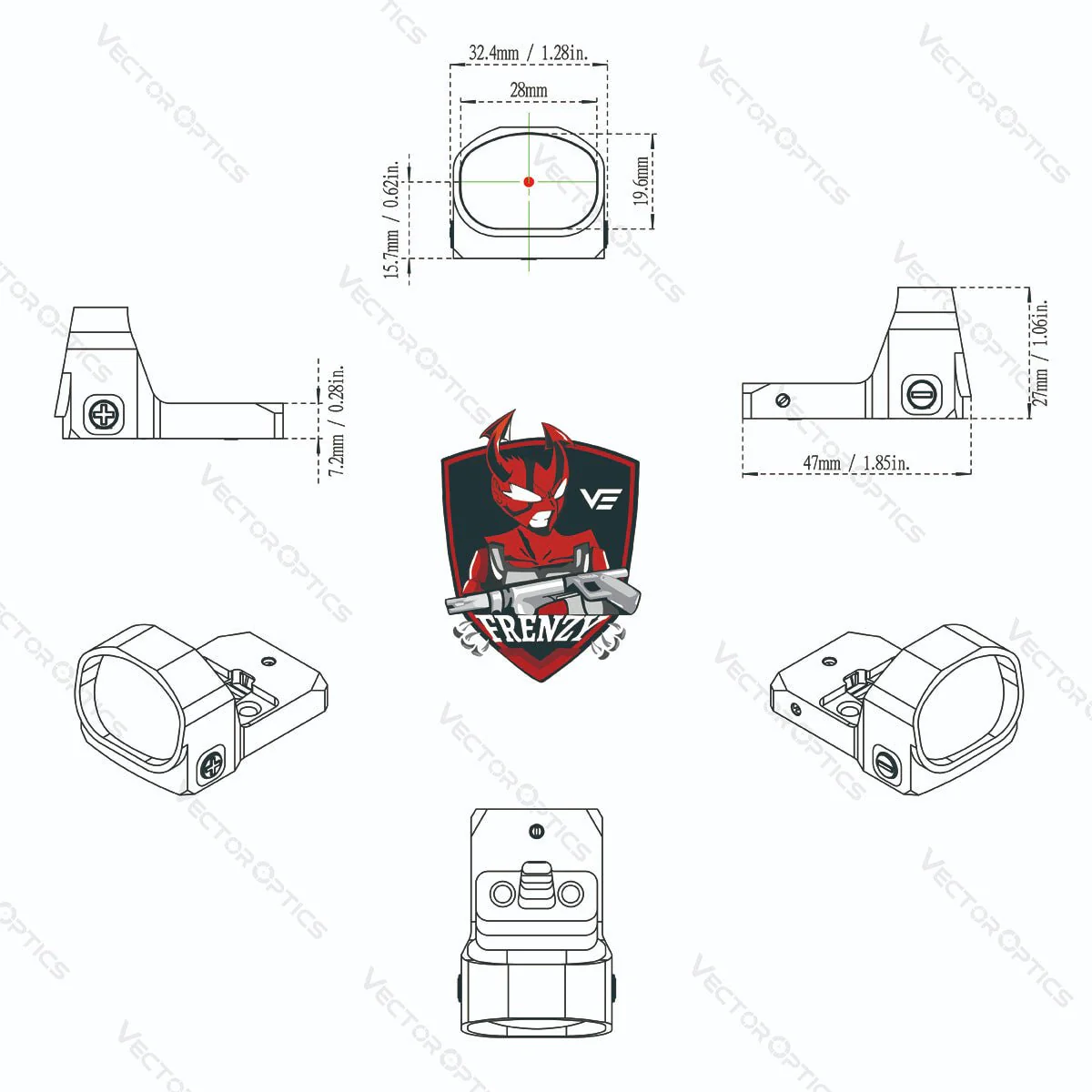

· Expanded Field of View: Extra Large 20 × 28 mm Window Keeps You Locked on Target for Continuous Tracking and Better Awareness

· Recoil Resistant Build: 6061-T6 Aluminum Handles 9mm, .45ACP, 12GA, and .338 Lapua Magnum Recoil for Stable Performance

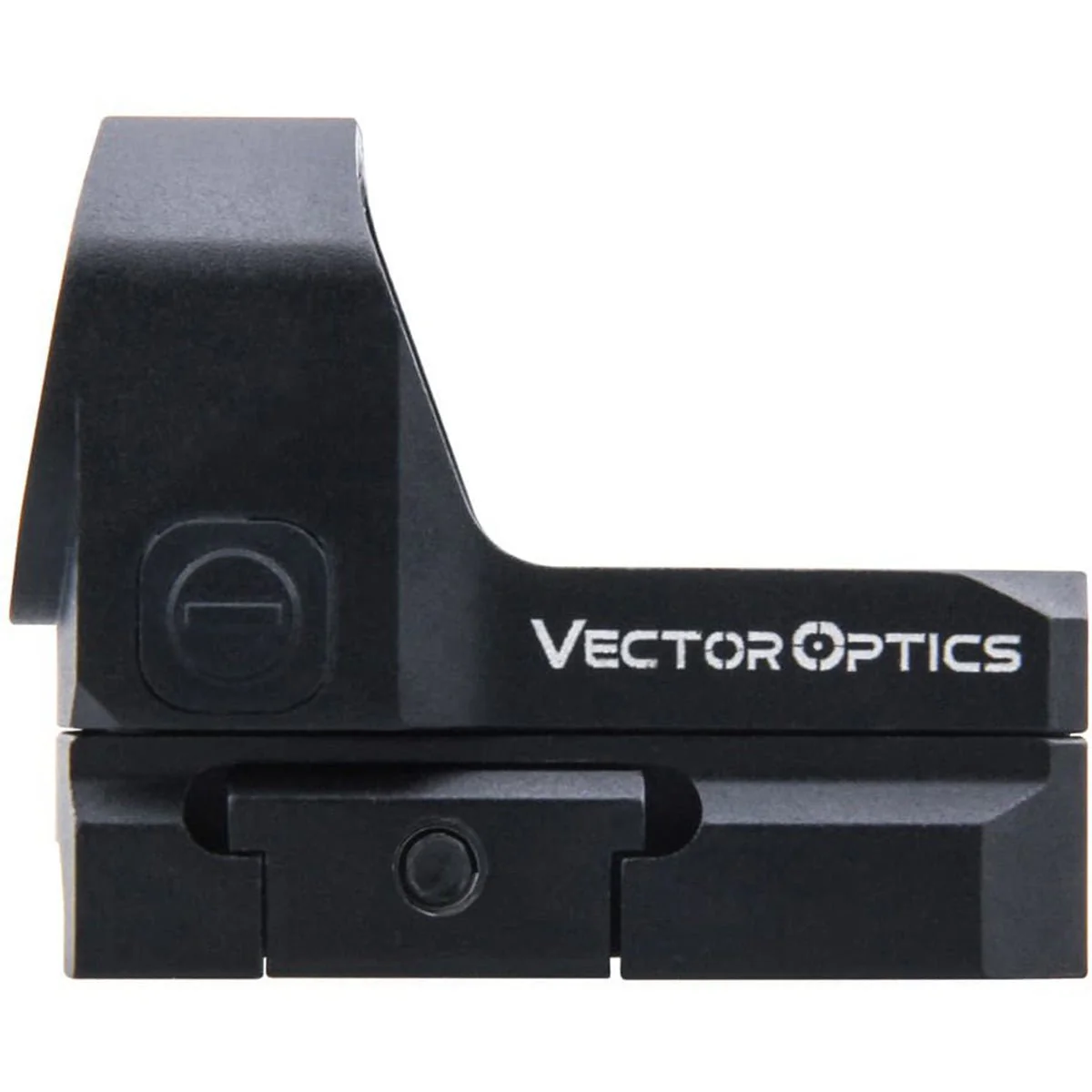

· User Controlled Power: Side Buttons Enable Manual On/Off with 4 Hour Auto Shut Off for Efficient Power Management in the Field

· Broad Platform Compatibility: TEK Footprint Compatible with the Docter® Standard, Fits Glock® MOS and Walther® PDP Slides

· Note: 3MOA dot for SCRD-35, 6MOA dot for SCRD-40. Learn more about the dot size.





DESCRIPTION

The Frenzy is proof that you don’t have to compromise performance on a small sight. Whether it’s topping your AR, shotgun, or pistol, the Frenzy gives you a clear field of view and the bold aiming point you need in high-pressure situations. Crafted from aircraft-grade aluminum, this sight is made to handle abuse.

SPECIFICATIONS

See our Terminology Guide for detailed explanations of each specification.

SCRD-35 Frenzy 1x20x28 3 MOA Red Dot Sight

Specification	Details
Magnification:	N/A
Window Lens Size:	20x28 mm
Parallax:	±1.0 MOA
Parallax Setting:	N/A
Dot Size/ Reticle:	3 MOA
Dot/ Reticle Color:	Red
Sensor:	N/A
Click Value:	N/A
Elevation Adjustment Range:	45 MOA
Windage Adjustment Range:	45 MOA
Footprint:	TEK
Mounting Rail:	Weaver
Illumination Setting:	8 Daylight + 2 Night Vision
Battery Type (Not Include):	CR2032
Battery Life:	50000 Hours
Battery Placement:	N/A
Waterproof:	IPX6
Shockproof:	N/A
Working Temperature:	-20~+55° C
Housing Material:	6061-T6 Aluminum Alloy
Mount Material:	6061-T6 Aluminum Alloy
Finish:	Matte Black
Weight (Net):	56 g / 2.0 oz

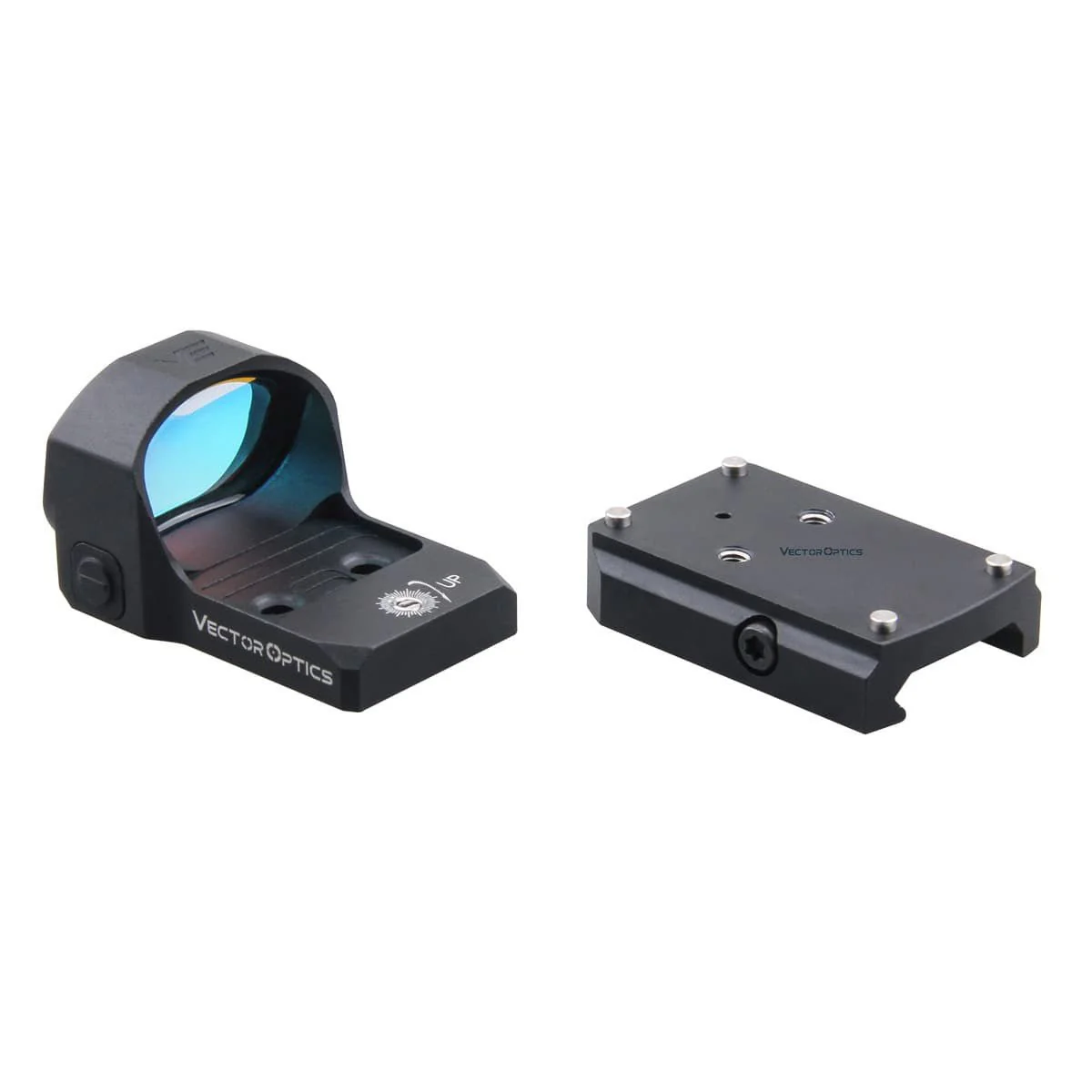

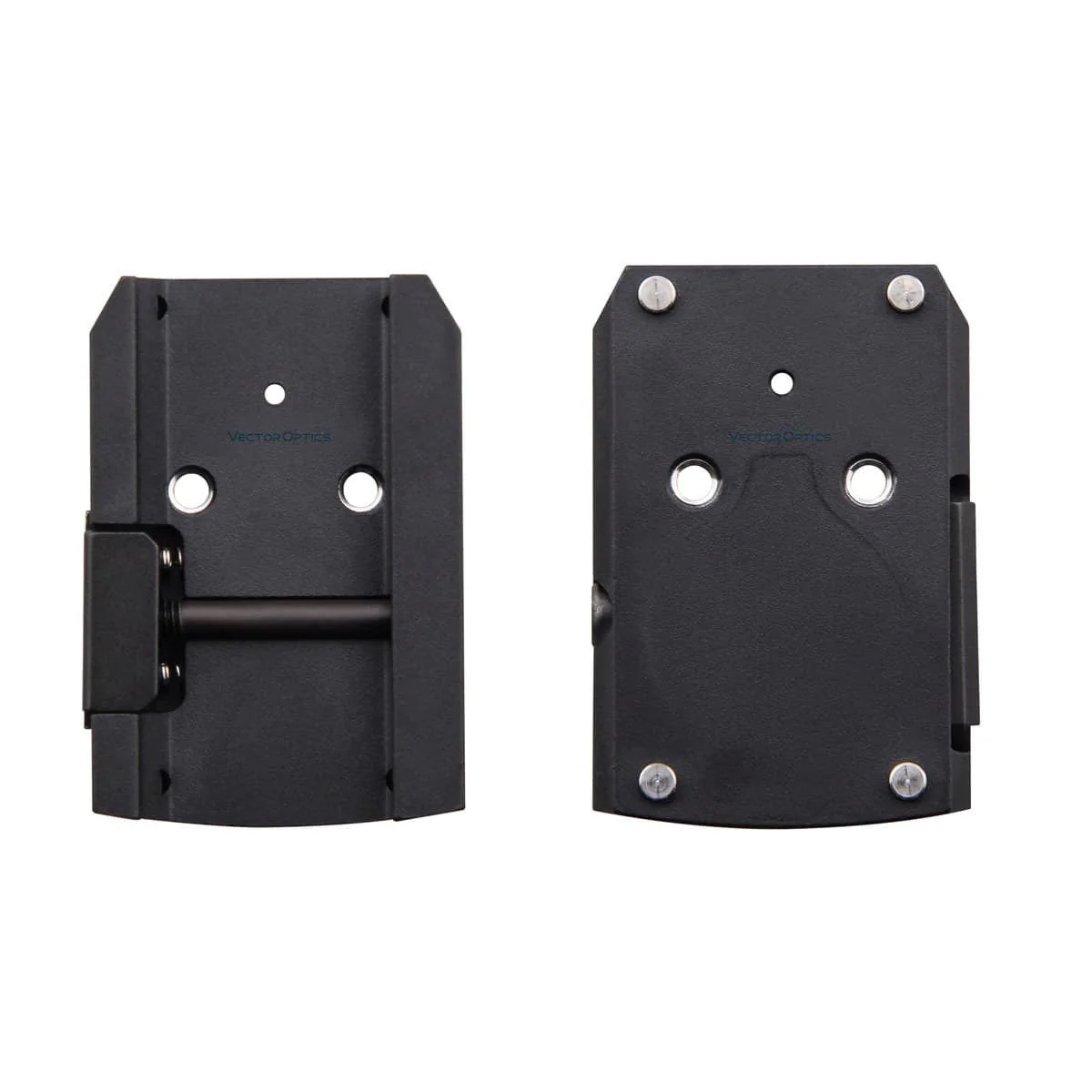

Items in the Package:	Retail Package, Weaver Mount, Rubber Lens Cover, Hex Keys and Cleaning Cloth, etc

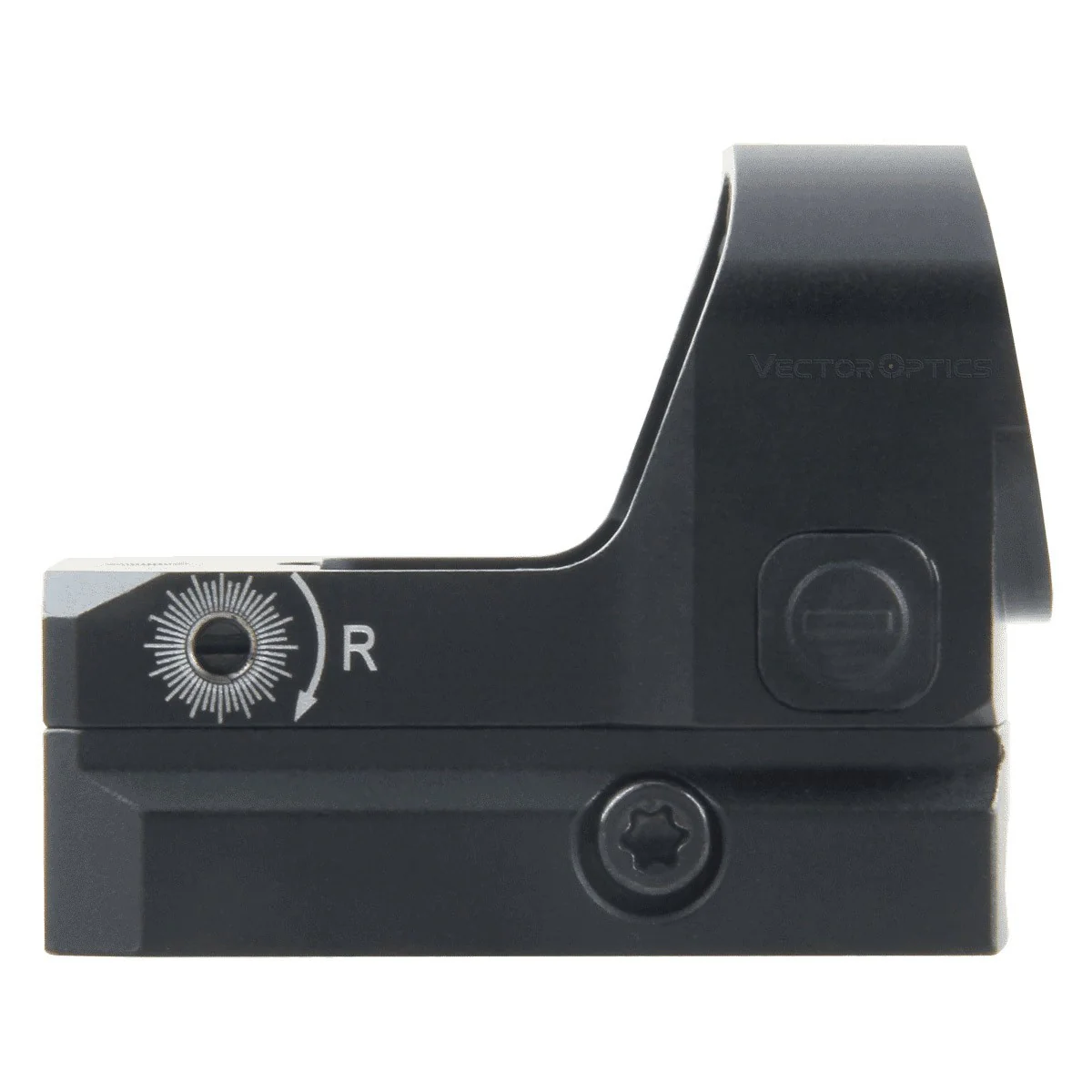

SCRD-40  Frenzy 1x20x28 6 MOA Red Dot Sight

Specification	Details
Magnification:	N/A
Window Lens Size:	20x28 mm
Parallax:	±1.0 MOA
Parallax Setting:	N/A
Dot Size / Reticle:	6 MOA
Dot/ Reticle Color:	Red
Sensor:	N/A
Click Value:	N/A
Elevation Adjustment Range:	45 MOA
Windage Adjustment Range:	45 MOA
Footprint:	TEK
Mounting Rail:	Weaver
Illumination Setting:	8 Daylight + 2 Night Vision
Battery Type (Not Include):	CR2032
Battery Life:	50000 Hours
Battery Placement:	N/A
Waterproof:	IPX6
Shockproof:	N/A
Working Temperature:	-20~+55° C
Housing Material:	6061-T6 Aluminum Alloy
Mount Material:	6061-T6 Aluminum Alloy
Finish:	Matte Black
Weight (Net):	56 g / 2.0 oz
Items in the Package:	Retail Package, Weaver Mount, Rubber Lens Cover, Hex Keys and Cleaning Cloth, etc

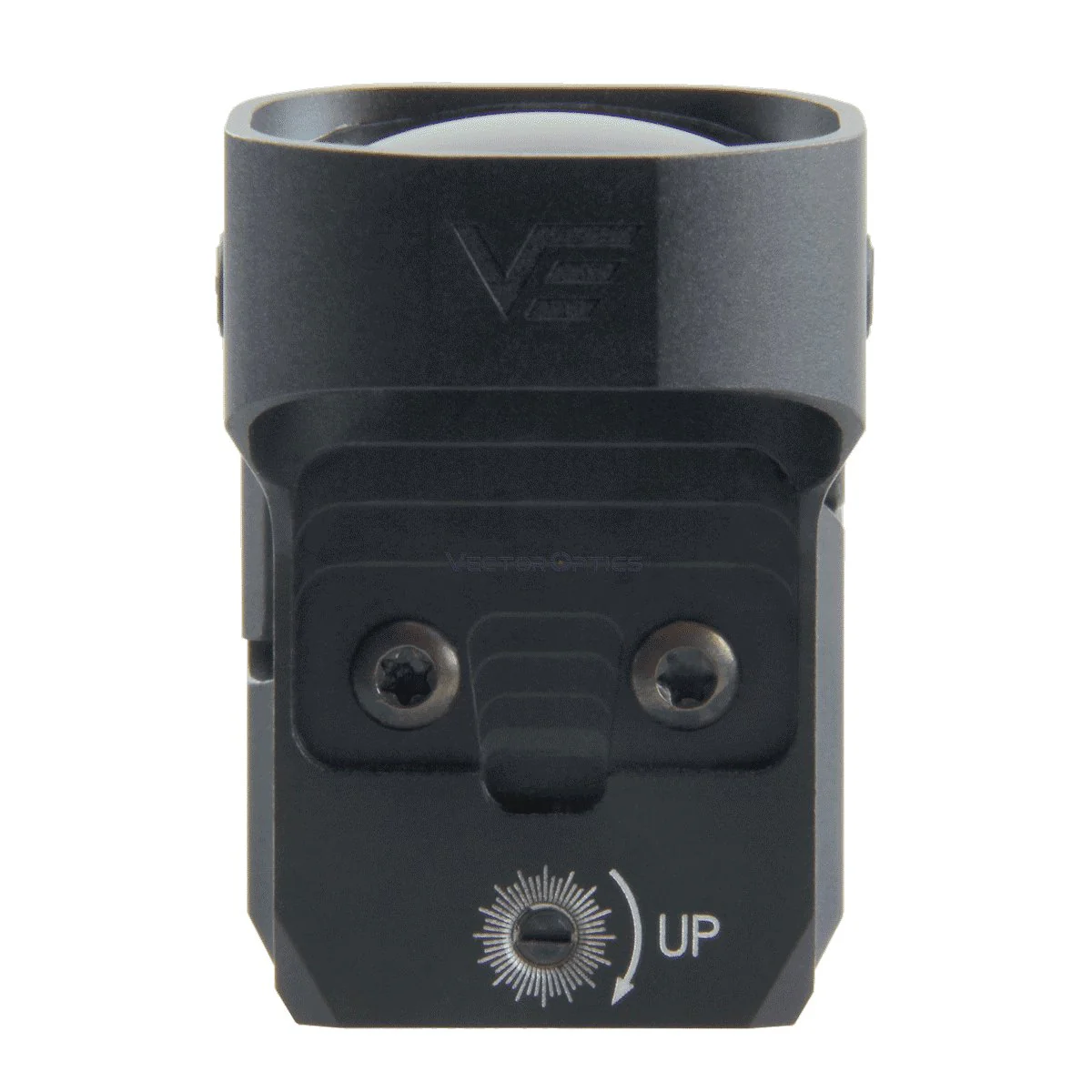

Footprint

TEK Footprint

· Compatible Industry Standard: Docter / Noblex®

· Original Compatible Pistol Optics-Ready (O.R.) Model:  GLOCK®  Standard MOS Gen4/5 (exclude G48/G43X), Walther®  PDP (w/ adapter plate), TAURUS® G3 T.O.R.O (w/ adapter plate), M&P® M2.0 C.O.R.E. (w/ adapter plate), etc.

For more information about FOOTPRINT, please refer to the blog.

Video

Download

Frenzy Red Dot User Manual
