Description

Ultra Short,Low Light Shooting Design

4x Zoom Factor

Resettable 1/10 MIL Turrets

Min at 10 YDS Side Focus

Offered in Second & First Focal Plane

Free Flip-up Caps ,Honeycomb Shade & 30mm Scope Rings

Video

Relations



Feature

· Ultra Short 295mm 11.6" Length, FMC with Edge-to-Edge Image

· 30mm Monotube Made of 6061 T6, First Focal Plane Rifle Scope

· True 4x Zoom Factor from 6 to 24 Magnification, Side Focus Min @ 10 Yds

· Precise 1/10MIL Adjustment w/ Turret Lock Feature, Total 14.5MIL

· Light Weight, Long Eye Relief, MIL & CM MPR-4 Etched Glass Reticle

· Designed for Real Fire Caliber, All Fields of Application for Hunting, Sporting & Competition

· w/ Scope Rings, Honeycomb Sunshade, Flip-Up Caps & Cleaning Cloth

· A Must for Your Compact Air Guns and Light Weight Firearms

· The Shortest Marksman Scope for You



Reticle



Specification

· Magnification: 6-24x

· Objective Lens Dia: 44mm

· Ocular Lens Dia: 33mm

· Ocular Lens Length: 35mm

· Exit Pupil: 7.3-1.8mm

· Optics Coating: Fully-multi coated

· Field of View: 17.5-4.3 feet@ 100 yds

· Eye Relief: 90-85mm / 3.5-3.4"

· Length: 297mm / 11.7"

· Weight (net): 580g / 20.5oz

· Tube Dia: 30mm Monotube

· Click Value: 1/10MIL, 1cm

· Elevation Range: 14.5MIL

· Windage Rang: 14.5MIL

· Parallax Setting: 100 Yds

· Side Focus: 10 yards to infinite

· Reticle: Etched glass MPR-4

· Finish: Black Matte

· Illumination: N/A

· The distance between objective lens part and middle turret: 50mm (2.0 inches)

· Length of middle turret part: 37mm (1.4 inches)

· The distance between middle turret part to power ring: 30mm (1.2 inches)

· Shock tested to 750g, IPX4

· Fully nitrogen purged to eliminate any fogging of the lenses internally

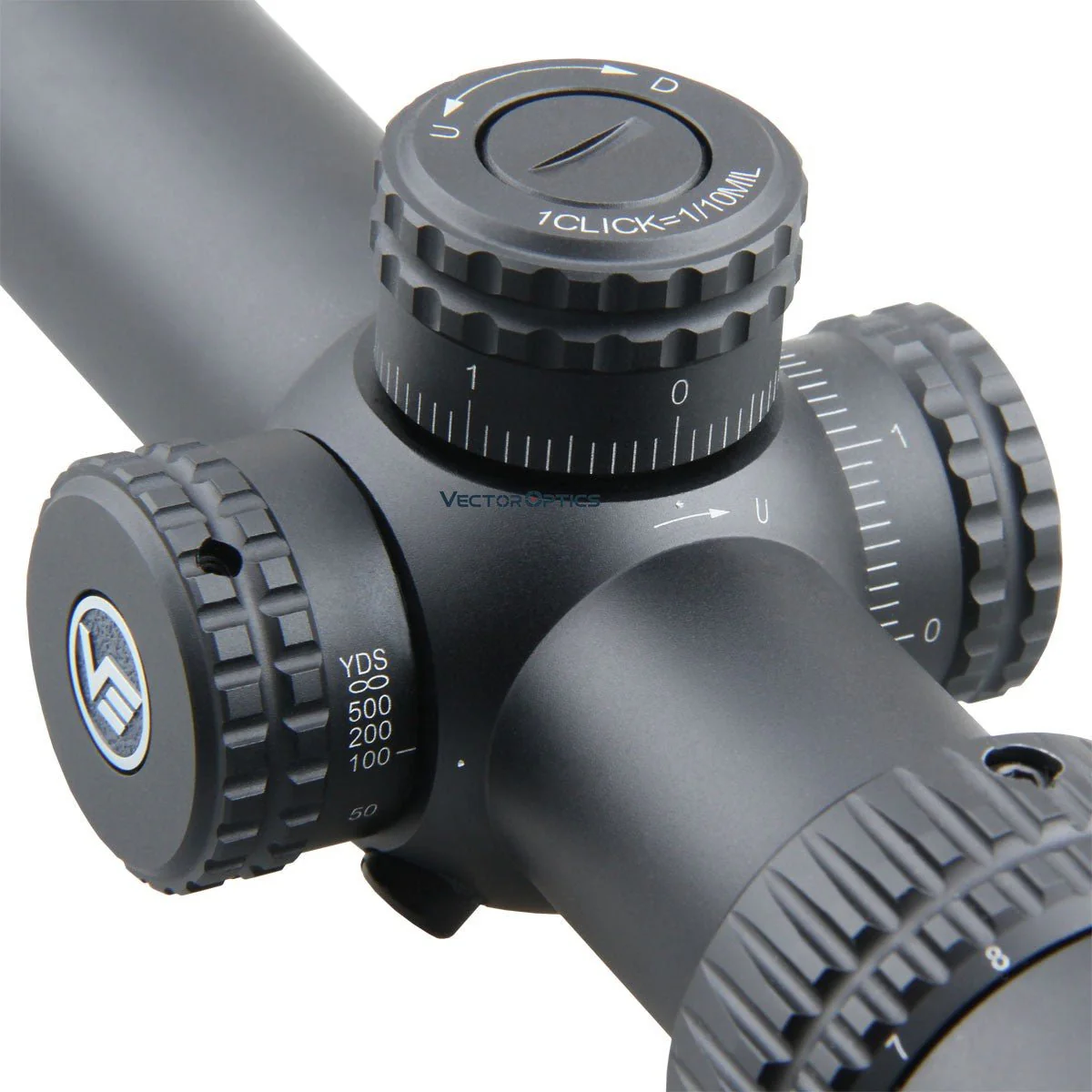

· Turret Lock System, pull up for adjustment, press down for lock

· High quality 6061 T6 aircraft grade aluminum

· Focus mark: 10, 15, 25, 50, 100, 200, 500 and infinite

· Diopter compensation from the fast-focus eyepiece (+2 to -2)

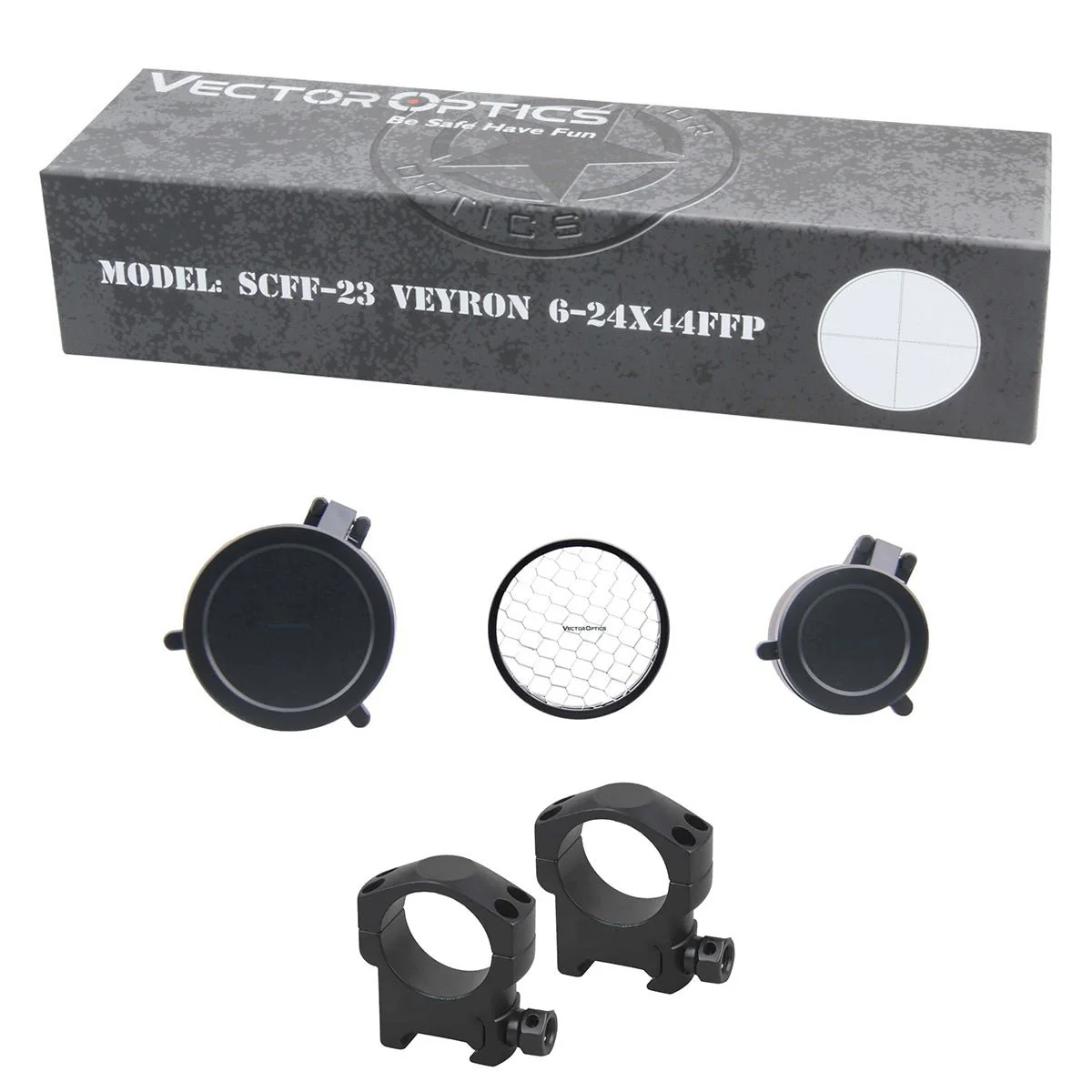

· Including items: 30mm weaver, flip-up caps, honeycomb shade, and cleaning cloth, etc.
