Feature

· A Kit Includes S6 1-6×24i Fiber LPVO Scope & 1-Piece Picatinny Mount, w/ 1.93 in (49 mm) Center Height for AR Shooting Position

· Features a VIS-F1 Fiber Optic Reticle That Stays Bright and Sharp Even in Harsh Daylight with 6 Level Red Illumination

· Fully Multi-Coated Lens Delivers Bright, Crisp Imaging with Consistent Edge-to-Edge Clarity Across the Entire Field of View

· 1/5 MIL Click Value and 50 MIL Elevation Adjustment Range for Precise and Reliable Long-Range Adjustments on Any Rifle Setup

· Comes with an Extra Interchangeable Ring Cap, Offering More Options for DIY Customization and a Personalized Mounting Style

Specification

S6 1-6x24i Fiber LPVO SFP Best Budget Rifle Scope

Specification	Details
Magnification:	1-6x
Objective Lens Dia:	24mm
Ocular Lens Dia:	42mm / 1.6 inch
Ocular Lens Length:	87mm / 3.4 inch
Optics Coating:	FMC
Linear Field of View @ 100 yd:	109.2-18.2 ft @ 100 yards
Linear Field of View @ 100 m:	36.4 – 6.1 m @ 100 meters
Angular Field of View:	21.0 – 3.5°
Eye Relief:	101mm / 4.0 inch
Length:	249mm / 9.8 inch
Weight:	425g / 15.0oz
Tube Dia:	30mm
Click Value:	1/5MIL
Adjustment Range:	>50MIL
Parallax Setting:	100 Yards
Reticle:	fiber optic reticle VIS-F1
Illumination:	6 levels intermittent red
Battery Type (Not Include):	CR2032
Finish:	Black Matte
Shockproof:	750G
Waterproof:	IPX4
Fogproof:	Nitrogen Purged
Turret Function:	Turret lock and zero reset
Housing Material:	6061-T6 Aluminum Alloy
Diopter Compensation:	+2 to -2

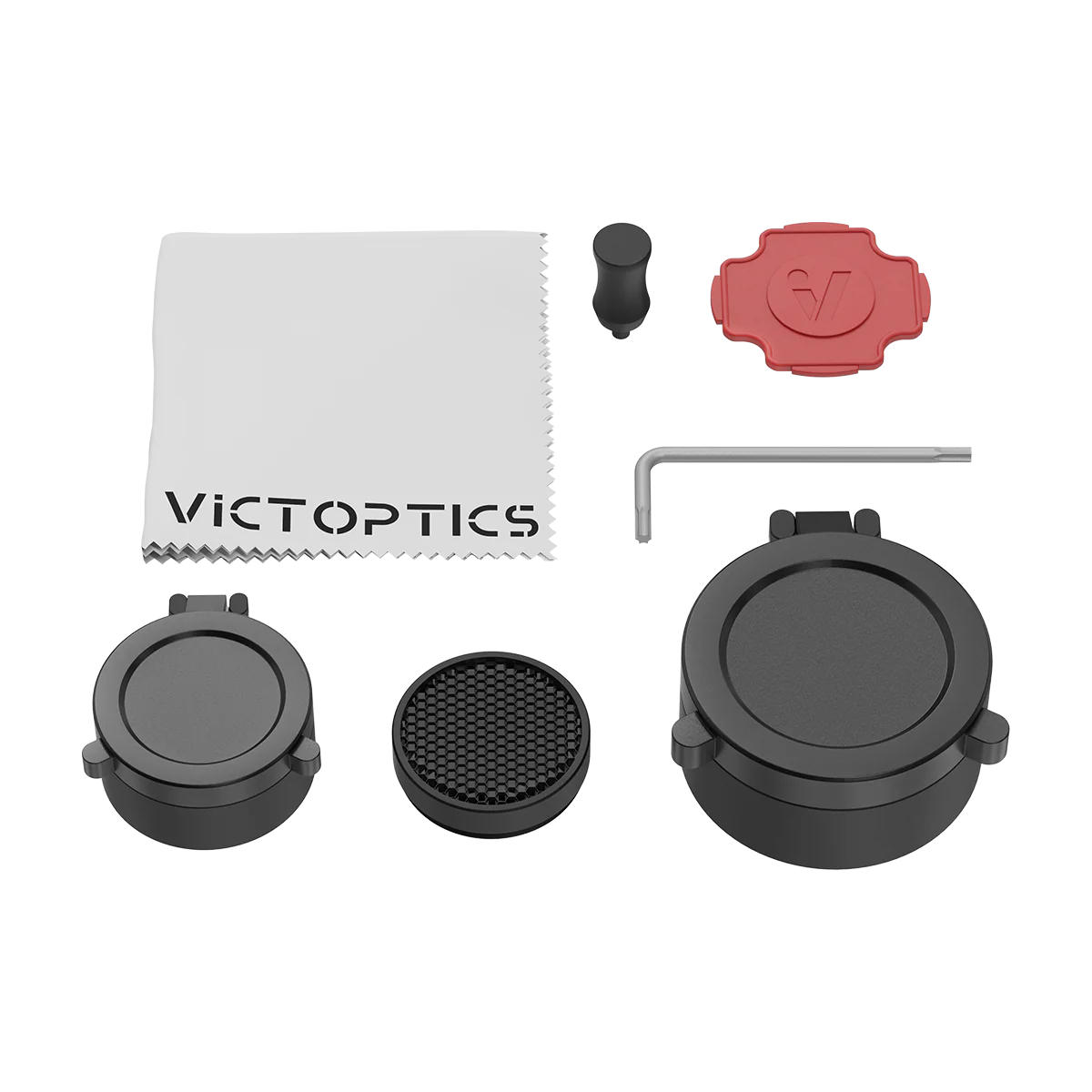

Items in the Package (Complete Kit):	honeycomb sunshade, extra Picatinny-style ring caps, T15 torx wrench, plastic wrench, power throw lever, flip-up caps, cleaning cloth, etc.

30mm 1-Piece Extreme High Picatinny AR Mount

Specification	Details
Ring Dia:	30 mm
Height:	72 mm / 2.83 in
Center Height:	49 mm / 1.93 in (Bottom to Center)
Length:	140 mm / 5.51 in
Material:	6061-T6 Aluminum Alloy
Weight:	161 g / 5.68 oz
Mount:	Picatinny
Finish:	Matte Black

Size

Reticle

Download

VIS-F1 Reticle Manual
