Feature

· Fine Adjustment with QR Lever Lock, Allowing Fast Locking and Instant Release for Precise Positioning

· Versatile Rotation Feature, Support 360° Horizontal and 135° Drop-Notch Vertical Rotation Movement

· Dual ARCA-Type and Picatinny Rail Interfaces, Compatible with Rifle Chassis and AR Handguards

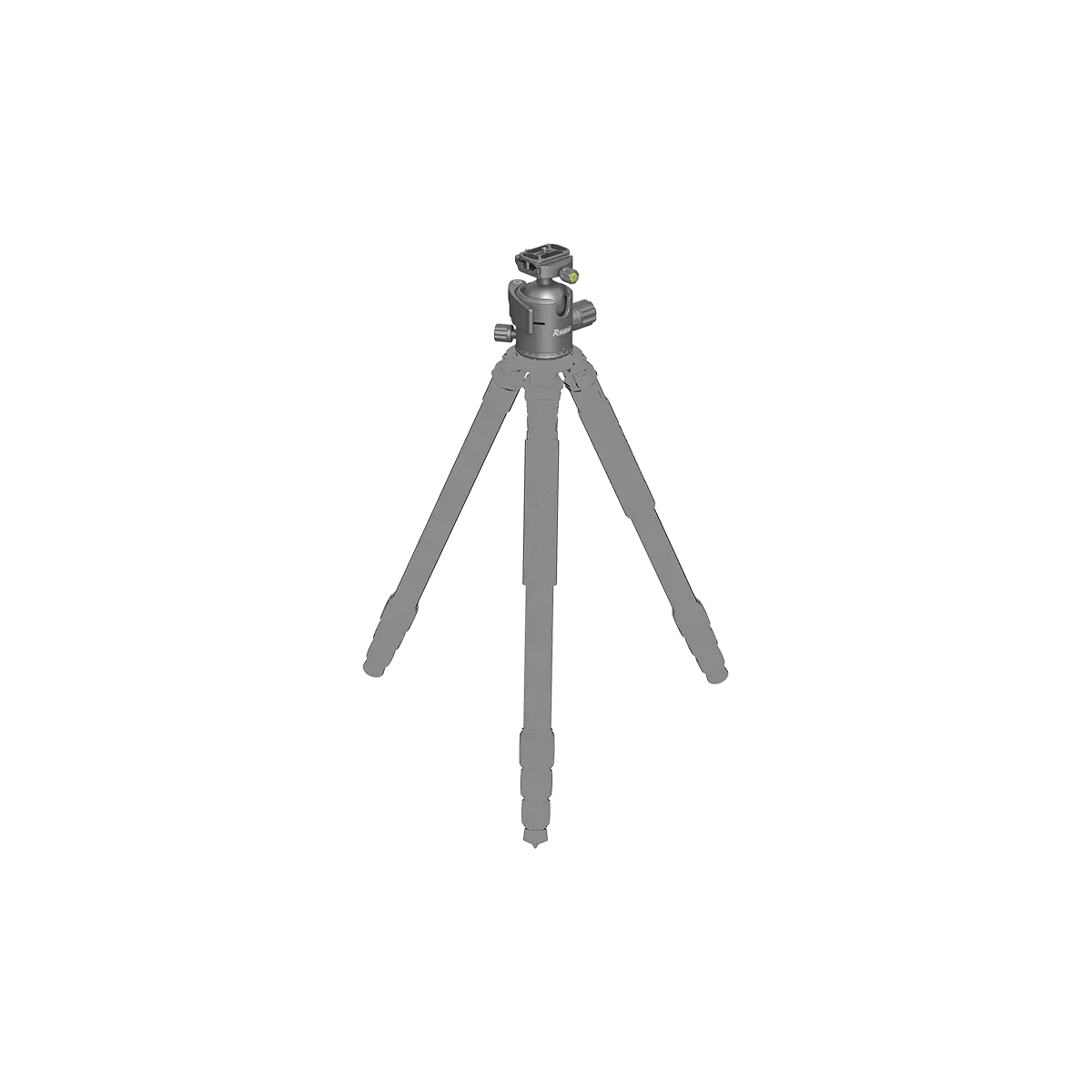

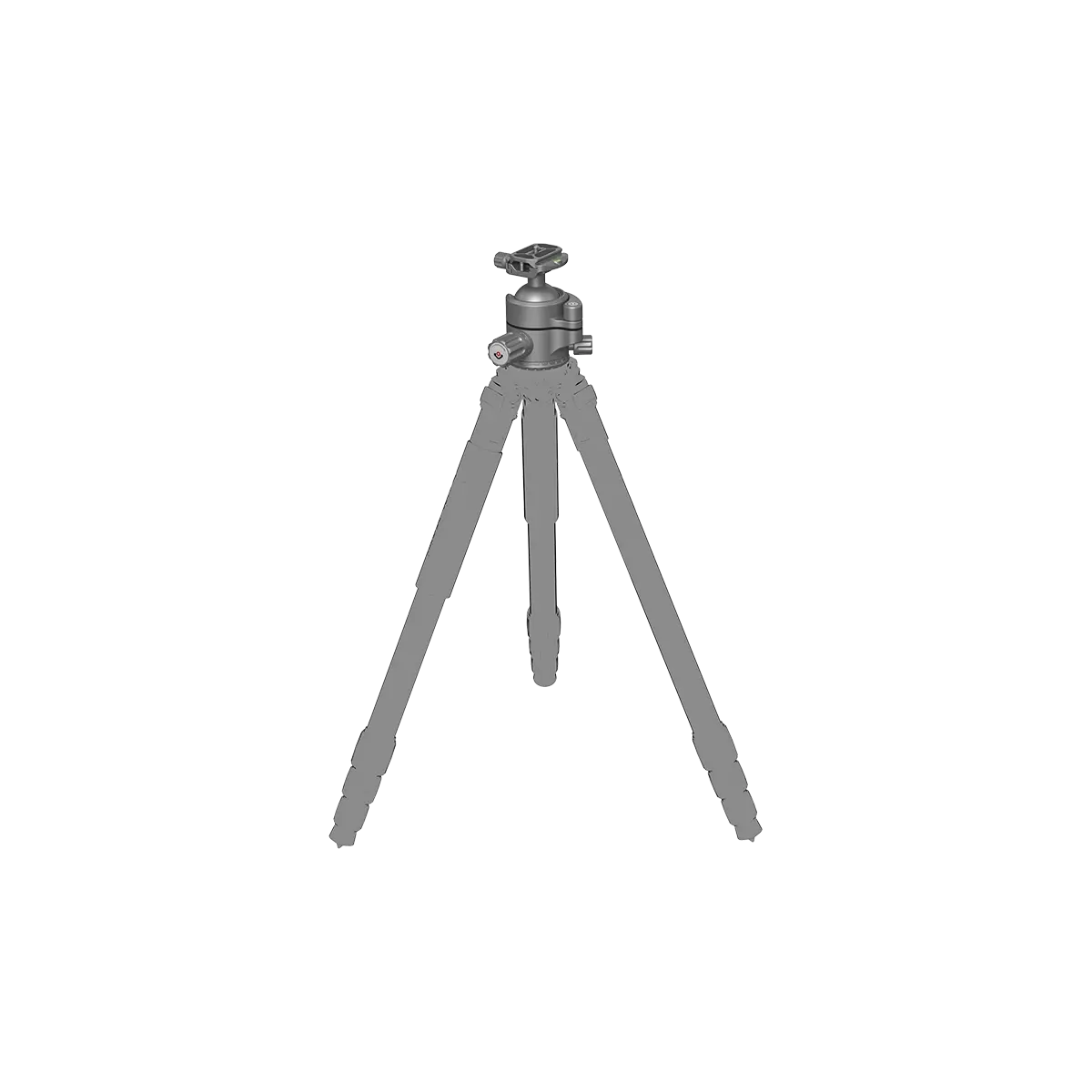

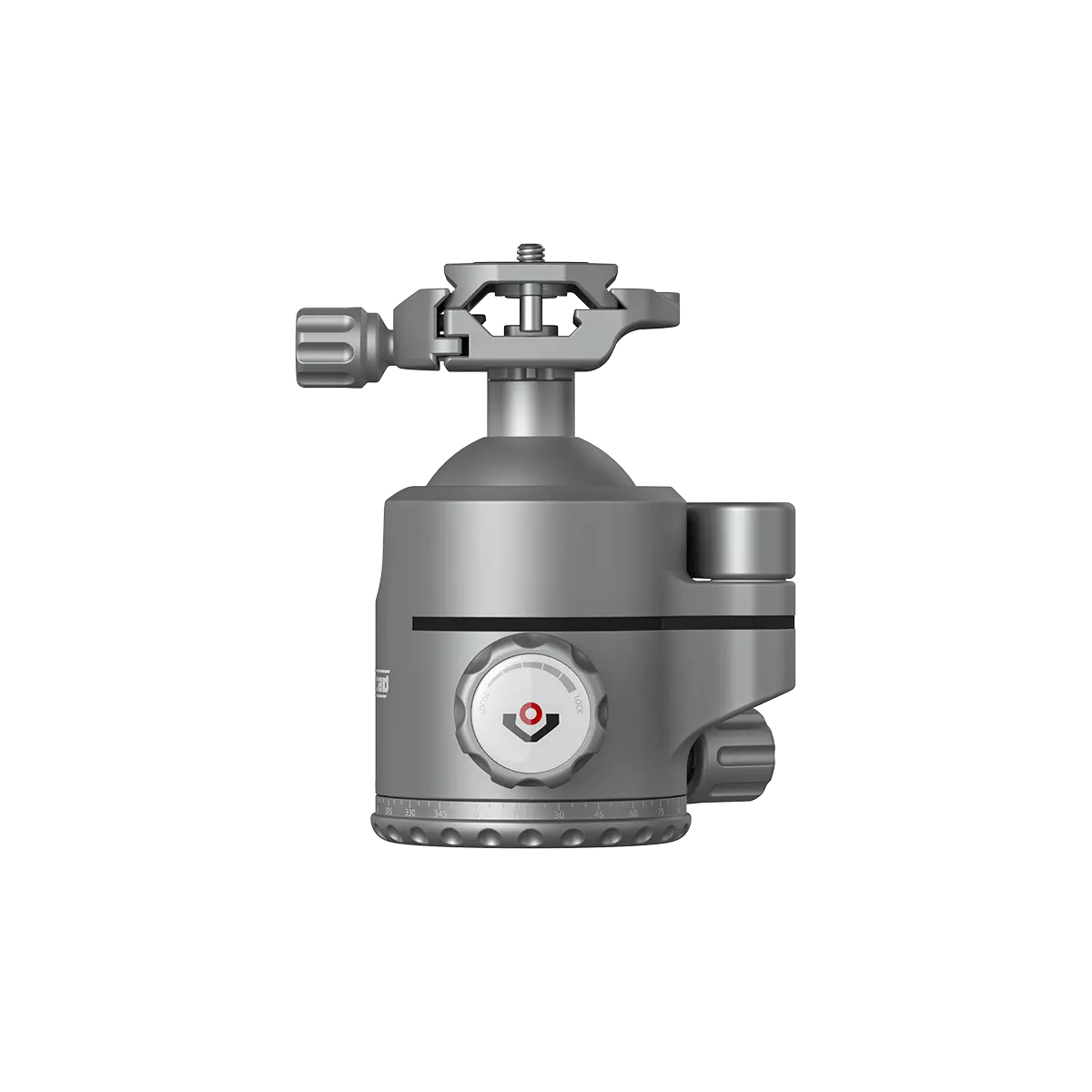

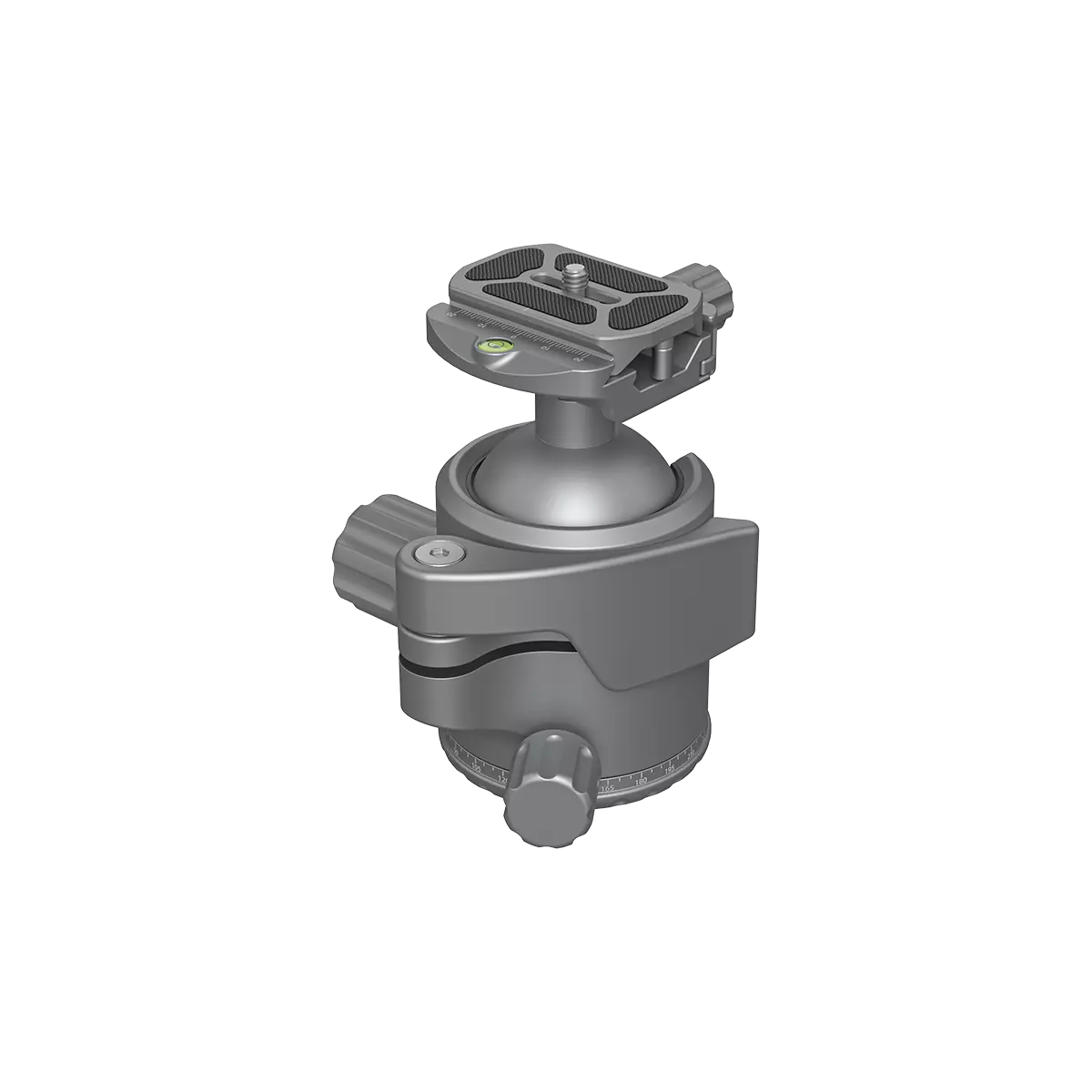

· Stable Tripod Head, 55 mm Diameter Ball Head, Max Load 30kg (66lbs), Fit for RSCF-T02 and RSCF-T03 Tripod

Specification

Specification	Details
Material:	6061-T6 Aluminum Alloy
Base Mount:	3/8'' Threaded Socket
Ball Diameter:	55 mm / 2.17 in
Base Diameter:	71 mm / 2.80 in
Height:	127 mm / 5.00 in
Weight:	886 g / 31.25 oz
Max Load:	30 kg / 66 lbs

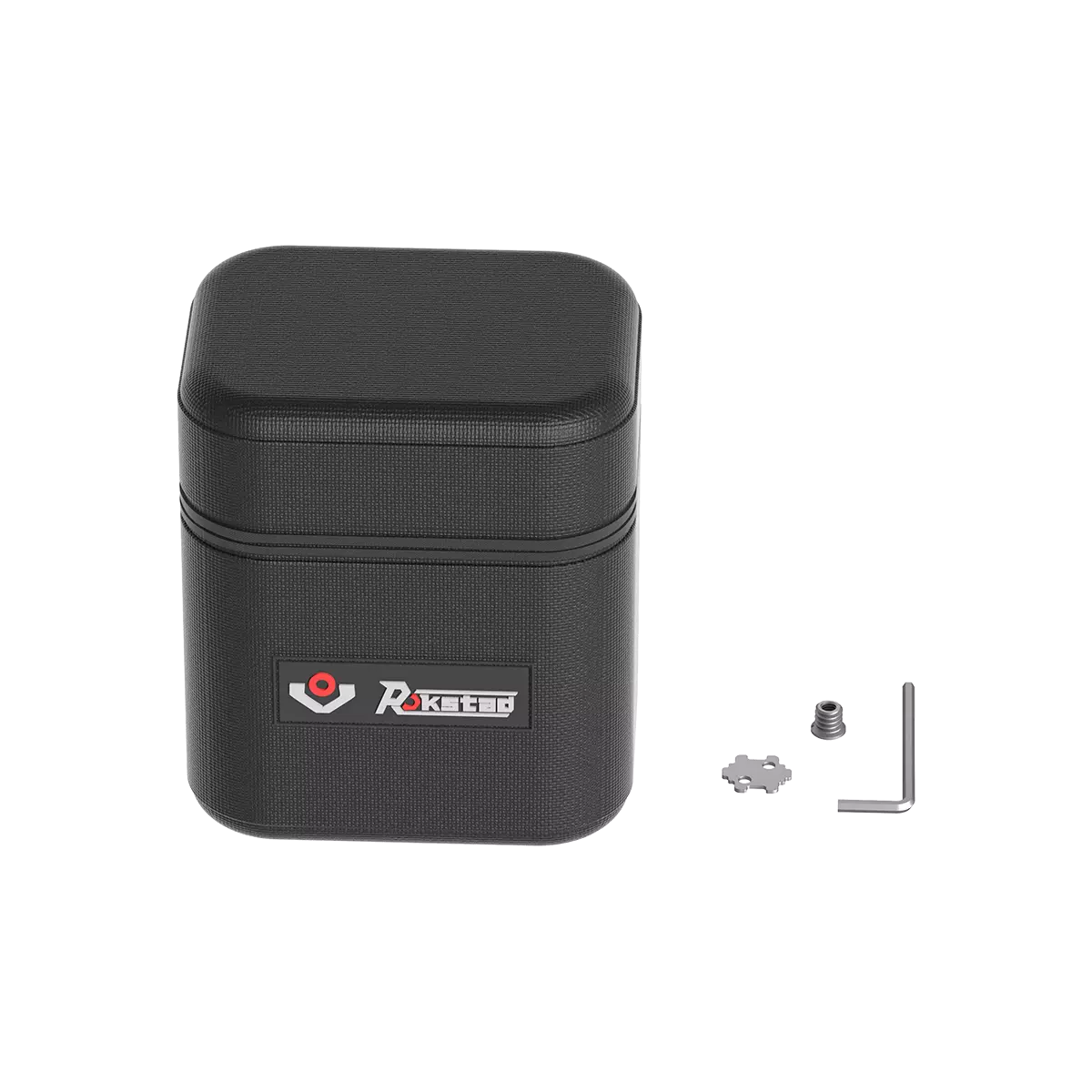

Items in the Package:	Hex Key, Quick Release Plate, D900 Storage Bag, etc.

Size

Download

RSRH-03 RoKstad 55mm Quick Stop Ball Head User Manual
