Feature

30mm Monotube, Fully-Multi Coated, Capped 1/2MOA Adjustment, Zero Re-set Feature

Etched Glass Illuminated Reticle, Wide Field of View, 4in Eye Relief, Power Ring Lever

Video



Specification

·Magnification: 1-4x

·Objective Lens Dia: 24mm

·Ocular Lens Dia: 35mm

·Ocular Lens Length: 60mm

·Exit Pupil: 11-5mm

·Optics Coating: Fully-multi coated

·Field of View: 105.8-26.2 feet@ 100 yds

·Eye Relief: 105-100mm (4.1-3.9in)

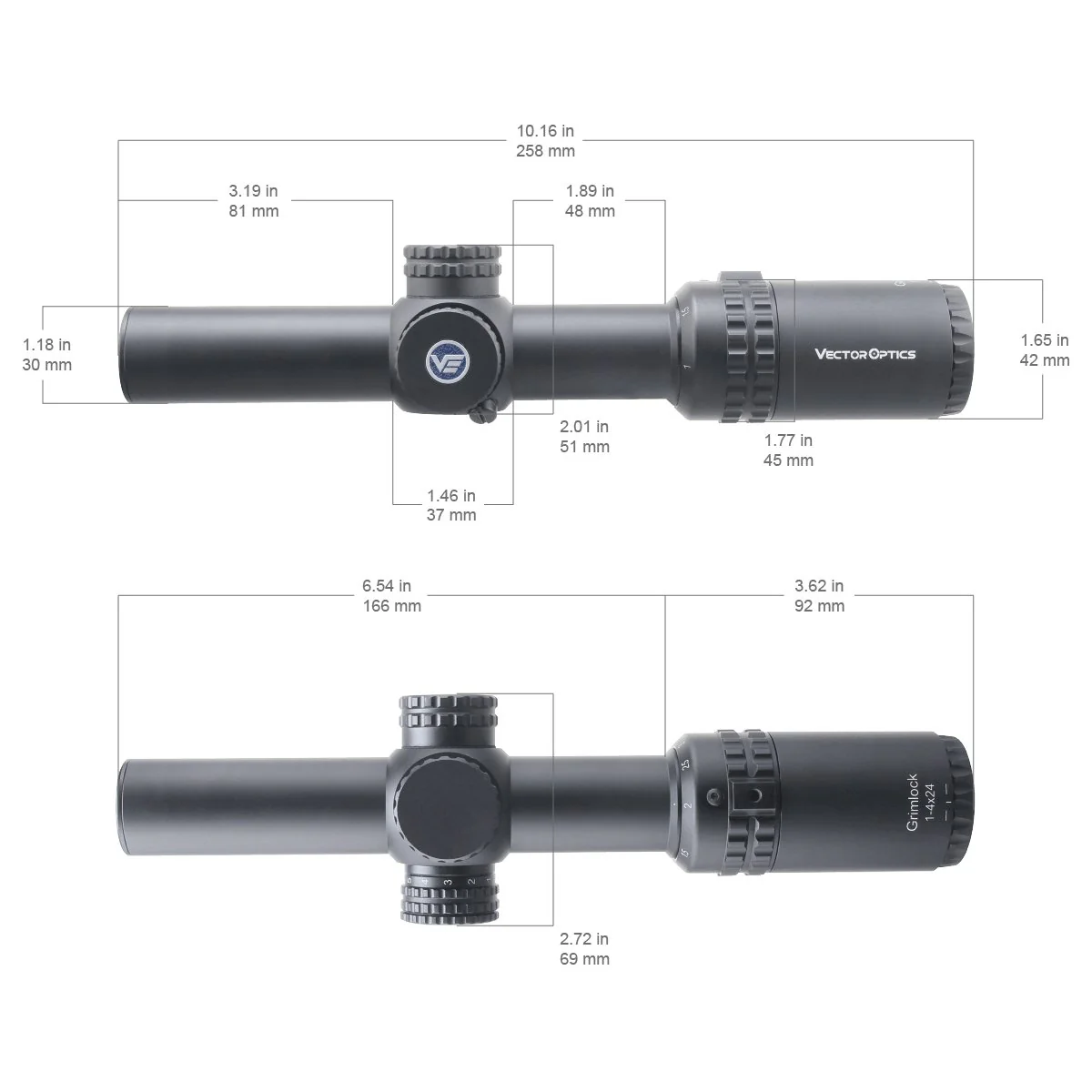

·Length: 260mm (10.2in)

·Weight: 480g (16.9oz)

·Tube Dia: 30mm monotube

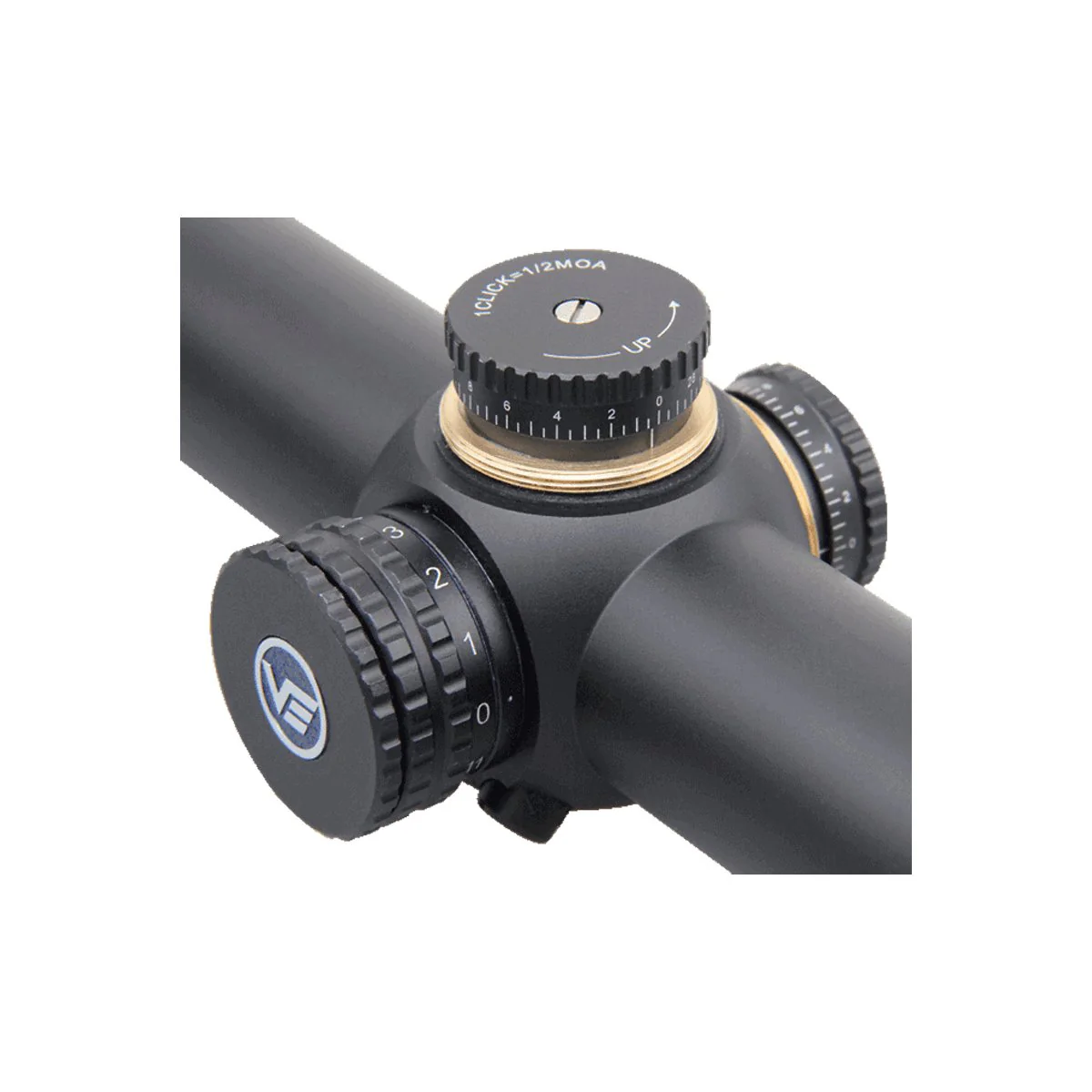

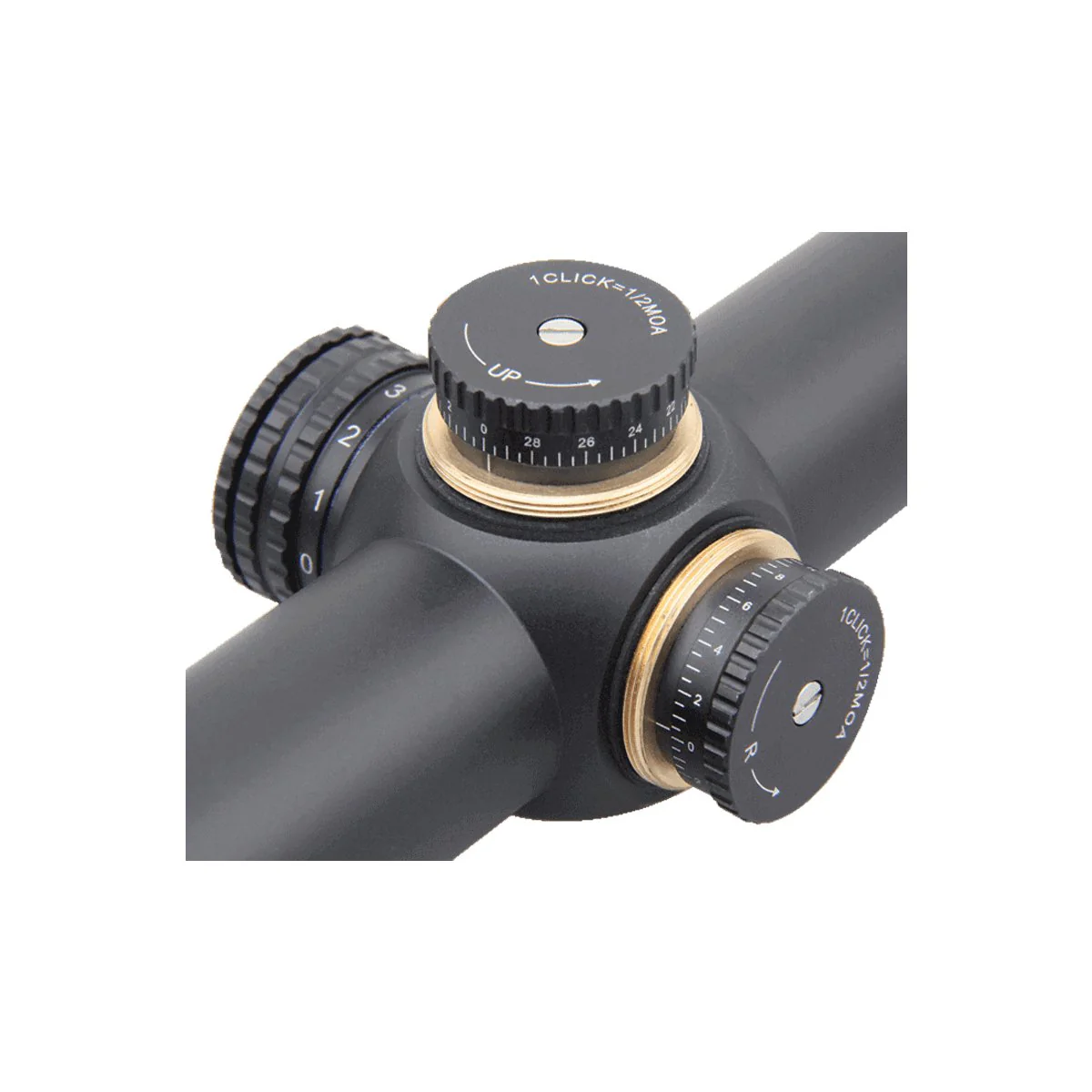

·Click Value: 1/2MOA

·Elevation Range: ＞60MOA

·Windage Rang: ＞60MOA

·Parallax Setting: 100 Yds

·Reticle: Etched glass VTC-DND

·Finish: Black Matte

·Illumination: 11 levels red

·Battery Type: CR2032

·Zero re-set: pull up the turret to spin freely, set the number 0 aligned with index dot and release the turret

·Shock tested to 750g, water resistant

·Fully nitrogen purged to eliminate any fogging of the lenses internally

·High quality 6061 T6 aircraft grade aluminum

·Diopter compensation from fast-focus eyepiece (+2 to -2)

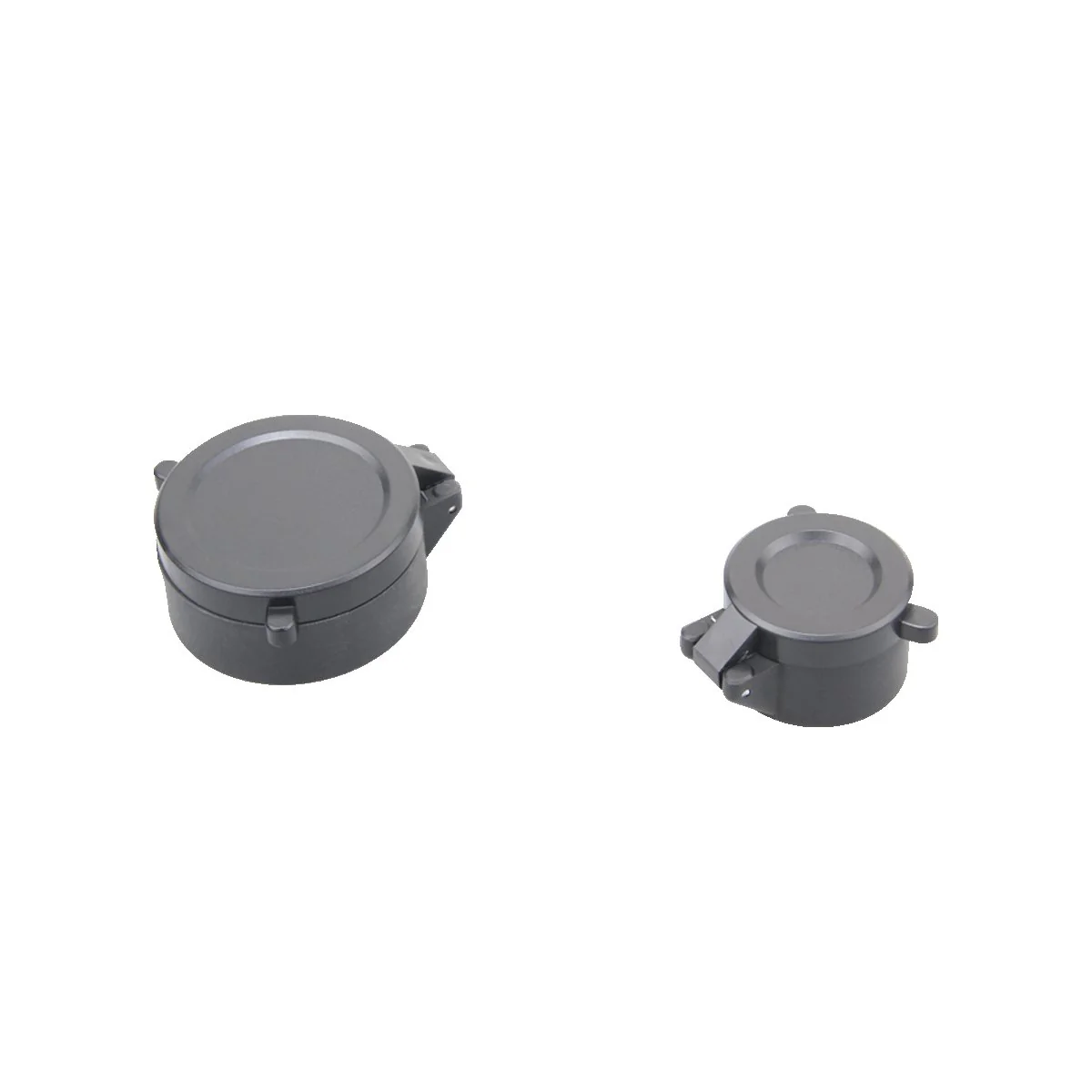

·Including items: spare exposed turret, 30mm weaver or dovetail rings, power ring lever mount, flip-up caps and cleaning cloth etc

Reticle
