Feature

· Versatile Reticle System: Multi-Reticle Setup Combines 2 MOA Dot, 64 MOA Circle and 82 MOA Crosshair for Rapid Aiming in Transitions

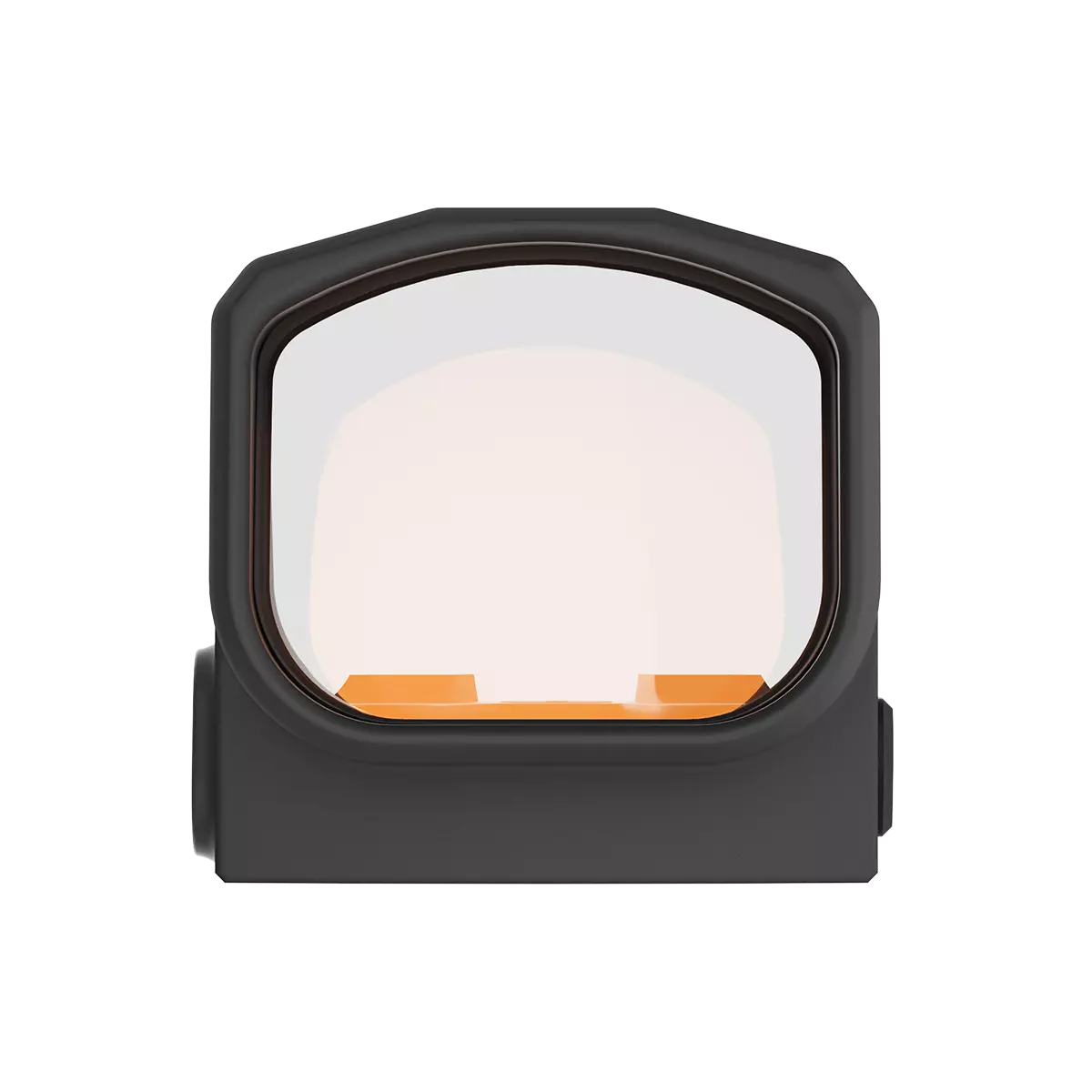

· Wide Field View: 24 × 29 mm Large Window Expands Field of View for Faster and More Accurate Target Transitions in Dynamic Shooting

· Rugged Alloy Construction: 7075-T6 Aluminum Housing Withstands 1500 G Shock and Supports Reliable Performance in Pistol Applications

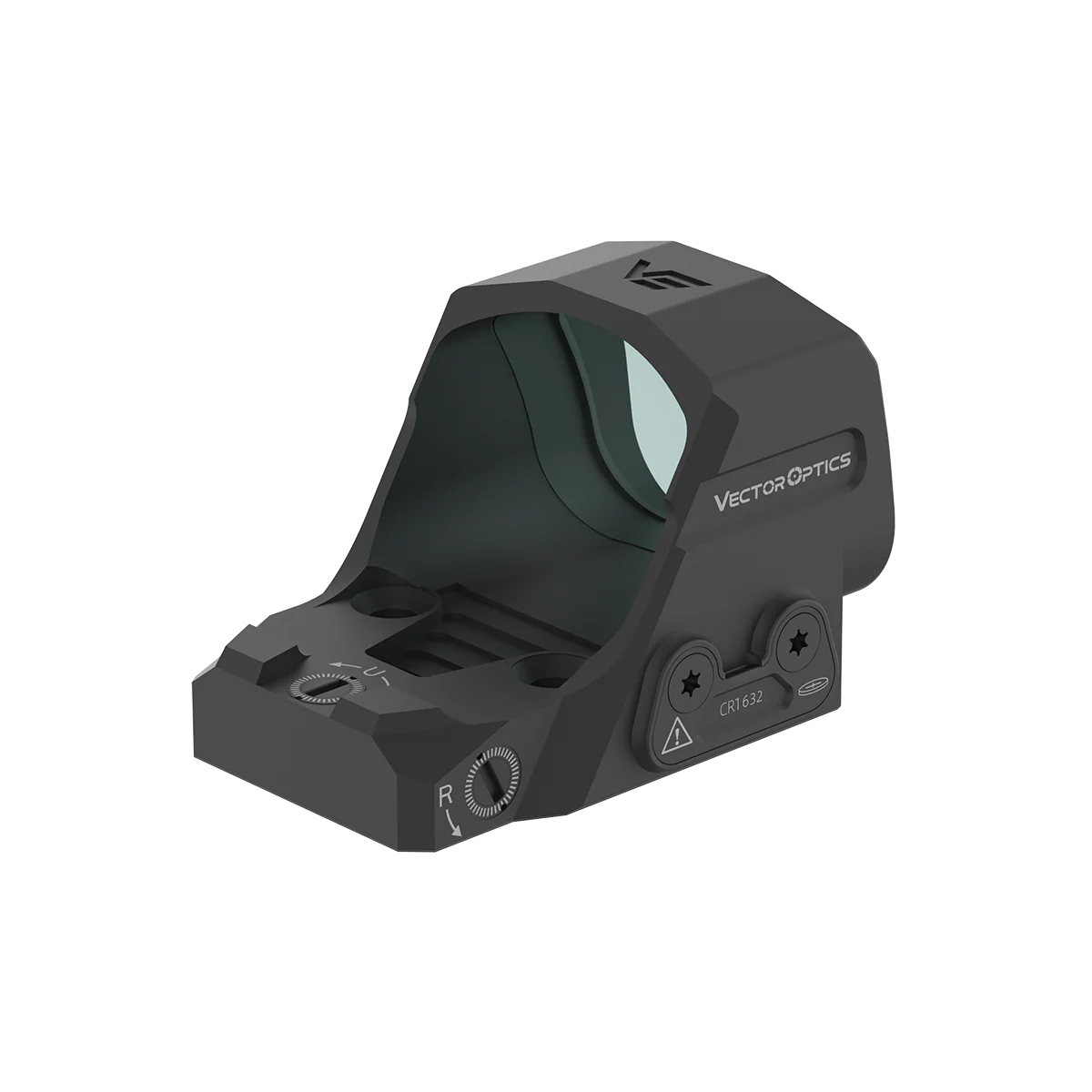

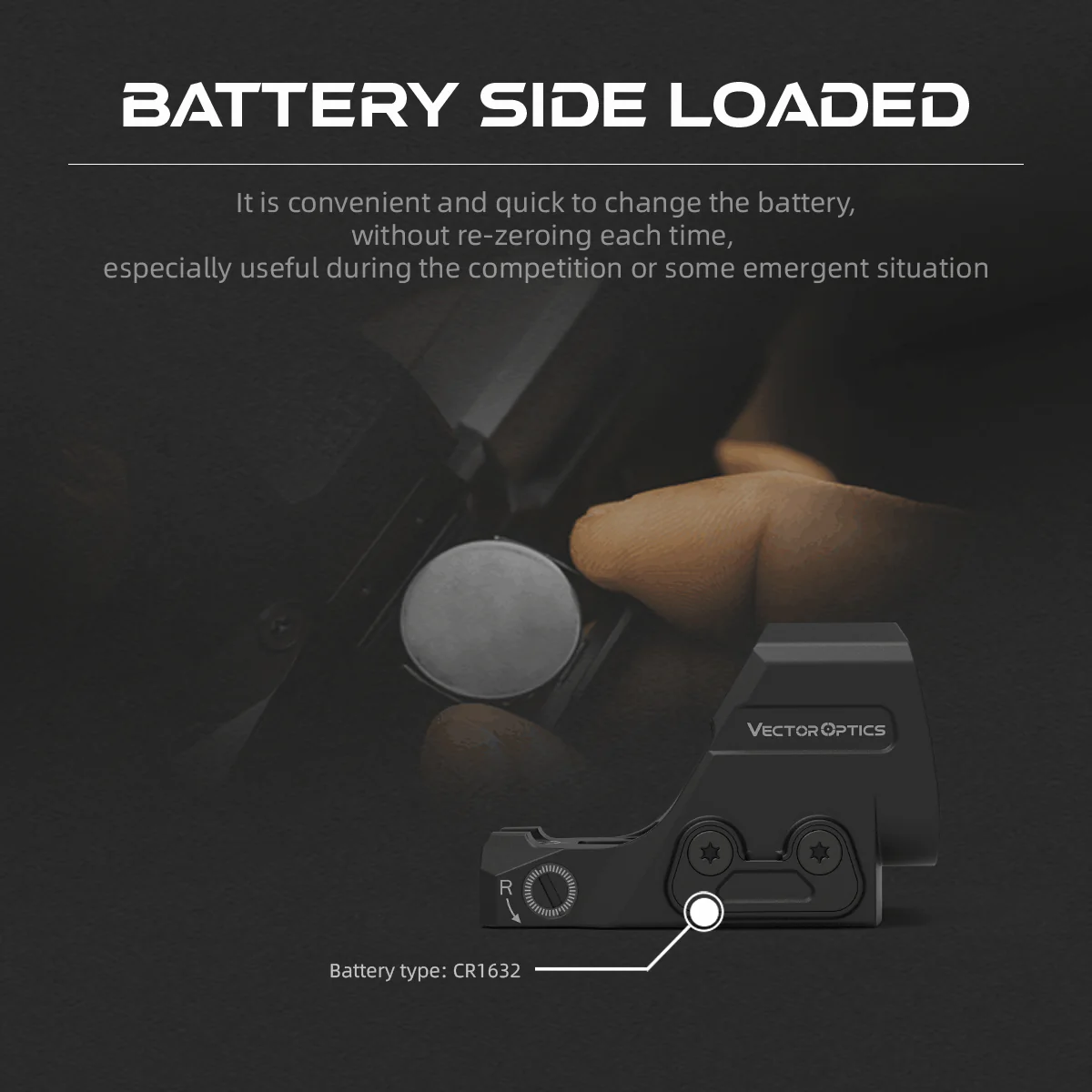

· Quick Battery Access: Side-Loading Design Enables Fast Replacement Without Losing Zero Reducing Downtime During Continuous Use

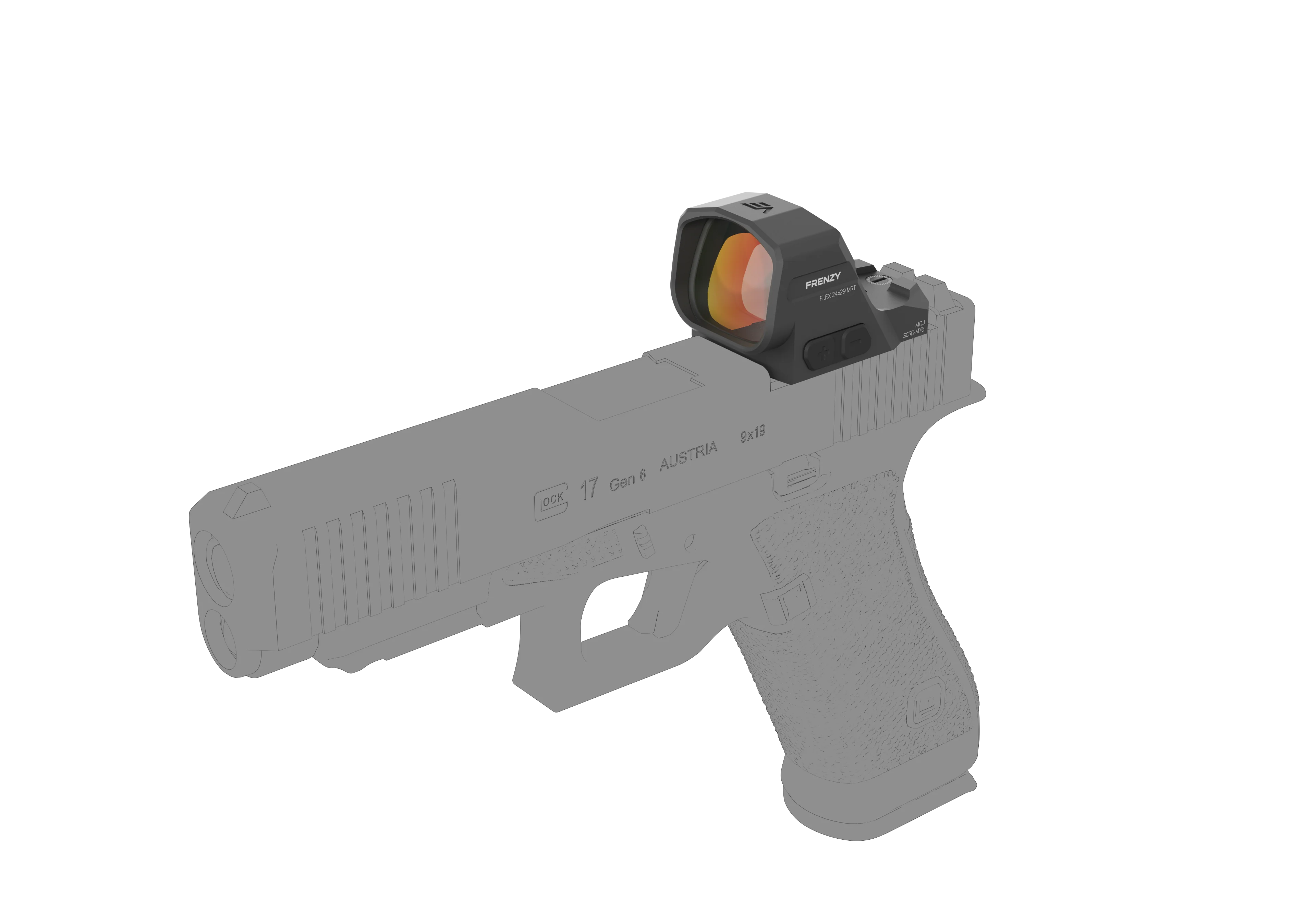

· Broad Platform Compatibility: MOJ Footprint Compatible w/ the RMR Standard Fits Pistols Glock® 17/19 MOS and CZ P-10 OR Platforms

Specification

See our Terminology Guide for detailed explanations of each specification.

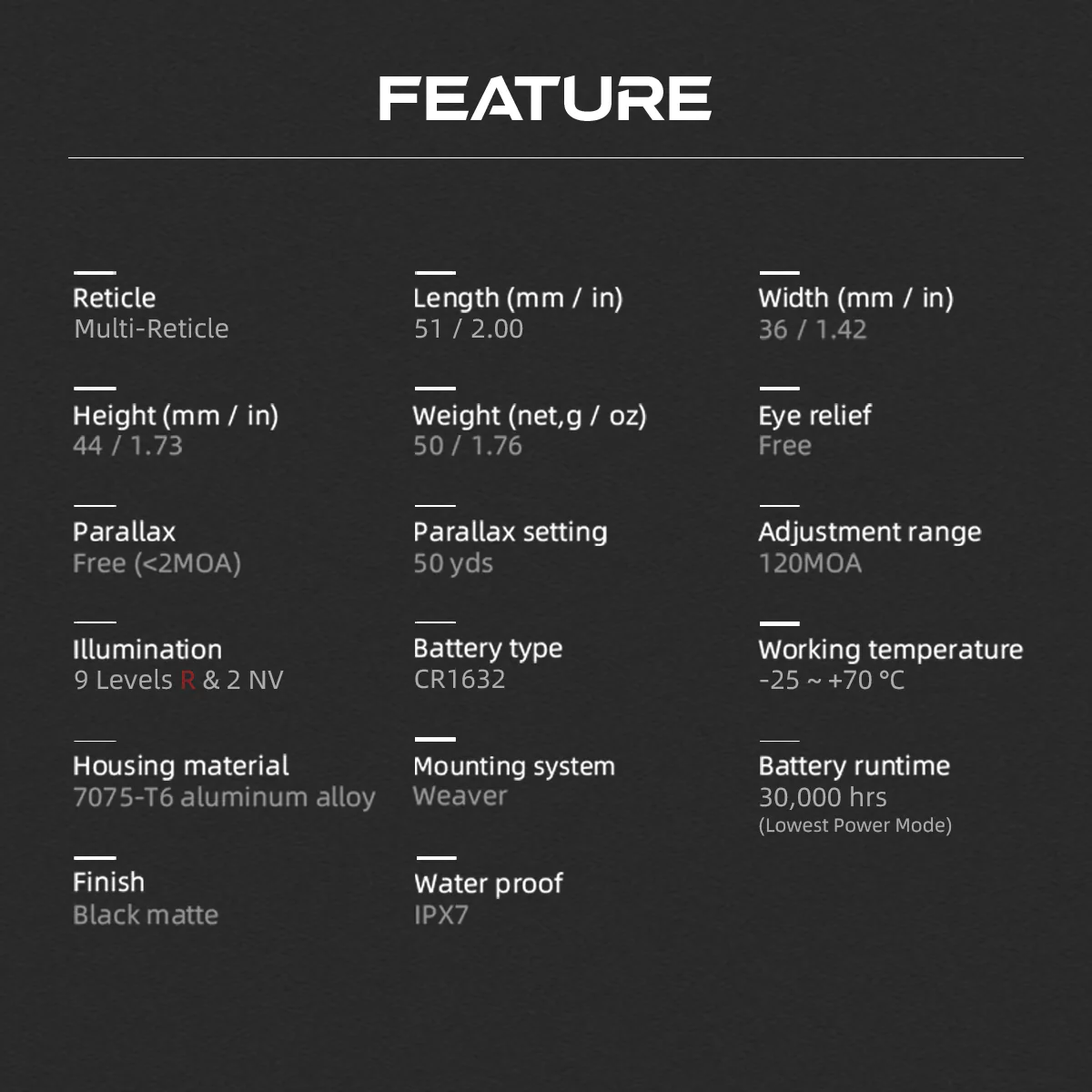

Specification	Details
Magnification:	N/A
Window Lens Size:	24x29 mm / 0.94x1.14 in
Parallax:	Free (≤2MOA)
Parallax Setting:	33 yards
Dot Size:	Multi-Reticle (2MOA Dot, 64MOA Circle & 82MOA Crosshair)
Dot/ Reticle Color:	Red
Sensor:	Motion Sensor
Click Value:	1 MOA
Elevation Adjustment Range:	≥ 100 MOA
Windage Adjustment Range:	≥ 100 MOA
Footprint:	MOJ
Mounting Rail:	Weaver
Illumination Setting:	9 Daytime & 2 Night Vision
Battery Type (Not Include):	CR1632
Battery Placement:	Side Loading
Waterproof:	IPX7
Shockproof:	1500 G
Working Temperature:	-25 ~ +70° C
Housing Material:	7075-T6 Aluminum Alloy
Mount Material:	6061-T6 Aluminum Alloy
Finish:	Matte Black
Weight (Net):	50 g / 1.76 oz (Without Mount)

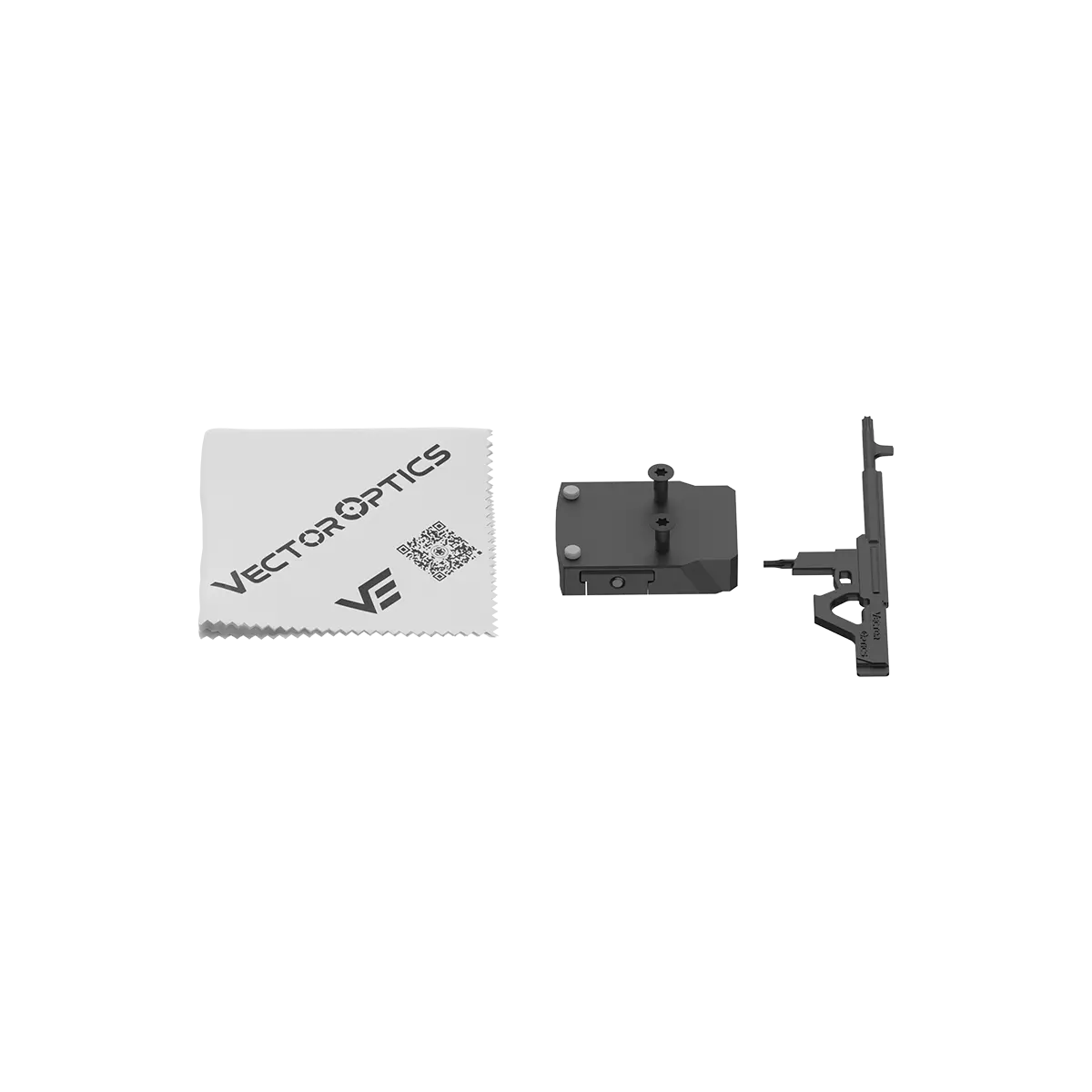

Items in the Package:	Weaver Mount, Vekey, Cleaning Cloth, etc.

Size

Reticle

2 MOA Dot (Precision Mode)

Minimal coverage for clear sight picture, ideal for accurate shots at mid to long range.

64 MOA Circle (Speed Mode)

Large, highly visible ring for fast target acquisition, perfect for close-range engagement and rapid transitions. (For IPSC/CQB)

82 MOA Crosshair (Reference Mode)

Wide, highly visible crosshair provides strong visual reference for fast alignment and improved situational awareness.

2 MOA Dot + 64 MOA Circle + 82 MOA Crosshair (Tactical Mode)

Combines precision center dot with circle framing and extended crosshair guidance for enhanced stability and target tracking in complex scenarios.

Footprint

MOJ Footprint

· Compatible Industry Standard: Trijicon RMR®

· Original Compatible Pistol Optics-Ready (O.R.) Model:  GLOCK®  Standard MOS Gen4/5 (w/ adapter plate), Walther®  PDP (w/ adapter plate), CZ P-10 OR / CZ Shadow 2 - Optics Ready (need an optics ready plate), TAURUS® G3 T.O.R.O (w/ adapter plate), M&P® M2.0 C.O.R.E. (w/ adapter plate), ect.

For more information about FOOTPRINT, please refer to the blog.

Download

SCRD-76 / M76 / GM76 Frenzy F3 Red Dot Sight Universal User Manual
