Feature

· Precision Holds for Long-Range Shooting: Etched VCT-20A Reticle with Christmas Tree Pattern for Fast Follow-Up Corrections

· Crystal-Clear Imaging: German Schott HT Glass, LaREE Lens, and VePRO FMC Ensure 90% Light Transmission for Bright and Clear Views

· Enhanced Adjustment Range: 30mm Monotube Extends Elevation Range to 20 MIL, with 4-Inch/100mm Long Eye Relief for Flexible Shooting

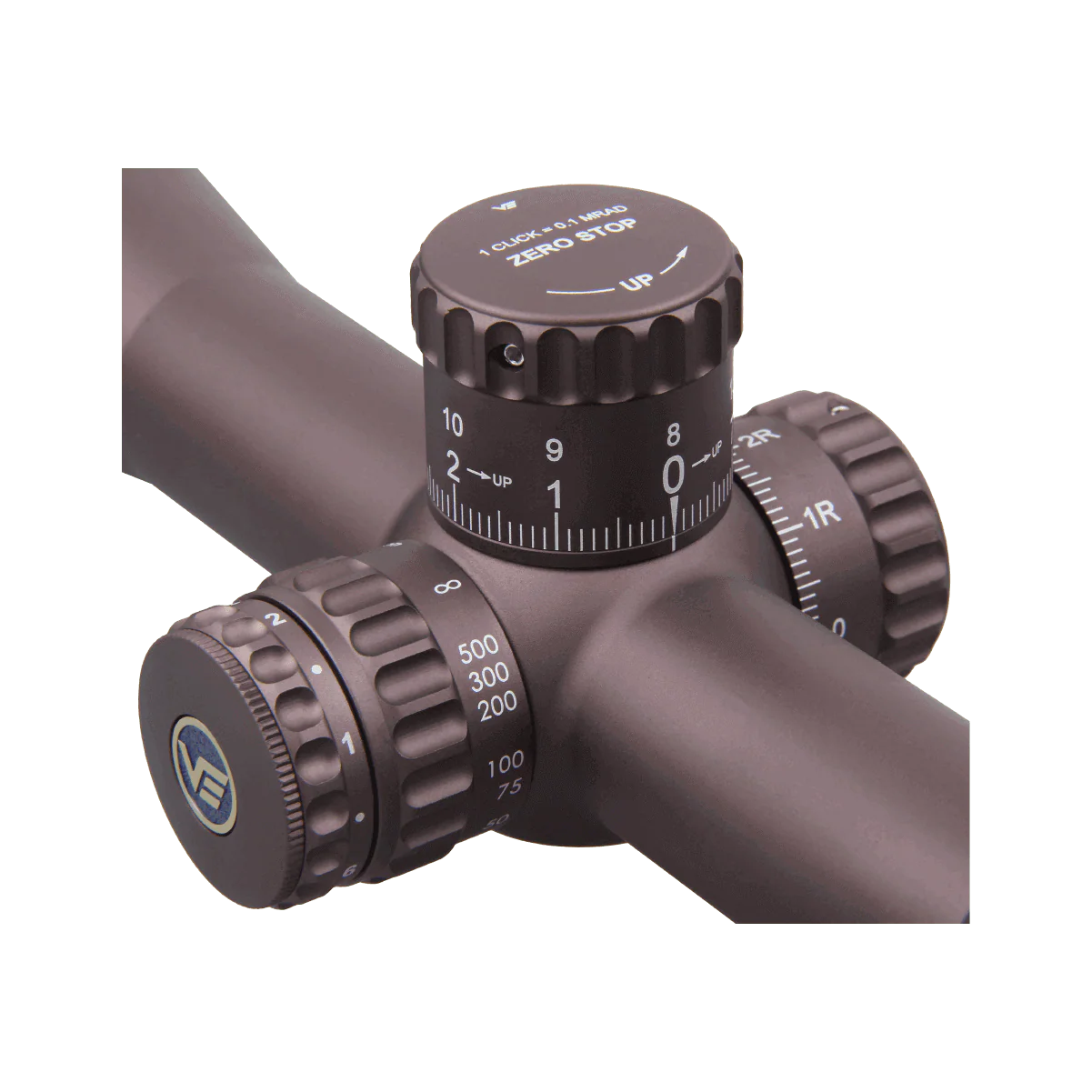

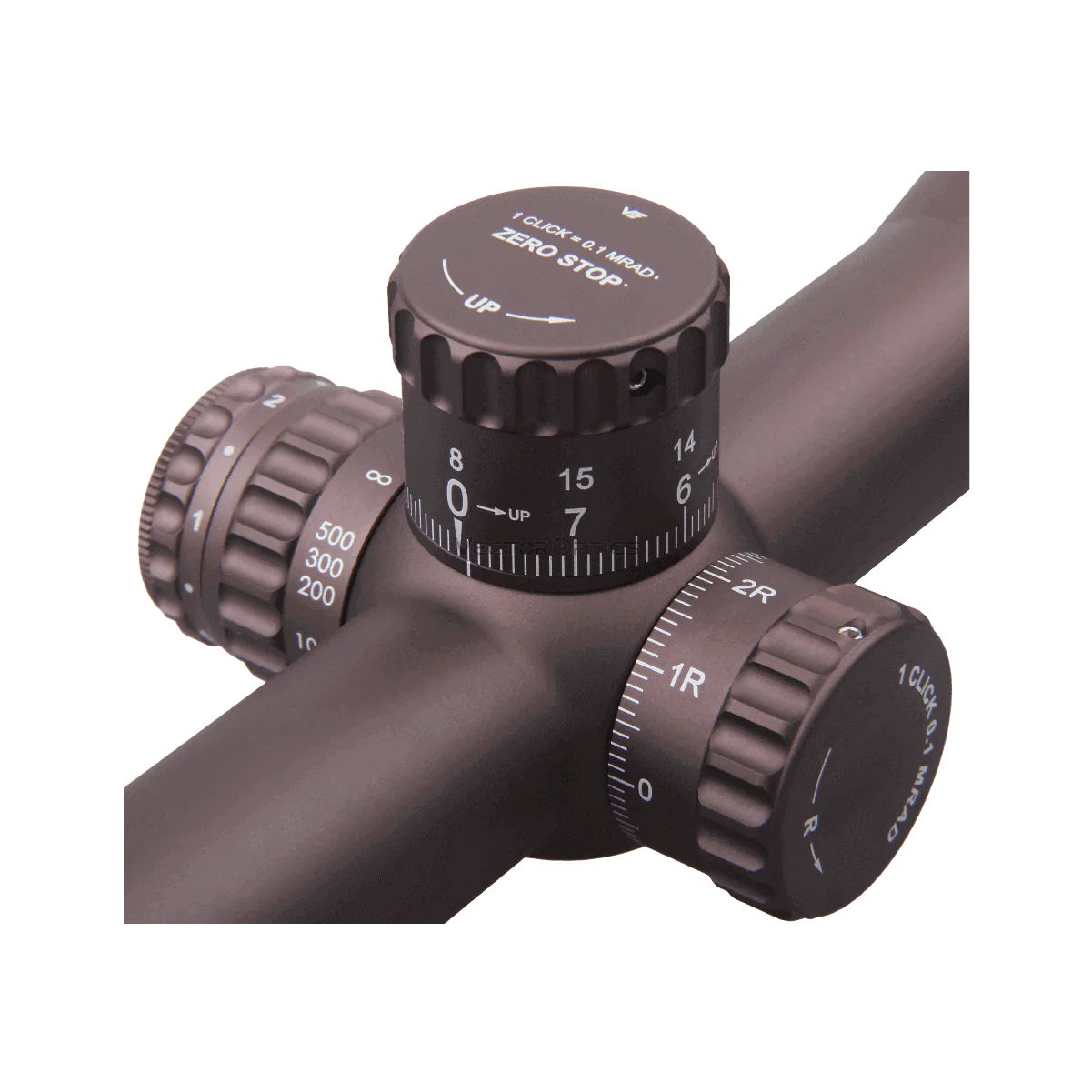

· Reliable Operation: Zero Stop for Effortless Return to Pre-Set Zero, with Turret Lock to Prevent Accidental Adjustments

Videos

Specifications

• Magnification: 4-24x
• Objective Lens Dia.: 50mm
• Ocular Lens Dia.: 42mm / 1.7in
• Ocular Lens Length: 54mm / 2.1in
• Exit Pupil: 9.5-2.1mm
• Optics Coating: Fully-multi coat diamond clear
• Field of View: 31.1-5.2 Feet @ 100 yards
• Field of View: 10.4-1.7M@ 100 meters
• Eye Relief: 100mm / 4.0in
• Length: 370mm / 14.6in
• Weight: 690g / 24.3oz
• Tube Dia.: 30mm Monotube
• Click Value: 1/10 MIL
• Elevation Range: >20MIL (zero-stop)
• Windage Range: >20MIL (turret lock)
• Parallax Setting: 100 yards
• Side Focus: 15 Yds to infinite
• Reticle: Etched glass VCT-20A
• Illumination: 6 gear
• Battery Type: CR2032
• Shock tested to 750g, IP67 water proof at 1m
• Fully nitrogen purged to eliminate any fogging of the lenses internally
• Turret lock system. Come with zero re-set feature
• High quality 6061 T6 aircraft grade aluminum
• Focus mark: 15, 20, 30, 50, 75, 100, 200, 300, 500 and infinite
• Diopter compensation from fast-focus eyepiece (+2 to -3)

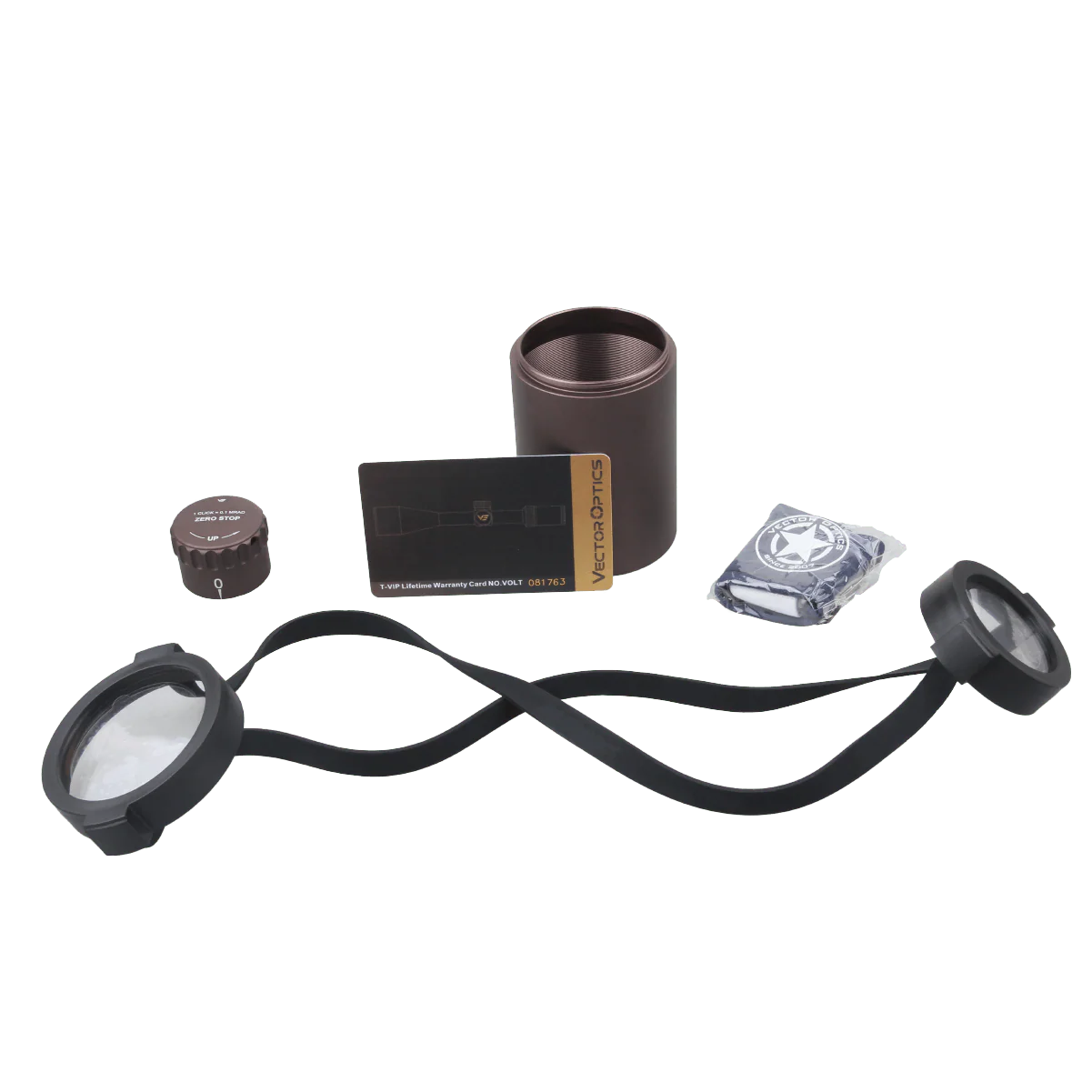

• Including items: 30mm picatinny high rings, instruction, DIY spare elevation turret, lens caps, sunshade and cleaning cloth etc.

Reticle



Product Downloads



Services



Compatible Gun Type

For Long-Range: Tikka T1x / T3 / T3x (.22LR / .308), Remington 700 / 783 (.223), Sako, Anschutz, Howa
