Feature

· Features VAS™ Series X-MOD Interface Supporting Red Dot Plates, Picatinny Rails and Modular Attachments with Full System Compatibility

· 34mm Rings, 24 mm / 0.95 in & 28 mm / 1.10 in & 32 mm / 1.25 in Center Height, Optimized for Stable Optical Alignment, Balanced Rifle Setup, and Consistent Shooting Performance

· 5-Axis CNC Machined 7075-T6 Aluminum Delivers Maximum Rigidity, Precise Dual-Ring Alignment, and Reliable Recoil Resistance Up to .50 BMG

· 20μm Black Anodized Finish Provides Enhanced Scratch Resistance, Corrosion Protection, and Long-Term Durability in Harsh Environments

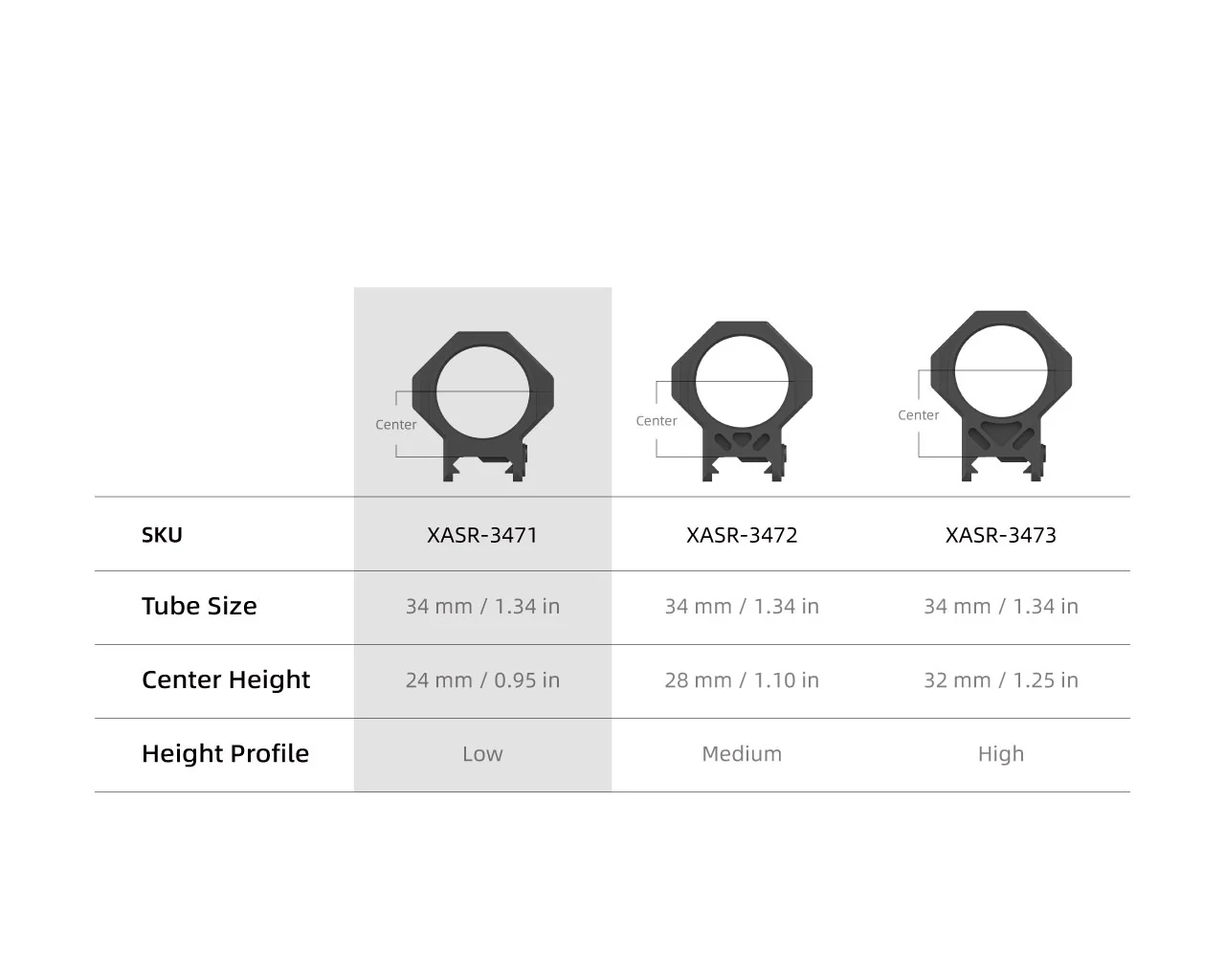

Specification

Specification	Details
Ring Dia:	34 mm / 1.3 in
Height:	55.8 mm / 2.2 in & 59.4 mm / 2.3 in & 63.3 mm / 2.5 in
Central Height:	24 mm / 0.95 in & 28 mm / 1.10 in & 32 mm / 1.25 in(Bottom to Center)
Width:	52 mm / 2.0 in
Material:	7075-T6 Aluminum Alloy
Weight:	70 g / 2.5 oz & 77 g / 2.7 oz & 82 g / 2.9 oz
Ring Caps Torque:	20 in·lbs (2.3 N·m)
Clamp Torque:	MAX 50 in·lbs (5.6 N·m) | 25 in·lbs (2.8 N·m) Per Screw ×2
Mount:	Picatinny
Finish:	Black Matte
Items in the Package:	T15 Torx Wrench
